HC1002

HC1002

HEALTHCARE

A germicidal air steriliser designed for continuous operation, effectively reducing the concentration of microorganisms such as viruses, bacteria, fungal spores, and more in the air. This luminaire is equipped with a mechanical filter and a working time counter for added convenience. It offers an impressive efficiency rate of up to 38 m³/h, making it suitable for various indoor environments where air quality is a priority. Ideal for use in healthcare facilities, offices, and homes, this steriliser ensures a cleaner and healthier atmosphere.

  • Materials: Powder painted housing made of steel sheet (white color in standard), internal reflector made of anodized, polished aluminum of high purity to increase the effectiveness of neutralization. The luminaire is equipped with two mechanical filters and working time counter. Power cord for versions stand and stand mobile.

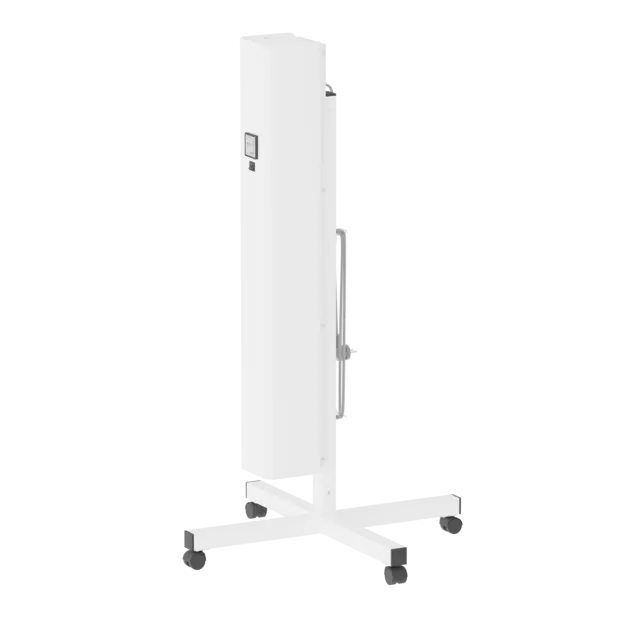

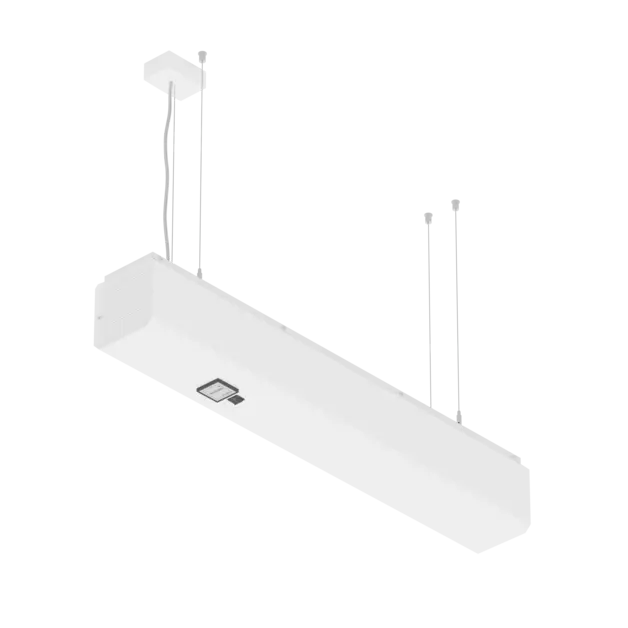

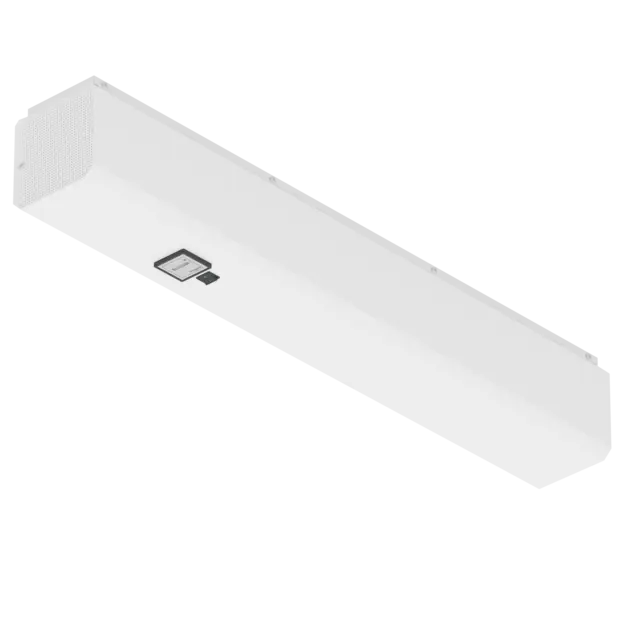

  • Installation: Ceiling mounted, wall mounted, suspended, on stand (only 2x15W, 3x15W versions)

HC1002 | Advanced UV-C Air Sterilization Luminaire

The HC1002 is a state-of-the-art UV-C air sterilization luminaire designed to enhance air quality in healthcare and public environments.

Utilising UV-C radiation, it effectively reduces airborne microorganisms, including viruses, bacteria, and fungal spores, ensuring a safer and healthier indoor atmosphere.​

🔍 Key Features:

Continuous Air Purification: Operates continuously to maintain low concentrations of airborne pathogens, supporting infection control protocols.​

Efficient UV-C Technology: Equipped with high-purity anodized aluminum reflectors to maximize UV-C radiation efficiency for effective microorganism neutralization.​

Dual Mechanical Filtration: Incorporates two mechanical filters to capture larger particles, enhancing overall air purification performance.​

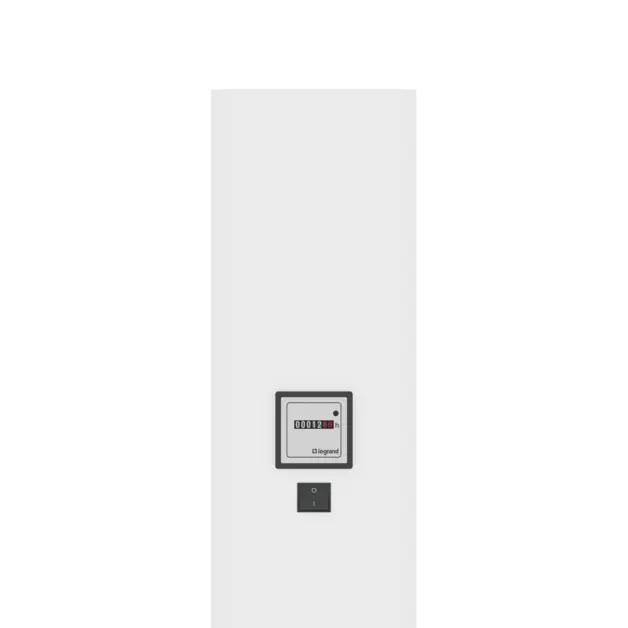

Smart Maintenance Monitoring: Features a working time counter to indicate when UV-C lamps (every 8,000 hours) and filters require maintenance, ensuring optimal operation.​

Quiet Operation: Designed with low-noise fans (~36–45 dB) to maintain a peaceful environment in sensitive areas.​

Flexible Installation Options: Supports wall-mounted, ceiling-mounted, suspended, and stand-mounted configurations to suit various room layouts.​

Certified Safety Compliance: Meets CE and HACCP+ standards, ensuring safety and reliability in healthcare settings.

🏥 Ideal Applications:

Perfect for use in hospitals, clinics, laboratories, treatment rooms, operating theatres, reception areas, and other spaces where air quality is critical.​

📐 Technical Specifications:

UV-C Lamp Power: 15W or 30W​

Number of UV-C Lamps: 2 or 3

Fan Power: 10W (15W version), 21W (30W version)​

Airflow Rate: 119 m³/h (15W version), 164 m³/h (30W version)

Noise Level: ~36 dB (15W version), ~45 dB (30W version)​

Coverage Area: Up to 110 m³, depending on model​

Housing Material: Powder-coated steel sheet in white​

Reflector Material: Anodized, polished aluminum​

Power Supply: 220–240 V​

Mounting Options: Wall-mounted, ceiling-mounted, suspended, stand-mounted (for specific versions)

Protection Rating: IP20​

Certifications: CE, HACCP+​

Enhance your facility's air quality with the HC1002, delivering reliable and efficient air sterilization for health-critical environments.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE (W) LUMINAIRE (llm/W) LENGTH (L) WIDTH (W) HEIGHT (H)
15
n/a
 1002 147 175
30
n/a
 1462 147 175
