SC1008 This LED luminaire is designed for universal application, crafted with energy-efficient LEDs that offer high luminous efficacy from trusted manufacturers. It features a power supply with a power factor of cos ϕ > 0.95, enhancing its energy-saving capabilities. Available in a variety of housing colours, this luminaire can complement any interior decor. The 600x600 version is specifically intended for installation in suspended ceilings with a visible supporting structure, while the 600x600 G/K version comes equipped with springs for secure mounting in plasterboard ceilings, making it a versatile choice for various lighting needs.

  • Materials: Frame made of electrostatically painted sheet aluminium (standard – grey). Frame can be painted in any RAL color. White housing made of sheet steel. Microprismatic or OPAL diffuser.
  • Installation:

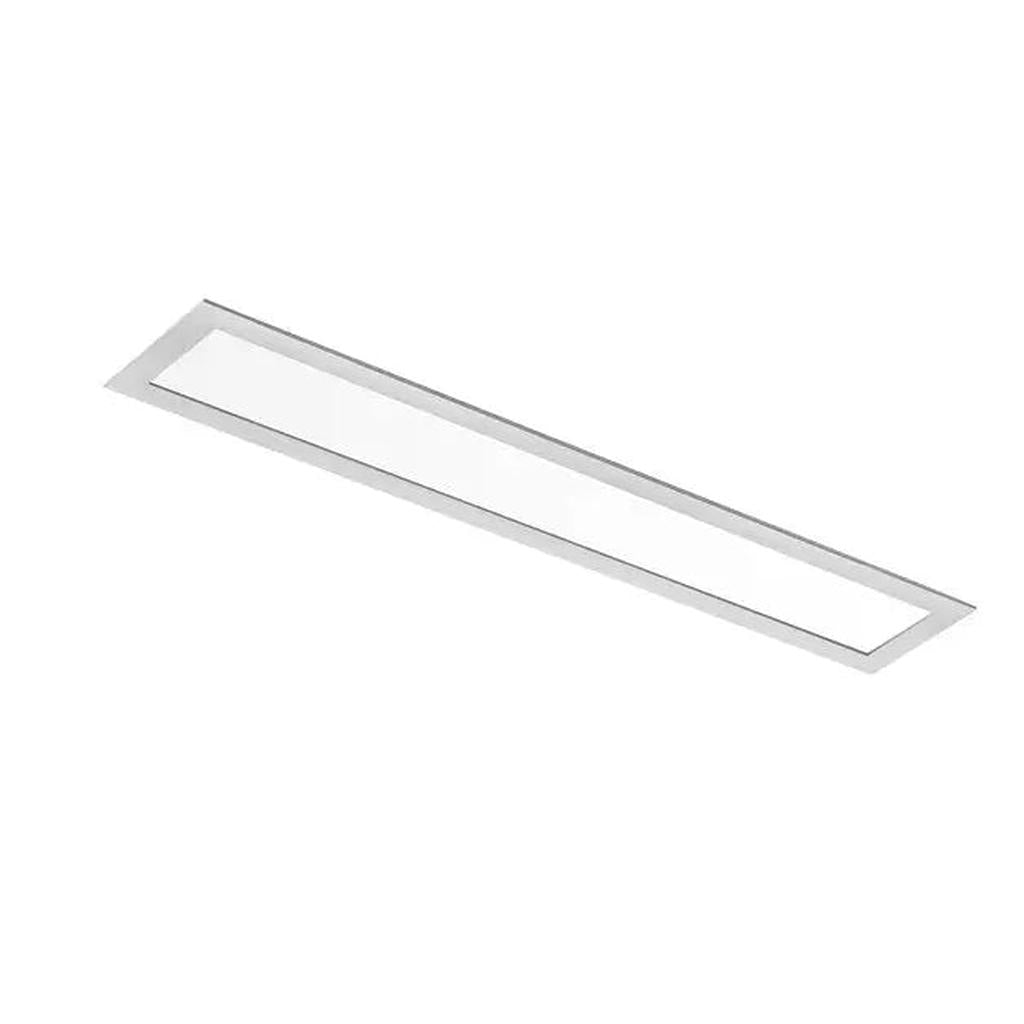

SC1008 | Recessed Linear LED Luminaire for Continuous Modular Installations

The SC1008 is a recessed linear LED luminaire designed for seamless integration into ceilings, creating continuous lines of high-efficiency lighting.

Its minimalistic form and precise light distribution make it ideal for modern commercial and architectural environments.

🔍 Key Features:

  • Recessed Minimalist Design: Flush-mounted installation for clean, uninterrupted ceiling lines and a modern aesthetic.​
  • High Luminous Efficacy: Provides up to 150 lm/W, ensuring bright illumination with low energy usage.​
  • Continuous Line Capability: Designed for modular, continuous runs, allowing creation of extended linear lighting systems without visual breaks.​
  • Durable Construction: Features a powder-coated steel body with an opal PMMA diffuser, ensuring long-lasting performance and uniform light output.​
  • Flexible Driver Options: Available with ON/OFF or DALI drivers; optional emergency module enhances versatility for commercial installations.​
  • Certified Quality: CE-compliant, meeting strict standards for safety and operational reliability.​

🏢 Ideal Applications:

  • Office buildings and open-plan workspaces
  • Retail stores and shopping centres
  • Hotel lobbies and reception areas
  • Educational and healthcare facilities
  • Architectural public spaces​

📐 Technical Specifications:

  • Power Consumption: 22W / 34W / 51W​
  • Luminous Flux: 2,850 lm / 4,450 lm / 6,650 lm​
  • Luminous Efficacy: Up to 150 lm/W​
  • Colour Temperature: 3000K or 4000K​
  • CRI: >80​
  • MacAdam SDCM: 3​
  • UGR: <19 (depending on installation configuration)​
  • Driver Options: ON/OFF, DALI​
  • Emergency Module: Optional (1h emergency backup available)​
  • Protection Rating: IP40 (below ceiling), IP20 (above ceiling)​
  • Impact Resistance: IK04​
  • Class of Protection: Class I​
  • Housing Material: Steel (powder-coated)​
  • Diffuser Material: PMMA (opal)​
  • Mounting Options: Recessed into plasterboard or modular ceilings (continuous line-ready)​
  • Dimensions: 595mm / 1175mm / 1455mm lengths available​
  • Weight: ~2.5–4.2 kg (depending on model)​

⚡ Quick takeaway:

  • The SC1008 is your modular recessed powerhouse, perfect for projects needing uninterrupted lighting runs that look sleek and professional without visual "noise."
  • Architects love it, lighting designers specify it, project managers approve it because it's fast to fit. 🎯

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE LUMEN LENGTH (L) WIDTH (W) HEIGHT (H)
17

1,780 llm

 1218 91 82
24

2,730 llm

 918 91 82
31
3,670 llm
 1218 91 82
CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
