LL1002

LL1002

DECORATIVE

The LL1002 luminaire has been updated to a new version featuring an IP44 protection rating. This modification introduces a refined aluminium profile in place of steel sheets and includes the option for inline installation. Its design allows it to fit snugly into corners, making it an ideal solution for illuminating corridors, staircases, and other areas with limited space. This versatile luminaire combines practicality with aesthetics, ensuring effective lighting in compact environments.

  • Materials: Electrostatically painted aluminum profile, microprismatic diffuser (MPRM) made of PMMA or opal diffuser (OPAL) made of polycarbonate.
  • Installation:

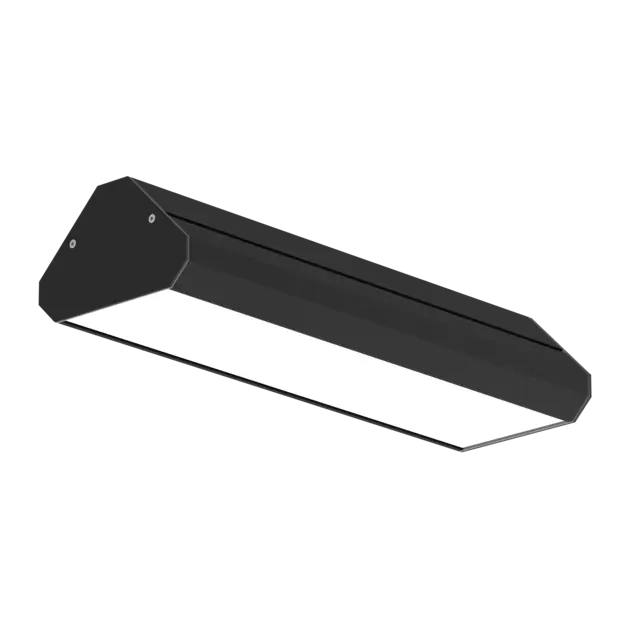

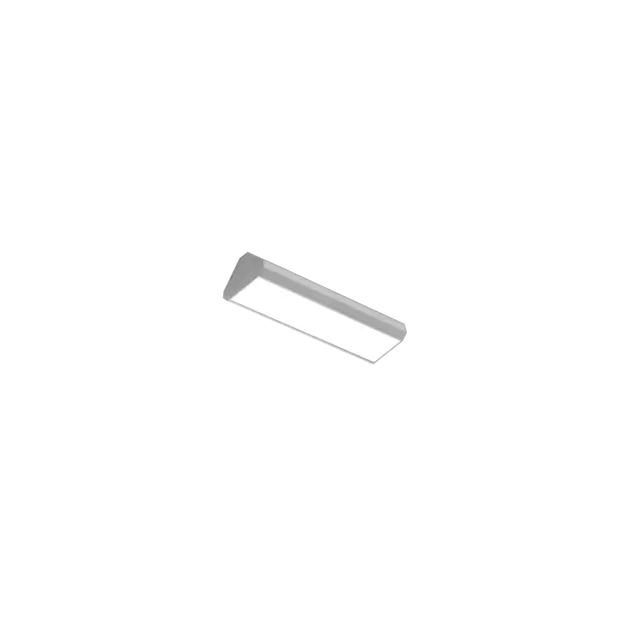

LL1002 | IP44 Aluminium Linear Suspended LED Pendant

The LL1002 is a sleek, suspended linear LED luminaire designed for environments requiring both high performance and a degree of moisture resistance.

Its minimalist profile and robust construction make it ideal for modern interiors where functionality meets refined aesthetics.​

🔍 Key Features:

  • Contemporary Design: Constructed from powder-coated aluminium, available in standard finishes of white, grey, or black. Custom RAL colours are available upon request.​
  • Moisture Resistance: Rated IP44, making it suitable for areas with occasional moisture exposure, such as bathrooms, kitchens, and utility spaces.​
  • Efficient Illumination: Equipped with integrated LED modules delivering up to 122 lm/W, ensuring bright and energy-efficient lighting.​
  • Optical Control: Features a microprismatic diffuser (MPRM) for uniform light distribution and glare reduction.​
  • Mounting: Designed for suspended installation, with an optional continuous line configuration for seamless lighting across larger spaces.​
  • Control Options: Available with ON/OFF or DALI drivers. Optional motion sensor and emergency module integrations.​

🏢 Ideal Applications:

  • Perfect for offices, conference rooms, receptions, commercial spaces, corridors, staircases, and bathrooms where modern design and efficient lighting are essential.​

📐 Technical Specifications:

  • Light Source: Integrated LED​
  • Power Consumption: 9–31W​
  • Luminous Flux: 880–3,780 lm​
  • Luminous Efficacy: Up to 122 lm/W​
  • Colour Temperature: 3000K or 4000K​
  • CRI: 80​
  • MacAdam SDCM: 3​
  • UGR: ≤19 (depending on optics)​
  • Driver Options: ON/OFF, DALI​
  • Emergency Module: Optional​
  • Motion Sensor: Optional​
  • Protection Rating: IP44​
  • Impact Resistance: IK04​
  • Class of Protection: Class I​
  • Housing Material: Powder-coated aluminium​
  • Diffuser Material: Microprismatic (MPRM)​
  • Dimensions: Length: 300 mm or 1165 mm; Width: 101 mm; Height: 64 mm​
  • Weight: 2.9 kg

The LL1002 combines sleek design with high-performance lighting, making it a versatile choice for enhancing modern interiors with both style and functionality.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE (W) LUMEN DIAMETER Ø HEIGHT (H)
9

950 llm

 250 100
