• AR1011.
  • AR1011.
1 2

AR1011

AR1011

ARCHITECTURAL

A family of circular LED luminaires with a modern and versatile design, suitable for any interior space. Their key features include uniform luminance across the OPAL diffuser and high-quality lighting performance. Suspensions included in the set.

  • Materials: Powder painted aluminum profile (white, grey, black colours in standard). OPAL diffuser.
  • Installation: Ceiling mounted, suspended (to suspend the luminaire you will need: simple suspension

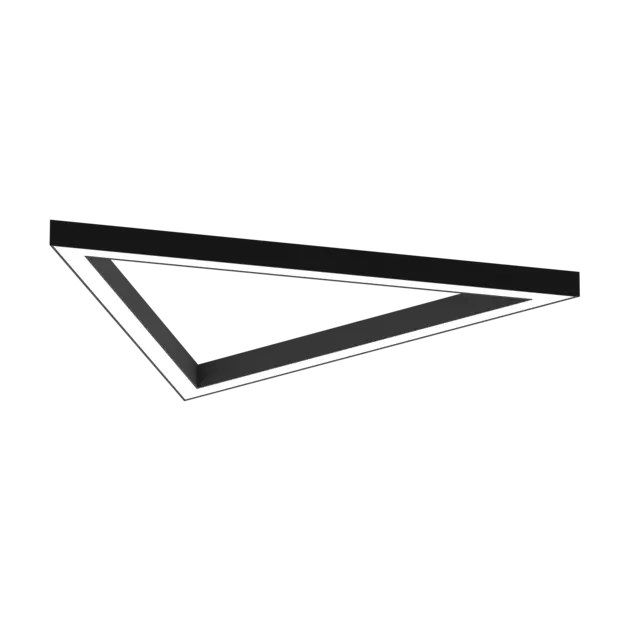

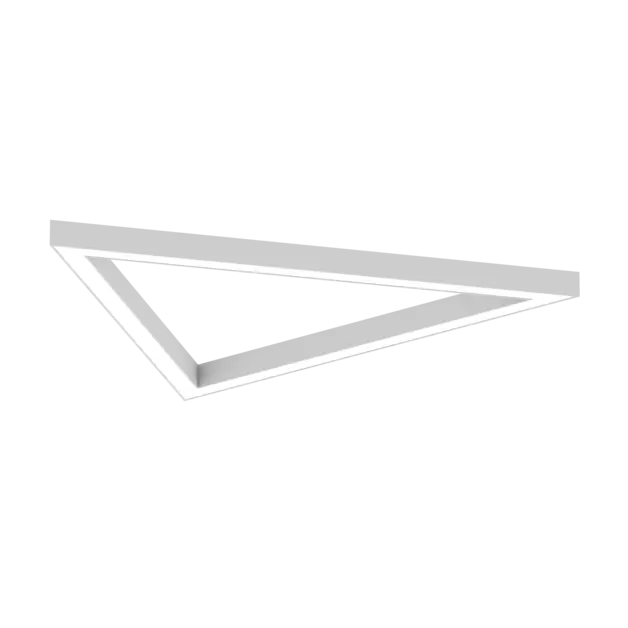

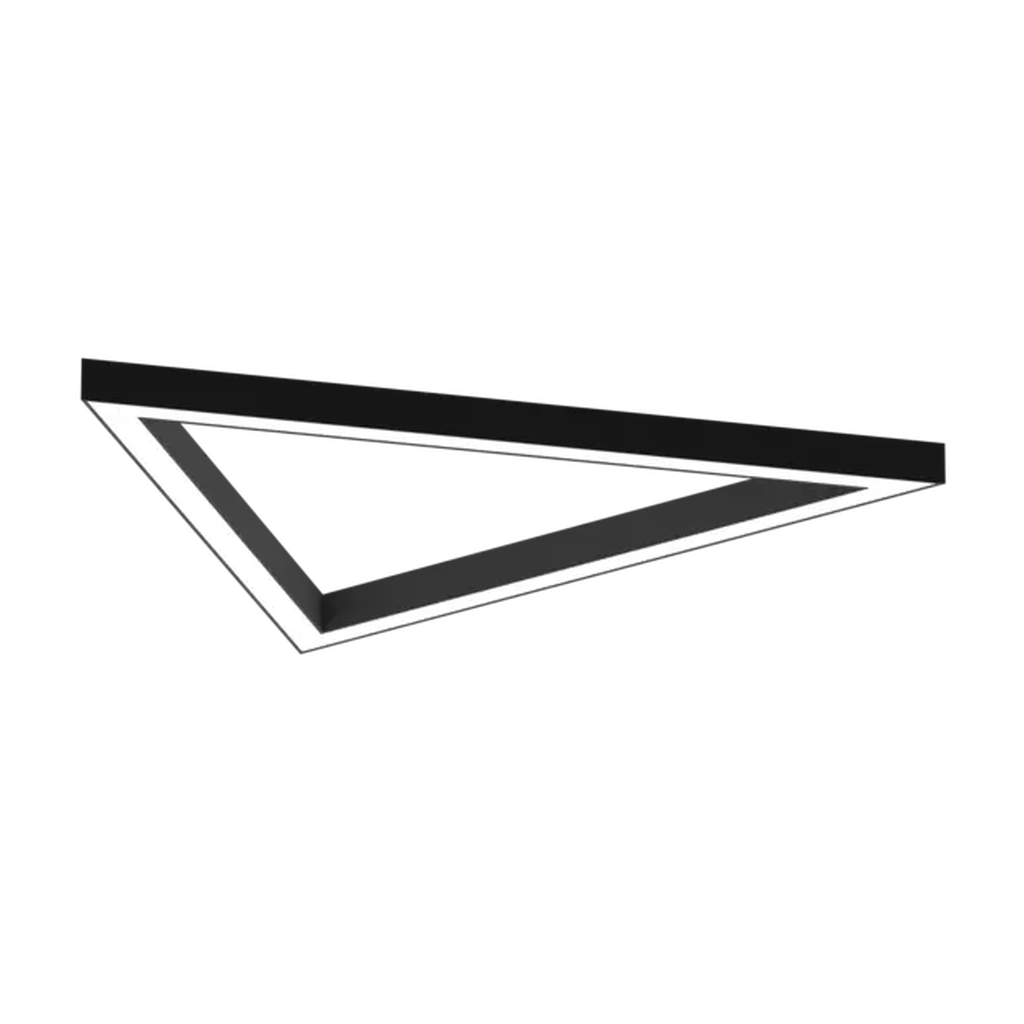

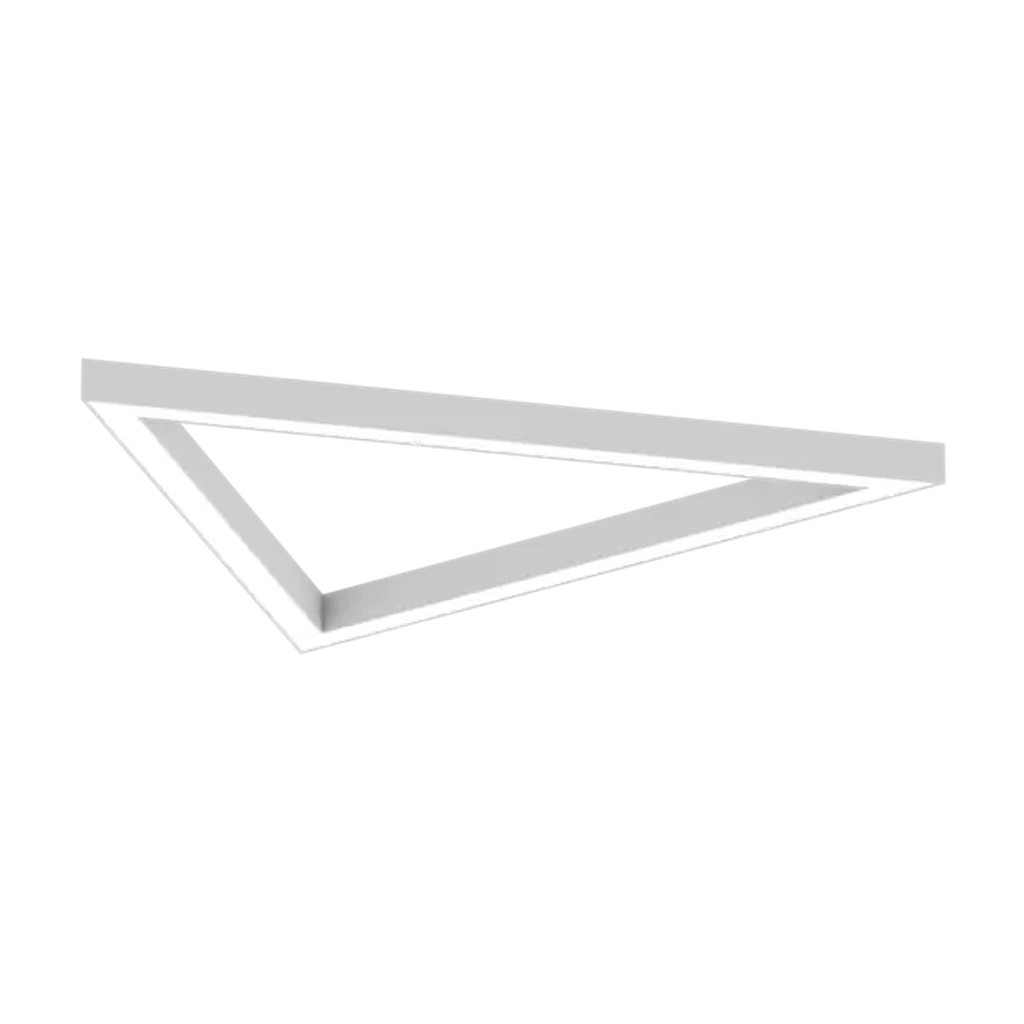

AR1011 | Compact Architectural LED Triangle Pendant

The AR1011 is a suspended LED luminaire featuring a compact triangular design. Its geometric form and uniform illumination make it an ideal choice for adding a modern architectural statement to interior spaces.​

🔍 Key Features:

Architectural Design: Triangular shape crafted from powder-coated aluminium, offering a sleek and modern aesthetic.​

Uniform Illumination: Equipped with an opal diffuser that ensures even light distribution, enhancing visual comfort.​

Efficient Performance: Delivers a luminous flux of up to 3,720 lumens with an efficacy of up to 103 lm/W, providing bright and energy-efficient lighting.​

Customisable Finish: Available in standard white, grey, black, or anthracite finishes, with the option for custom RAL colours to match specific design requirements.​

Suspended Installation: Designed for pendant mounting, supplied with a suspension kit for flexible installation heights.​

Control Options: Available with ON/OFF or DALI drivers. Optional motion sensor and emergency module integrations.​

🏢 Ideal Applications:

Perfect for offices, conference rooms, receptions, commercial spaces, corridors, and staircases where modern design and efficient lighting are essential.​

📐 Technical Specifications:

Light Source: Integrated LED​

Power Consumption: 36W​

Luminous Flux: 3,110–3,720 lm​

Luminous Efficacy: Up to 103 lm/W​

Colour Temperature: 3000K or 4000K​

CRI: 80 or 90​

MacAdam SDCM: 3​

UGR: ≤21​

Driver Options: ON/OFF, DALI​

Emergency Module: Optional​

Motion Sensor: Optional​

Protection Rating: IP40​

Impact Resistance: IK04​

Class of Protection: Class I​

Housing Material: Powder-coated aluminium​

Diffuser Material: Opal/matt plastic​

Dimensions: Side Length: 650 mm​

Weight: 3.5 kg​

The AR1011 combines compact design with high-performance lighting, making it a versatile choice for enhancing modern interiors with both style and functionality.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE llm/W LENGTH (L) WIDTH (W) HEIGHT (H)
13

1,750 llm

 390(X3) 100 46
22

2,870 llm

 390(X3) 100 46
26

3,470 llm

 680(X3) 100 46
38

4,440 llm

 680(X3) 100 46
44

4,980 llm

 970(X3) 100 46
65

8,790 llm

 970(X3) 100 46



CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
