AR1010

AR1010

ARCHITECTURAL

A family of circular LED luminaires with a modern and versatile design, suitable for any interior space. Their key features include uniform luminance across the OPAL diffuser and high-quality lighting performance. Suspensions included in the set.

  • Materials: Powder painted aluminum profile (grey colour in standard). OPAL diffuser.
  • Installation: Suspended (suspensions 1,5 m in set)

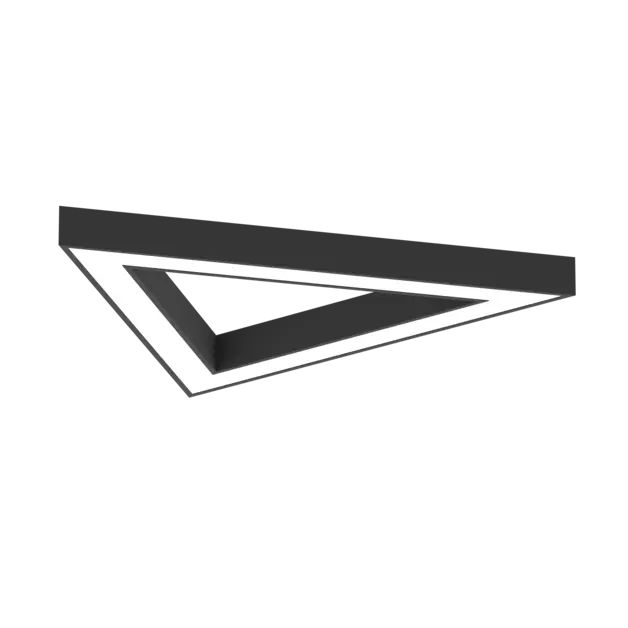

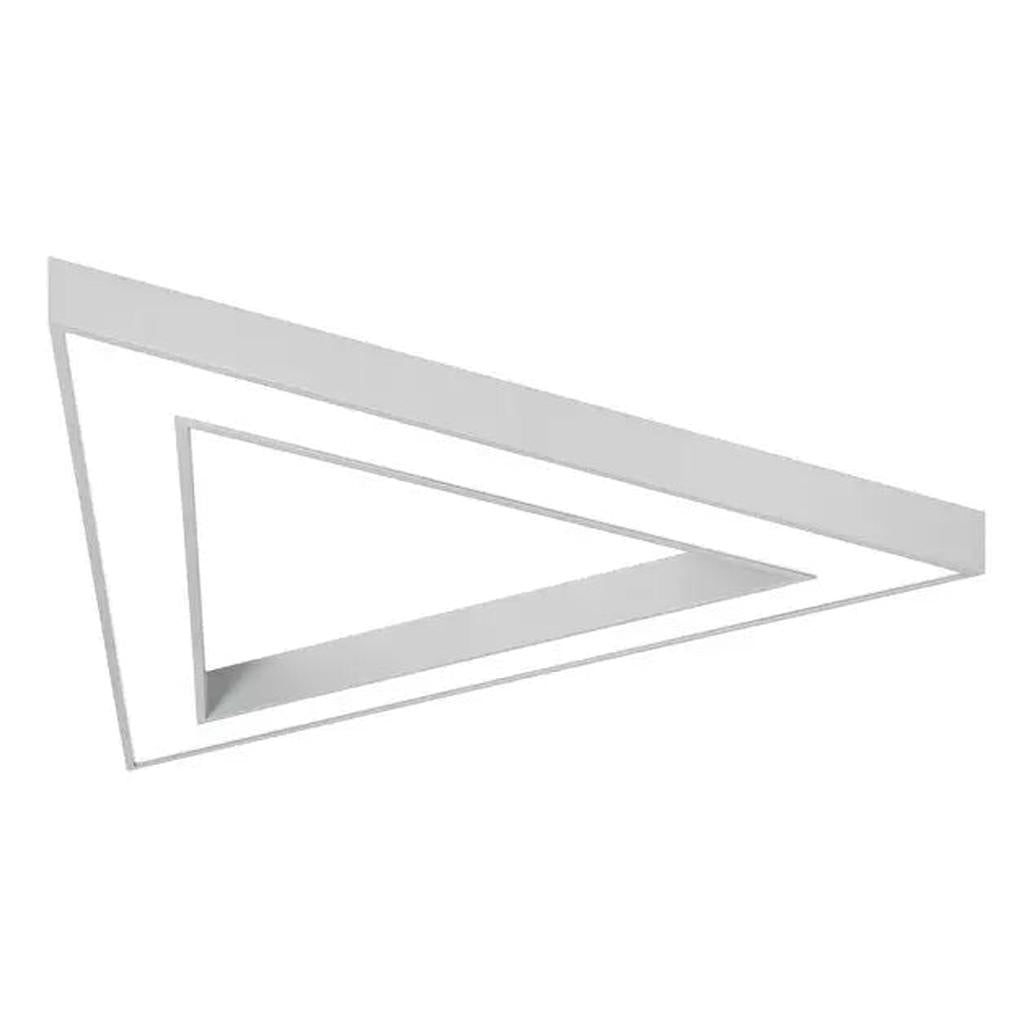

AR1010 | Suspended Triangular Architectural LED Luminaire

The AR1010 is a suspended LED luminaire featuring a distinctive triangular design. Its geometric form and uniform illumination make it an ideal choice for adding a modern architectural statement to interior spaces.​

🔍 Key Features:

Architectural Design: Triangular shape crafted from powder-coated aluminium, offering a contemporary aesthetic.​

Uniform Illumination: Equipped with an opal diffuser that ensures even light distribution, enhancing visual comfort.​

Efficient Performance: Delivers a luminous flux of up to 6,700 lumens with an efficacy of up to 103 lm/W, providing bright and energy-efficient lighting.​

Customisable Finish: Available in standard white, grey, black, or anthracite finishes, with the option for custom RAL colours to match specific design requirements.​

Suspended Installation: Designed for pendant mounting, supplied with a suspension kit for flexible installation heights.​

Control Options: Available with ON/OFF or DALI drivers. Optional motion sensor and emergency module integrations.​

🏢 Ideal Applications:

Perfect for offices, conference rooms, receptions, commercial spaces, corridors, and staircases where modern design and efficient lighting are essential.​

📐 Technical Specifications:

Light Source: Integrated LED​

Power Consumption: 20–68W​

Luminous Flux: 1,720–6,700 lm​

Luminous Efficacy: Up to 103 lm/W​

Colour Temperature: 3000K or 4000K​

CRI: 80 or 90​

MacAdam SDCM: 3​

UGR: ≤21​

Driver Options: ON/OFF, DALI​

Emergency Module: Optional​

Motion Sensor: Optional​

Protection Rating: IP40​

Impact Resistance: IK04​

Class of Protection: Class I​

Housing Material: Powder-coated aluminium​

Diffuser Material: Opal/matt plastic​

Dimensions: Length: 650 mm or 1065 mm​

Weight: 3.5–8.5 kg

The AR1010 combines unique design with high-performance lighting, making it a versatile choice for enhancing modern interiors with both style and functionality.​

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE llm/W LENGTH (L) BODY WIDTH (W) HEIGHT (H)
20
2,050 llm
 650(x3) 100 60
36
3,170 llm
 1065(x3) 100 60
39
3,850 llm
 650(x3) 100 60
68
6,700 llm
 1065(x3) 100 60
