CLEAN ROOM

A luminaire with an enhanced protection rating and a simple, classic design.

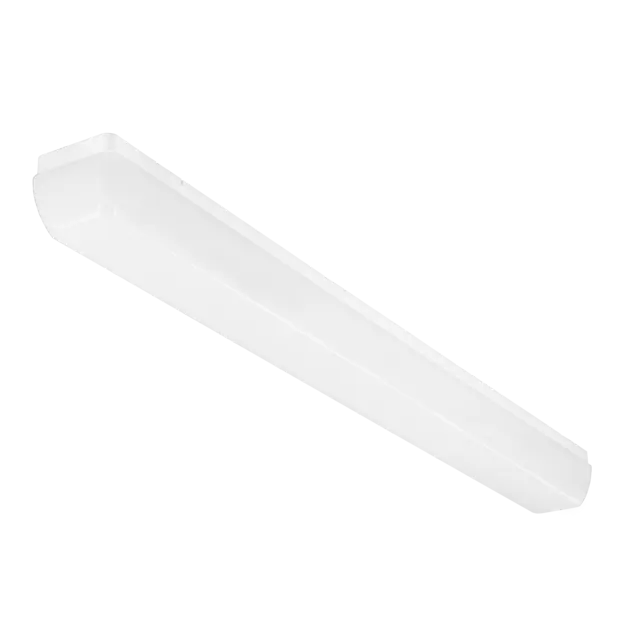

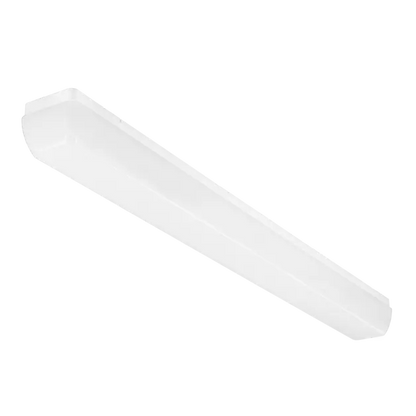

CR1001 | IP54 Cleanroom LED Batten Style Luminaire

The CR1001 is a surface-mounted LED luminaire designed for environments requiring increased protection and a clean, classic form. Its high ingress protection rating and efficient performance make it an ideal choice for various indoor applications.​

🔍 Key Features:

  • Enhanced Protection: IP54-rated enclosure ensures resistance against dust and water ingress, suitable for cleanroom environments.​
  • Efficient Performance: Delivers luminous efficacy up to 126 lm/W, providing bright and energy-efficient lighting.​
  • Uniform Illumination: Equipped with an OPAL UV-proof diffuser that ensures even light distribution, enhancing visual comfort
  • Versatile Installation: Designed for ceiling or wall mounting, accommodating various spatial requirements.​
  • Control Options: Available with ON/OFF or DALI drivers. Optional emergency module and motion sensor integrations.​

🏢 Ideal Applications:

  • Perfect for social rooms, corridors and staircases, bathrooms, receptions, cloakrooms, technical rooms, and security areas where enhanced protection and efficient lighting are essential.​

📐 Technical Specifications:

  • Light Source: Integrated LED​
  • Power Consumption: 19–46W​
  • Luminous Flux: 1,590–5,800 lm​
  • Luminous Efficacy: Up to 126 lm/W​
  • Colour Temperature: 3000K or 4000K​
  • CRI: 80 or 90​
  • MacAdam SDCM: 3​
  • UGR: 17 or 18​
  • Driver Options: FIXED OUTPUT, DALI,  WIRELESS​
  • Emergency Module: Optional​
  • Motion Sensor: Optional​
  • Protection Rating: IP54​
  • Impact Resistance: IK07​
  • Class of Protection: Class I​
  • Housing Material: White plastic​
  • Diffuser Material: Opal/matt plastic​
  • Dimensions: 330x330 mm or 1160x160 mm​
  • Weight: 1.7–3.3 kg​

The CR1001 combines robust protection with high-performance lighting, making it a versatile choice for enhancing cleanroom and other sensitive environments with both style and functionality.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE LUMEN LENGTH (L) WIDTH (W) HEIGHT (H)
19

1,900 llm

 330 330 85
24

3,010 llm

 1160 110 90
46

5,800 llm

 1160 160 90
