• CR1008.
1 1

CR1008

CR1008

CLEAN ROOM

CR1008 is a luminaire known for its excellent luminous performance, easy installation, and uniform light distribution across the diffuser surface.

  • Materials: Powder painted steel sheet body (standard colour: white). OPAL and microprismatic (MPRM) diffusers
  • Installation:

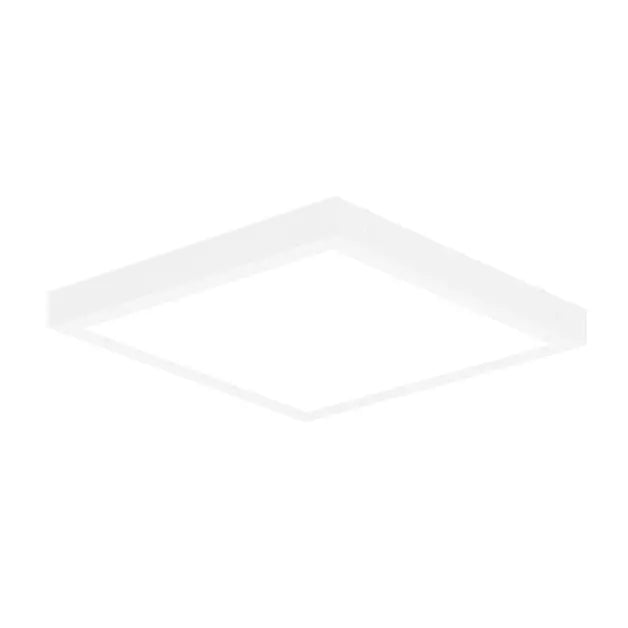

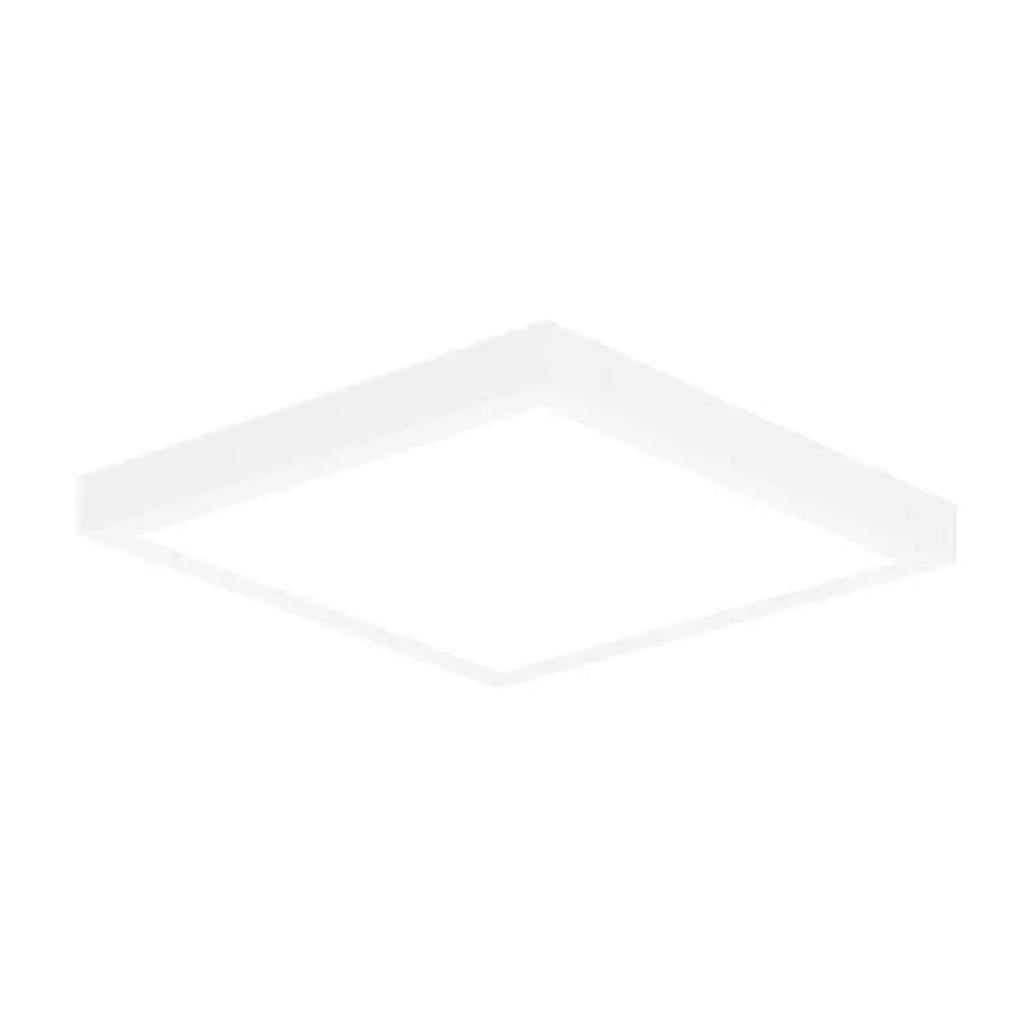

CR1008 | Surface IP54 LED Cleanroom Luminaire

The is a CR1008 surface-mounted LED luminaire engineered for environments demanding enhanced ingress protection and uniform illumination. Its robust construction and efficient performance make it ideal for cleanrooms and other sensitive areas.​

🔍 Key Features:

  • Enhanced Protection: IP54-rated enclosure ensures resistance against dust and water ingress, suitable for cleanroom environments.​
  • Efficient Performance: Delivers luminous efficacy up to 148 lm/W, providing bright and energy-efficient lighting.​
  • Uniform Illumination: Equipped with OPAL or microprismatic (MPRM) diffusers that ensure even light distribution, enhancing visual comfort.​
  • Versatile Installation: Designed for ceiling mounting, accommodating various spatial requirements.​
  • Control Options: Available with ON/OFF or DALI drivers. Optional emergency module and motion sensor integrations.​

🏢 Ideal Applications:

  • Perfect for bathrooms, corridors and staircases, cloakrooms, technical rooms, security areas, and social rooms where enhanced protection and efficient lighting are essential.​

📐 Technical Specifications:

  • Light Source: Integrated LED​
  • Power Consumption: 21–30W​
  • Luminous Flux: 2,700–4,340 lm​
  • Luminous Efficacy: 126–148 lm/W​
  • Colour Temperature: 3000K or 4000K​
  • CRI: 80​, 90
  • MacAdam SDCM: 3​
  • UGR: 16–19​
  • Driver Options: ON/OFF, DALI, WIRELESS​
  • Emergency Module: Optional​
  • Motion Sensor: Optional​
  • Protection Rating: IP54​
  • Impact Resistance: IK04​
  • Class of Protection: Class I​
  • Housing Material: Powder-coated steel sheet​
  • Diffuser Material: OPAL or microprismatic (MPRM) plastic​
  • Dimensions: 595x595 mm or 1195x295 mm​
  • Weight: 6.5 kg​

The CR1008 combines robust protection with high-performance lighting, making it a versatile choice for enhancing cleanroom and other sensitive environments with both style and functionality.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE LUMEN LENGTH (L) WIDTH (W) HEIGHT (H)
20

3070 llm

 595 595 80
21

3100 llm

 1195 595 80
29

4200 llm

 595 595 80
30

4340 llm

 1195 595 80
CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
