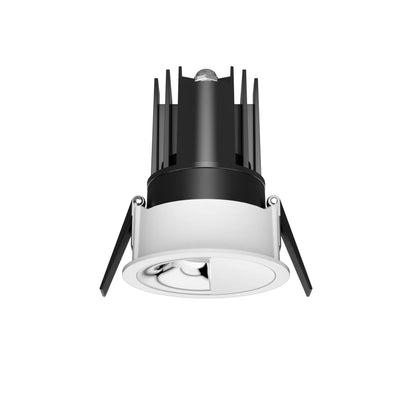

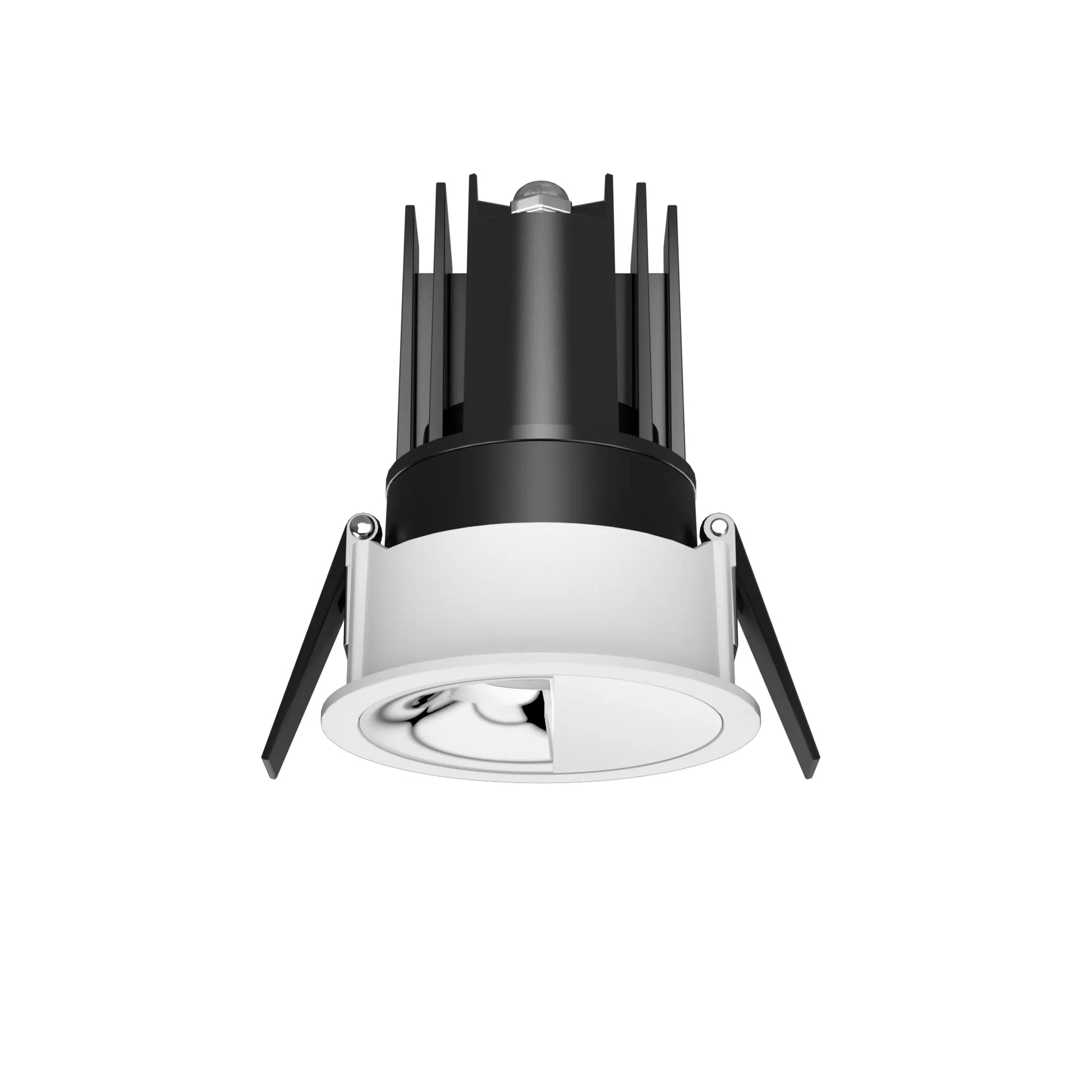

DL1003

DL1003

Downlight

Recessed 82(Ø)x105(H) Fixed Circular Wall Wash Downlight Style Luminaire

  • Materials: Aluminium and Polycarbonate
  • Installation: Recessed

DL1003 | Architectural LED Fixed Trimmed Asymmetrical Downlight

The DL1003 is a high-performance architectural LED downlight engineered for precision, visual comfort, and seamless ceiling integration. Its minimalist presence conceals a powerful lighting engine with advanced optical control, multiple beam angles, and full compatibility with smart lighting systems.

Built with superior thermal management and interchangeable reflector options, this luminaire delivers the perfect balance between performance and aesthetics for high-end commercial, retail, and residential environments.

🔍 Key Features:

High Visual Comfort:
CRI90+ output with flicker-free performance ensures clean, colour-true illumination for demanding visual environments.

Flexible Beam Control:
Available in 15°, 24°, 38°, and 60° beam angles to suit spotlighting, ambient, or accent lighting needs.

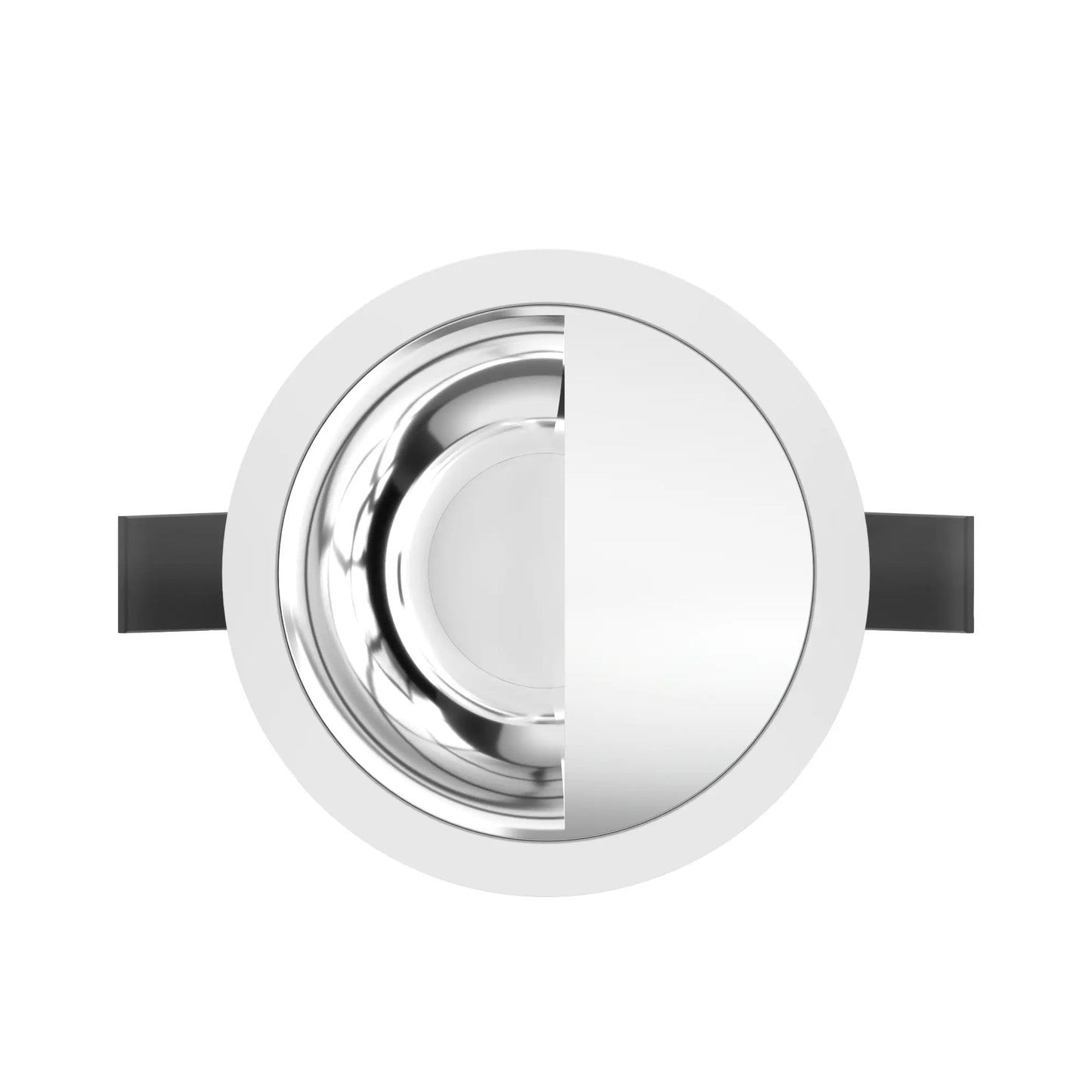

Interchangeable Reflectors:
Choose from black, white, chrome, or gold cones to tailor visual impact and blend seamlessly into any ceiling design.

Smart Control Compatible:
Fully integrable with DALI, Phase, CASAMBI, and BMS platforms—future-proofing your building system.

Thermal Engineering:
Die-cast aluminium body with vertical-finned heatsink design for advanced thermal dissipation and longevity.

Trimmed or Trimless Design:
Delivers architectural flexibility for both minimalist and traditional ceiling finishes.

Installation Efficiency:
Tool-free push-fit spring clips ensure fast and secure mounting across plasterboard and tile ceiling systems.

Optional Add-ons:
Tuneable white, emergency lighting modules, and IP44 front sealing available for commercial, healthcare, and high-spec environments.

🏢 Ideal Applications:

Retail • Hospitality • Commercial Offices • Healthcare • High-End Residential • Galleries • Museu

📐 Technical Specifications:

Attributee Details

Wattage Range 7.2W – 40W (model dependent)

Luminous Flux Up to 1403lm @ 12.6W (4000K)

Cut-Out Ø75–Ø100 mm

Fixture Diameter Ø82–Ø100 mm

Height 105 mm

Beam Angles Asymmetrical

Colour Temperatures 2700K, 3000K, 4000K, Tuneable White, Dim to Warm

Reflector Options Black / White / Chrome / Gold

Driver Options Phase, DALI, CASAMBI, BMS-Ready

IP Rating IP20 (IP44 or IP65 front option available)

Mounting Recessed

Emergency Pack Optional

Control Smart Lighting Compatible

💬 "DL1003 is lighting you don’t see, until you feel the difference."

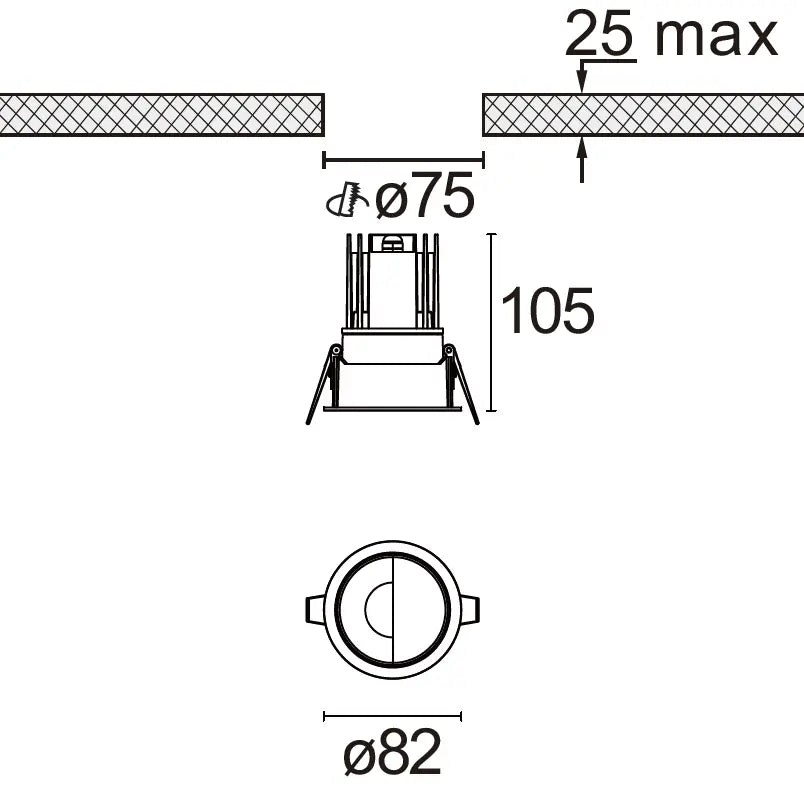

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE (w) Lumen (llm) DIAMTER (Ø) CUT-OUT (Ø) HEIGHT (H)
7.2W 756lm 82 75 105
10.8W 1134lm 82 75 105
12.6W 1403lm 82 75 105
