DOWNLIGHT

A minimalist LED luminaire featuring components from renowned manufacturers. Available in E14 versions for LED bulbs with a maximum of 10W.

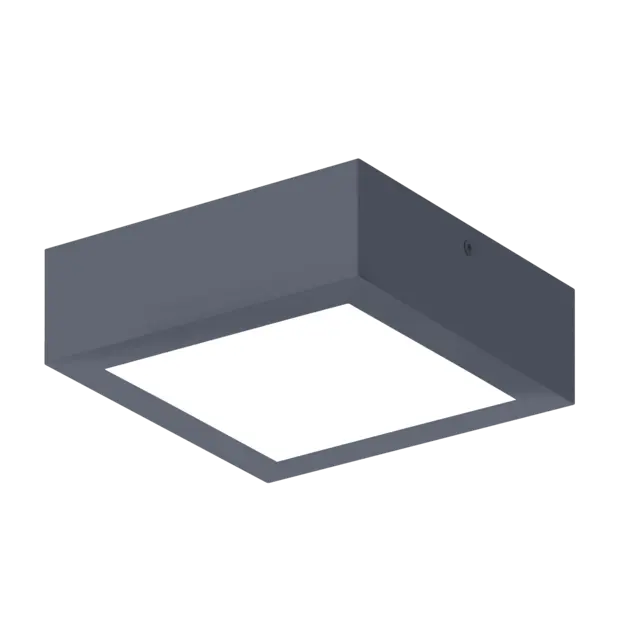

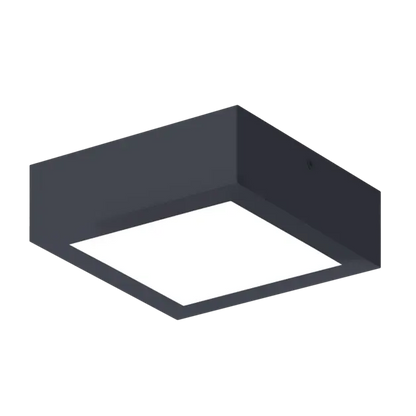

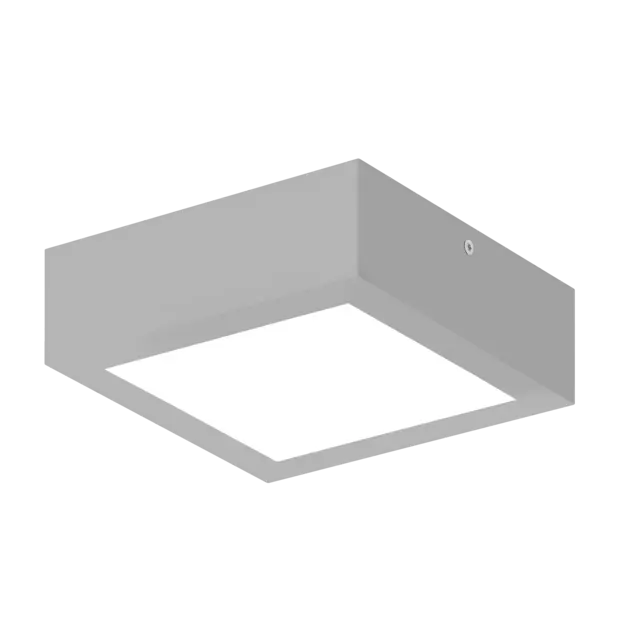

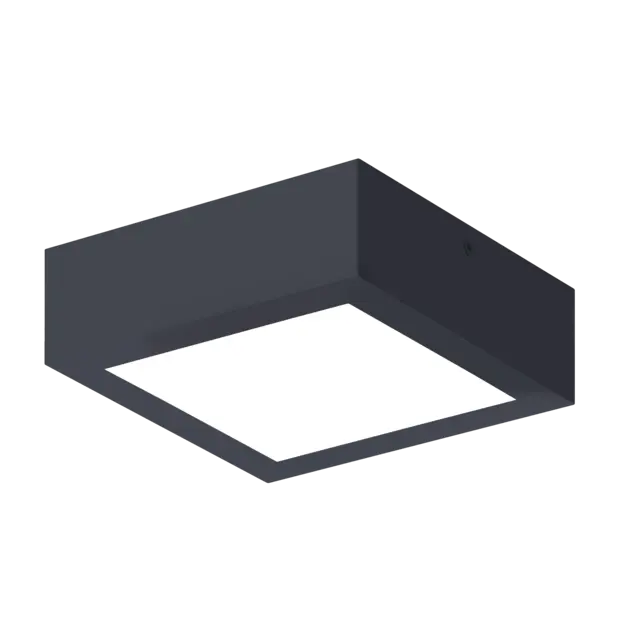

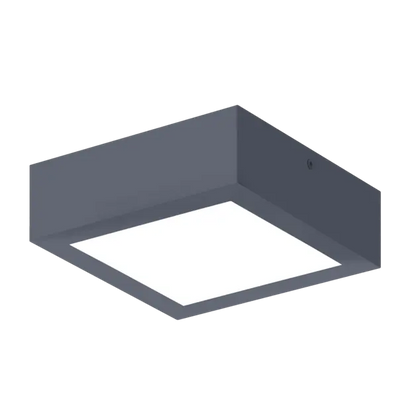

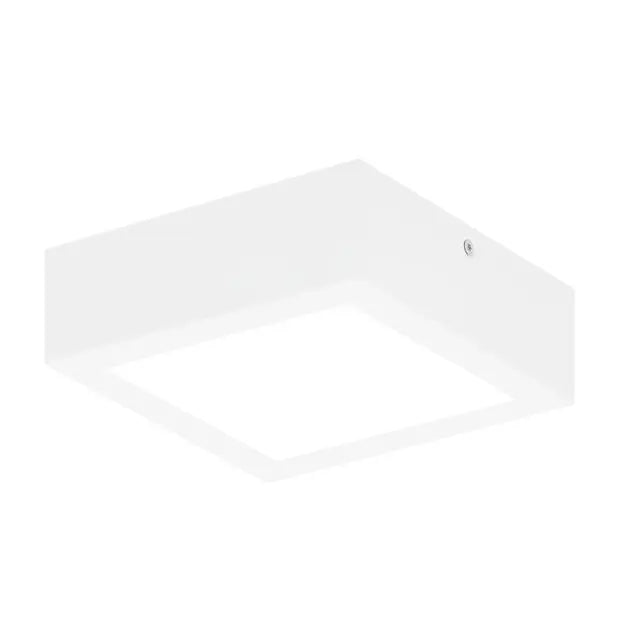

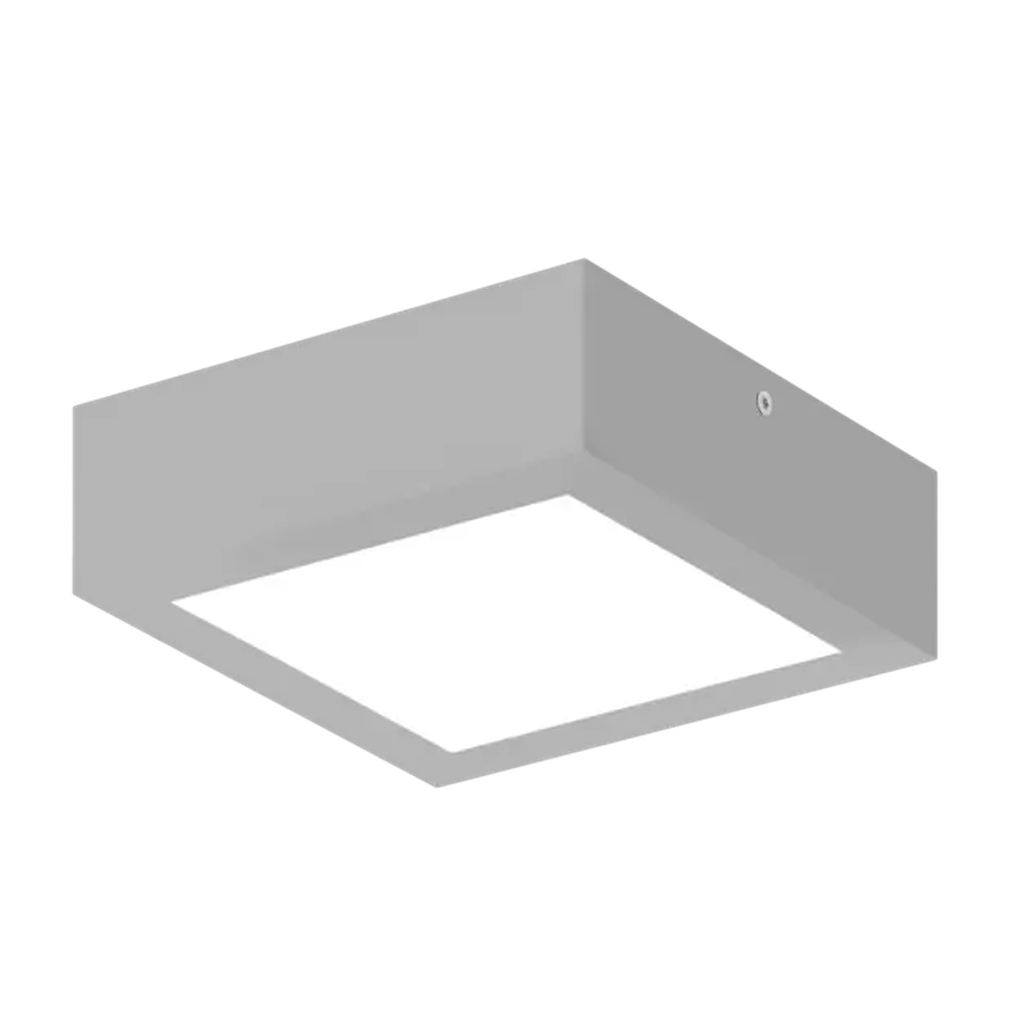

DL1106 | Surface Square IP65 Rated LED Downlight

The DL1106 is a premium-grade LED downlight engineered for environments demanding stringent hygiene standards and robust performance.

Designed to meet ISO Class 3–9 cleanroom specifications, this luminaire offers exceptional luminous efficacy, durability, and versatility.

🔍 Key Features:

• High Luminous Efficacy: Delivers up to 11470 lumens with an efficacy of 94–146 lm/W, ensuring bright and efficient illumination.​
• Versatile Mounting Options: Available in 600x600mm and 1200x300mm sizes, suitable for various ceiling configurations.​
• Durable Construction: Features a powder-coated galvanized steel housing with options for opal, microprismatic, or tempered glass diffusers.​
• Advanced Control Compatibility: Supports FIXED OUTPUT, DALI, and CASAMBI drivers for seamless integration into smart lighting systems.​
• Emergency and Sensor Options: Available with emergency modules and motion sensors to enhance safety and energy efficiency.​
• Color Temperature and CRI Options: Offers CCT ranges from 2700K to 6500K with CRI options of ≥80 and ≥90 for accurate color rendering.​
• Robust Protection: IP65-rated for dust and water resistance, with IK08 impact protection, making it suitable for demanding environments.

🏥 Ideal Applications:

• Cleanrooms, laboratories, operating theatres, pharmaceutical facilities, food processing areas, and other environments requiring high hygiene standards.​

📐 Technical Specifications:

• Power Consumption: 43W–100W​
• Luminous Flux: 4050–11470 lm​
• Color Temperatures: 2700K–6500K​
• Color Rendering Index (CRI): ≥80 / ≥90​
• Lifetime: Up to 100,000 hours (L80B10 @25°C)​
• Driver Options: ON/OFF, DALI, CASAMBI​
• Emergency Module: Optional 1h or 3h with self-test​
• Motion Sensor: Optional​
• Dimensions: 600x600mm, 1200x300mm​l
• Protection Ratings: IP65, IK08​
• Certifications: ISO 14644-14, HACCP+, CE​

Elevate your cleanroom lighting with the DL1106, where performance meets precision.
