EM1031

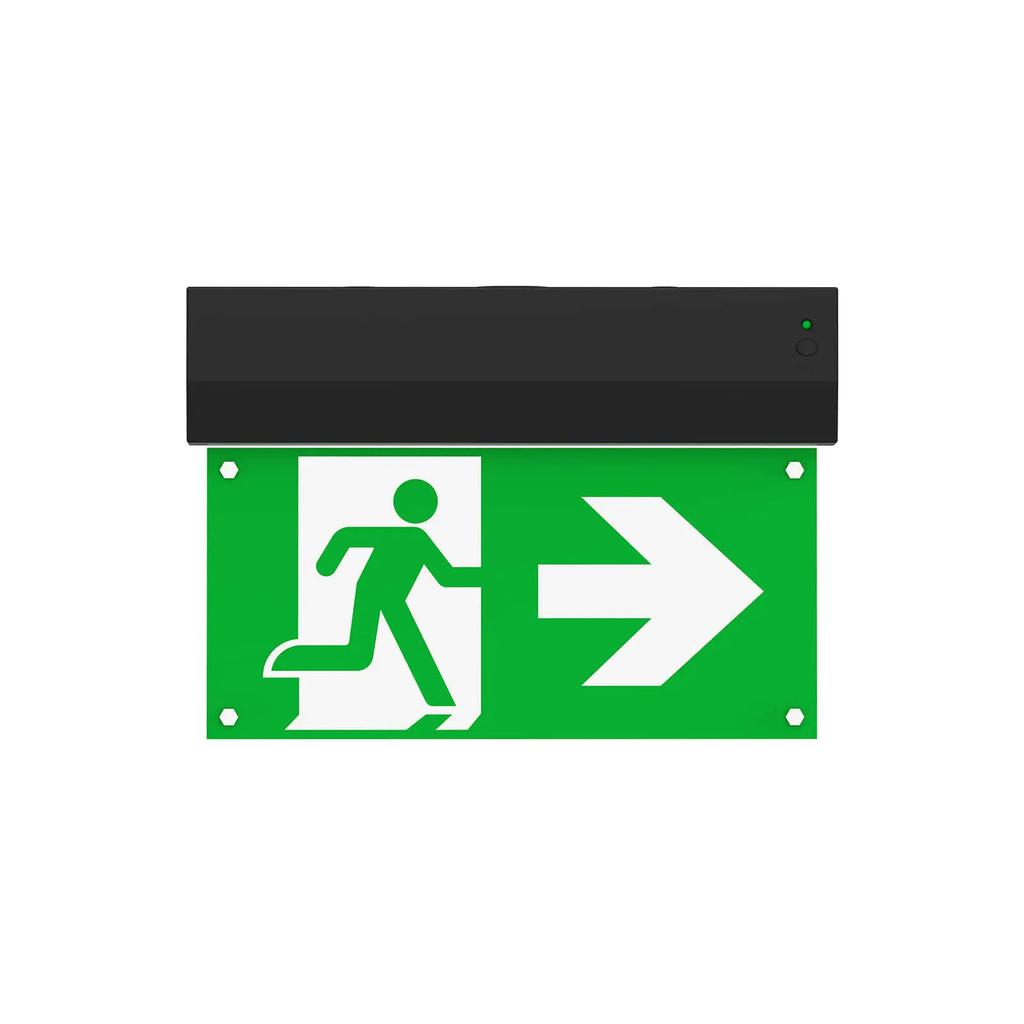

EM1031 Compact LED Exit Sign with 20M Visibility

The EM1031 is a sleek, minimalist LED exit sign designed to provide clear emergency wayfinding while complementing modern architectural designs. This versatile luminaire combines reliable performance with multiple mounting options, making it the perfect choice for contemporary commercial and public buildings requiring compliant emergency signage.

Key Features:

• Compact, low-profile design with premium polycarbonate construction
• Advanced LED technology with high-grade acrylic light guide panel for brilliant, uniform illumination
• Flexible installation with ceiling, side, recessed, track, and pendant mounting options
• Energy-efficient operation with only 3W maximum power consumption
• LiFePO4 battery technology ensuring 3+ hours of emergency operation
• 20-metre visibility range for clear wayfinding in emergency situations
• Customisable with interchangeable pictograms for directional flexibility
• Available in both self-test and manual test versions

Ideal Applications:

The EM1031 is particularly suited for offices, hotels, retail environments, educational facilities, and healthcare settings where aesthetics are as important as emergency compliance. Its slim profile makes it perfect for spaces with limited ceiling height or areas where emergency signage should blend seamlessly with interior design.

Technical Specifications:

• Housing: High-quality polycarbonate (PC)
• Light guide panel: Acrylic (PMMA)
• Pictogram: Premium PVC
• Operating temperature: 0°C to 45°C
• Input voltage: 220-240VAC, 50/60Hz
• Mains power consumption: 3W maximum
• Emergency power consumption: 0.5W maximum
• Battery: LiFePO4 6.4V 600mAh
• Charging time: 24 hours minimum
• Emergency duration: 3 hours minimum
• Colour temperature/CRI: 6000K/Ra>80
• Visibility distance: 20 metres
• Test functionality: Available in auto-test (AT) or manual test (MT) versions
• Protection class: Class II
• IP rating: IP20

The EM1031 represents the perfect balance of form and function, delivering reliable emergency lighting performance while maintaining a discreet, architecturally pleasing appearance. Its energy-efficient design and long-life LiFePO4 battery technology ensure minimal maintenance requirements and lower lifetime operating costs.
