INDUSTRIAL

A hermetic industrial luminaire designed for multiple functions, offering robust performance in demanding environments. This fixture features easy installation with adjustable fastener spacing for seamless setup. It allows for inline installation, providing flexibility in configuration. With an IP66 protection rating, this luminaire is highly resistant to dust and water, making it ideal for use in harsh conditions such as factories, warehouses, and outdoor settings. Its durable construction ensures reliable operation while delivering efficient illumination wherever needed.

  • Materials: Base made of impact proof polycarbonate, OPAL diffuser, UV stabilized, polycarbonate PC diffuser, fiber glass reinforced clips.
  • Installation:

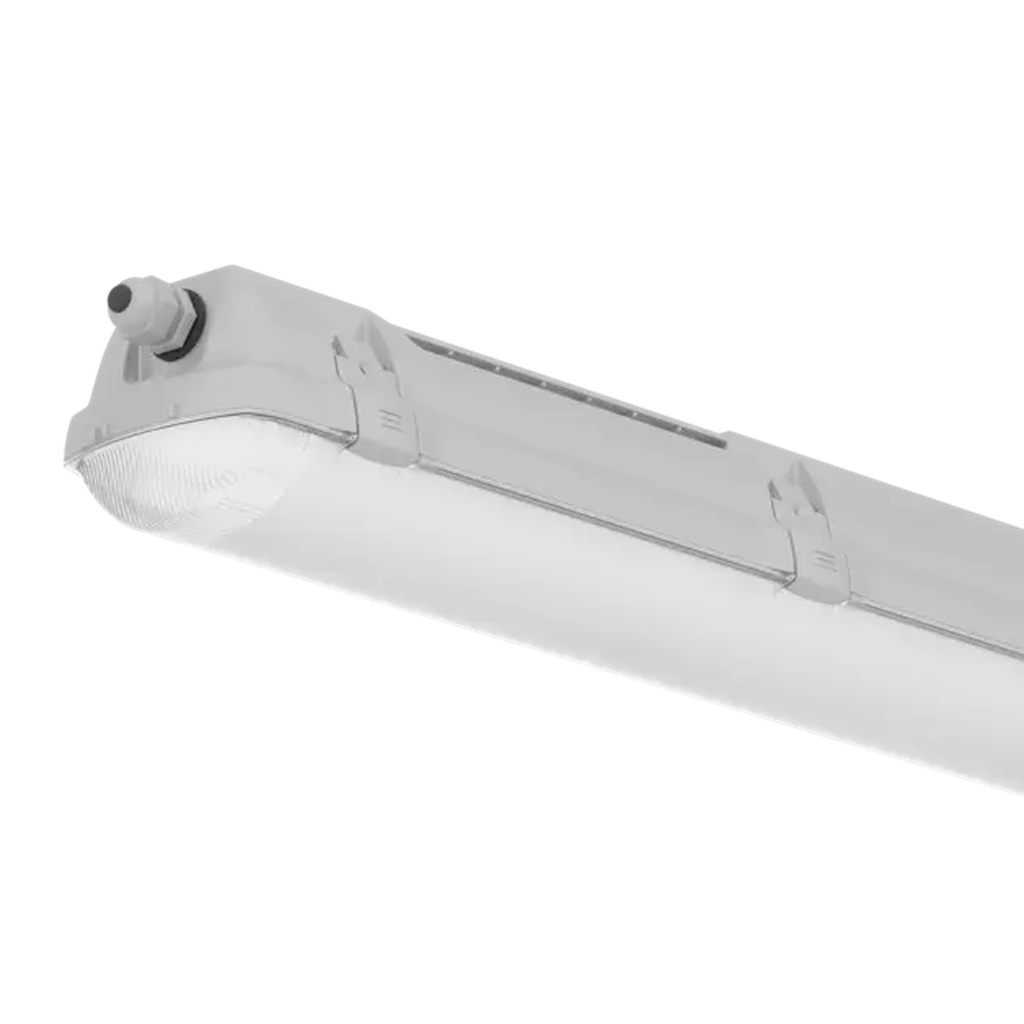

ID1003 | High Impact IK10 IP66 Industrial Batten Style Luminaire

The ID1003 is a high-performance LED luminaire designed for demanding industrial environments. Its robust construction and superior luminous efficacy make it ideal for warehouses, manufacturing facilities, and other large-scale applications.

🔍 Key Features:

High Luminous Efficacy: Delivers up to 189 lm/W, ensuring optimal brightness with minimal energy consumption.​

Durable Construction: Features a plastic housing with an opal/mat plastic diffuser, providing long-lasting performance in harsh conditions.​

Flexible Mounting Options: Suitable for wall-mounted or pendant installations to accommodate various spatial requirements.​

Control Compatibility: Available with ON/OFF or DALI drivers; optional emergency module and motion sensor integrations for enhanced functionality.​

Certified Quality: Compliant with CE, HACCP+, and EAC standards, ensuring reliability and safety.

🏭 Ideal Applications:

Laboratories, garages, technical rooms, security areas, social rooms, sport facilities, parking garages, arcades, and car parks.

📐 Technical Specifications:

  • Power Consumption: 12–82W​

  • Luminous Flux: 1,970–14,220 lm​

  • Luminous Efficacy: 151–189 lm/W​

  • Colour Temperature: 3000K, 4000K, or 5000K​

  • CRI: 80 or 90​

  • MacAdam SDCM: 3​

  • UGR: 21–25​

  • Driver Options: ON/OFF, DALI​

  • Emergency Module: Optional​

  • Motion Sensor: Optional​

  • Protection Rating: IP66​

  • Impact Resistance: IK10​

  • Class of Protection: Class I​

  • Housing Material: Plastic​

  • Diffuser Material: Opal/mat plastic

  • Mounting Options: Wall-mounted or pendant​

  • Dimensions: 615 mm, 1175 mm, or 1455 mm length​

  • Weight: 0.9–2.5 kg

The ID1003 combines robust protection with high-performance lighting, making it a versatile choice for enhancing industrial environments with both style and functionality.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE llm/W LENGTH (L) WIDTH (W) HEIGHT (H)
12
2065 llm
 615 98 120
16
2825 llm
 615 98 120
24
4130 llm
 1175 98 120
27
4915 llm
 1175 98 120
28
5090 llm
 615 98 120
33
5655 llm
 1175 98 120
37
6300 llm
 1175 98 120
40
7979 llm
 1455 98 120
46
8295 llm
 1175 98 120
57
10,370 llm
 1455 98 120
65
11,375 llm
 1175 98 120
82
14,220 llm
 1455 98 120
