INDUSTRIAL

A hermetic industrial luminaire designed for multiple functions, offering robust performance in demanding environments. This fixture features easy installation with adjustable fastener spacing for seamless setup. It allows for inline installation, providing flexibility in configuration. With an IP66 protection rating, this luminaire is highly resistant to dust and water, making it ideal for use in harsh conditions such as factories, warehouses, and outdoor settings. Its durable construction ensures reliable operation while delivering efficient illumination wherever needed.

  • Materials: Base made of impact proof polycarbonate, OPAL diffuser, UV stabilized, polycarbonate PC diffuser, fiber glass reinforced clips.
  • Installation:

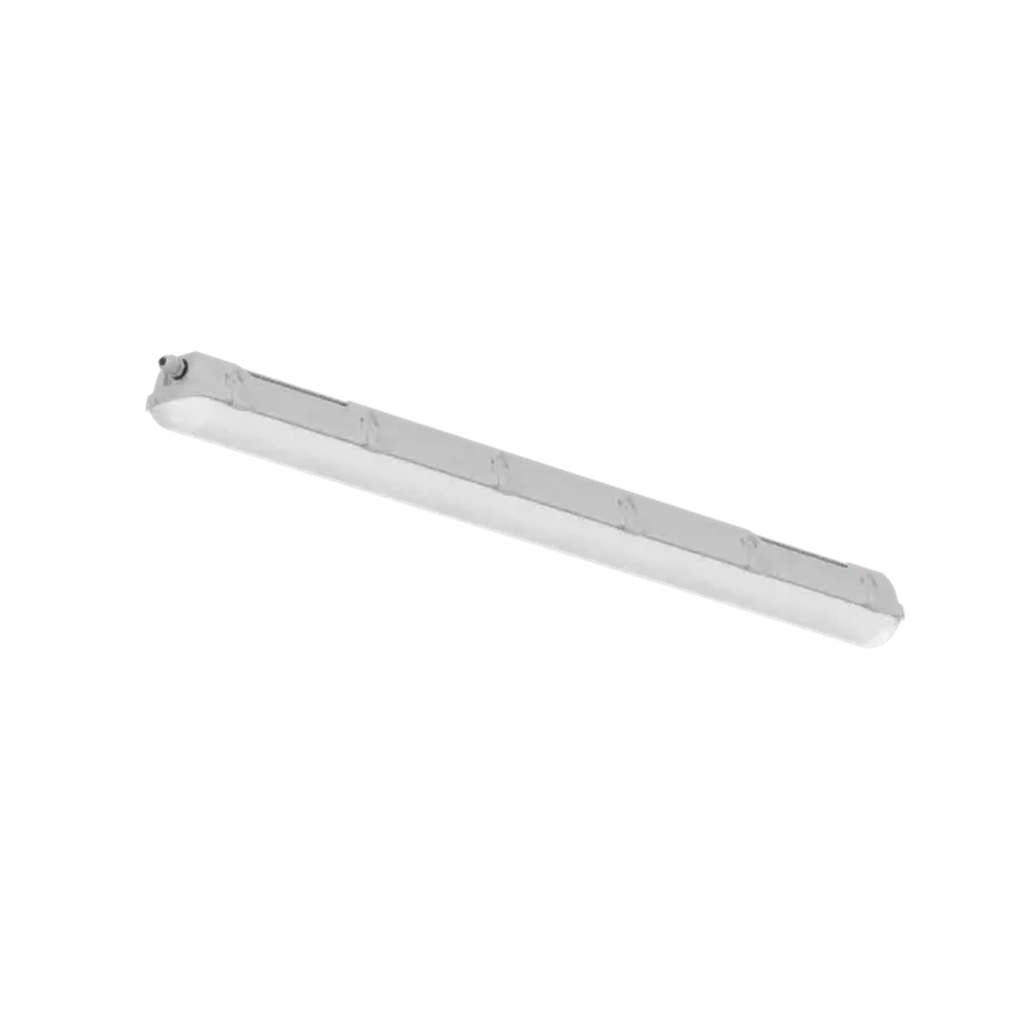

ID1004 | Surface/Suspended IP66 Industrial LED Luminaire (24V AC)

The ID1004 is a hermetically sealed LED luminaire designed for industrial applications requiring low-voltage operation. Its robust construction and high luminous efficacy make it ideal for environments such as laboratories, garages, and technical rooms.

🔍 Key Features:

Low-Voltage Operation: Operates on 24V AC, suitable for specific industrial requirements.​

High Luminous Efficacy: Delivers up to 157 lm/W, ensuring energy-efficient performance.​

Durable Construction: Features an impact-resistant polycarbonate housing with an opal diffuser, providing long-lasting performance.​

Flexible Mounting Options: Suitable for wall-mounted or pendant installations to accommodate various spatial requirements.​

Control Compatibility: Available with ON/OFF drivers; optional emergency module and motion sensor integrations for enhanced functionality.

🏭 Ideal Applications:

Laboratories, garages, technical rooms, security areas, social rooms, sport facilities, parking garages, arcades, and car parks.

📐 Technical Specifications:

Power Consumption: 18–36W​

Luminous Flux: 2,695–5,655 lm​

Luminous Efficacy: 150–157 lm/W​

Colour Temperature: 3000K or 4000K​

CRI: 80​

MacAdam SDCM: 3​

UGR: 21​

Driver Options: ON/OFF​

Emergency Module: Optional​

Motion Sensor: Optional​

Protection Rating: IP66​

Impact Resistance: IK10​

Class of Protection: Class I​

Housing Material: Plastic​

Diffuser Material: Opal/mat plastic​

Mounting Options: Wall-mounted or pendant​

Dimensions: 615 mm or 1175 mm length​

Weight: 0.9–1.7 kg​

The ID1004 combines robust protection with high-performance lighting, making it a versatile choice for enhancing industrial environments with both style and functionality.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE llm/W LENGTH (L) WIDTH (W) HEIGHT (H)
18
2825 llm
 615 98 84
36
5655 llm
 1175 98 84
