• IN1005.
1 1

ID1005

ID1005

INDUSTRIAL

A hermetic industrial luminaire designed for multiple functions, offering robust performance in demanding environments. This fixture features easy installation with adjustable fastener spacing for seamless setup. It allows for inline installation, providing flexibility in configuration. With an IP66 protection rating, this luminaire is highly resistant to dust and water, making it ideal for use in harsh conditions such as factories, warehouses, and outdoor settings. Its durable construction ensures reliable operation while delivering efficient illumination wherever needed.

  • Materials: Base made of impact proof polycarbonate, OPAL diffuser, UV stabilized, polycarbonate PC diffuser. Stainless steel (INOX) clips and compensation valve in standard.
  • Installation:

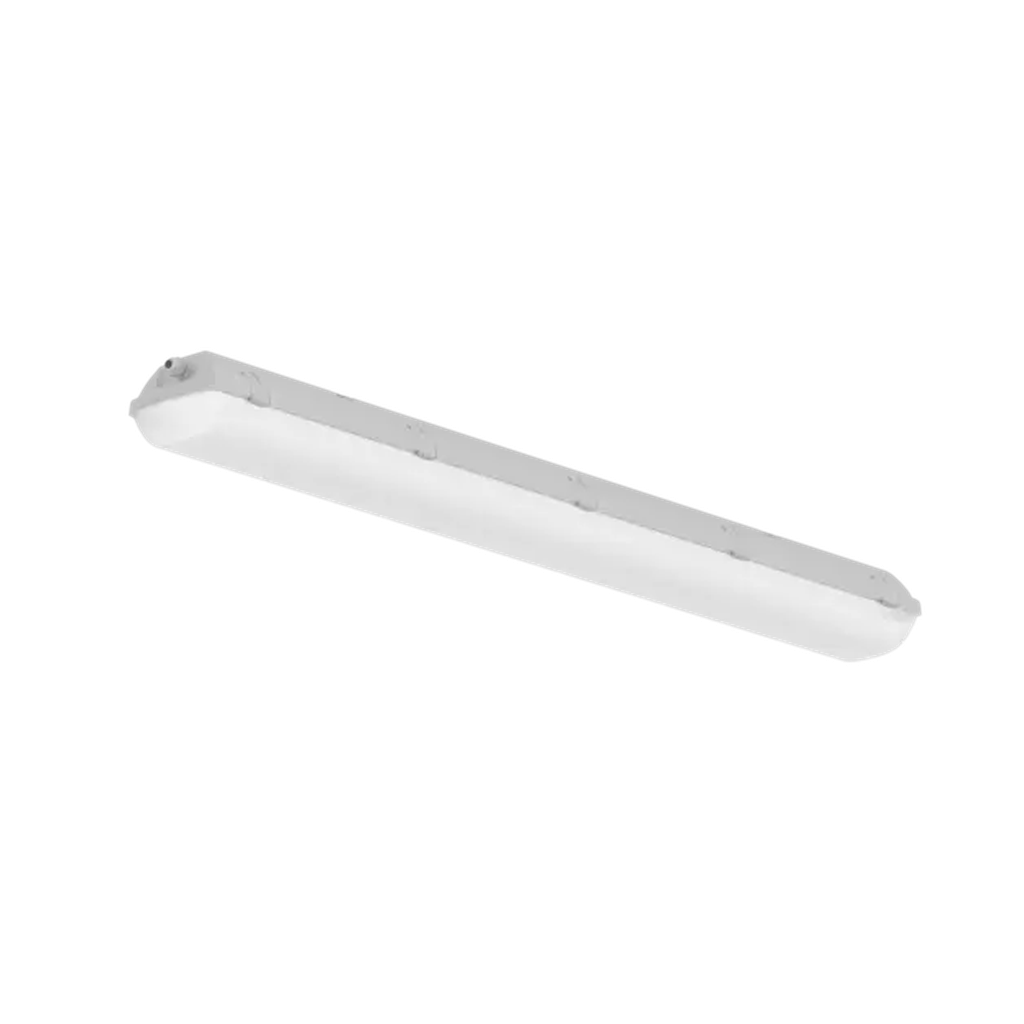

ID1005 | High Impact IK10 IP66 Industrial LED Batten Style Luminaire

The ID1005 is a high-performance LED luminaire designed for demanding industrial environments. Its robust construction and superior luminous efficacy make it ideal for warehouses, manufacturing facilities, and other large-scale applications. ​

🔍 Key Features:

High Luminous Efficacy: Delivers up to 189 lm/W, ensuring optimal brightness with minimal energy consumption.​

Durable Construction: Features a plastic housing with an opal/mat plastic diffuser, providing long-lasting performance in harsh conditions.​

Flexible Mounting Options: Suitable for wall-mounted or pendant installations to accommodate various spatial requirements.​

Control Compatibility: Available with ON/OFF drivers; optional emergency module and motion sensor integrations for enhanced functionality.​

Certified Quality: Compliant with CE, HACCP+, and EAC standards, ensuring reliability and safety.

🏭 Ideal Applications:

Laboratories, garages, technical rooms, security areas, social rooms, sport facilities, parking garages, arcades, and car parks. ​

📐 Technical Specifications:

Power Consumption: 55–78W​

Luminous Flux: 9,375–14,765 lm​

Luminous Efficacy: 170–189 lm/W​

Colour Temperature: 3000K or 4000K​

CRI: 80​

MacAdam SDCM: 3​

Driver Options: ON/OFF​

Emergency Module: Optional​

Motion Sensor: Optional​

Protection Rating: IP66​

Impact Resistance: IK10​

Class of Protection: Class I​

Housing Material: Plastic​

Diffuser Material: Opal/mat plastic​

Mounting Options: Wall-mounted or pendant​

Dimensions: 1174 mm or 1452 mm length​

Weight: 2.9–3.8 kg​



The ID1005 combines robust protection with high-performance lighting, making it a versatile choice for enhancing industrial environments with both style and functionality.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE llm/W LENGTH (L) WIDTH (W) HEIGHT (H)
55
9830 llm
 1174 145 100
78
14,765 llm
 1452 145 100
CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
