ID1008

ID1008

INDUSTRIAL

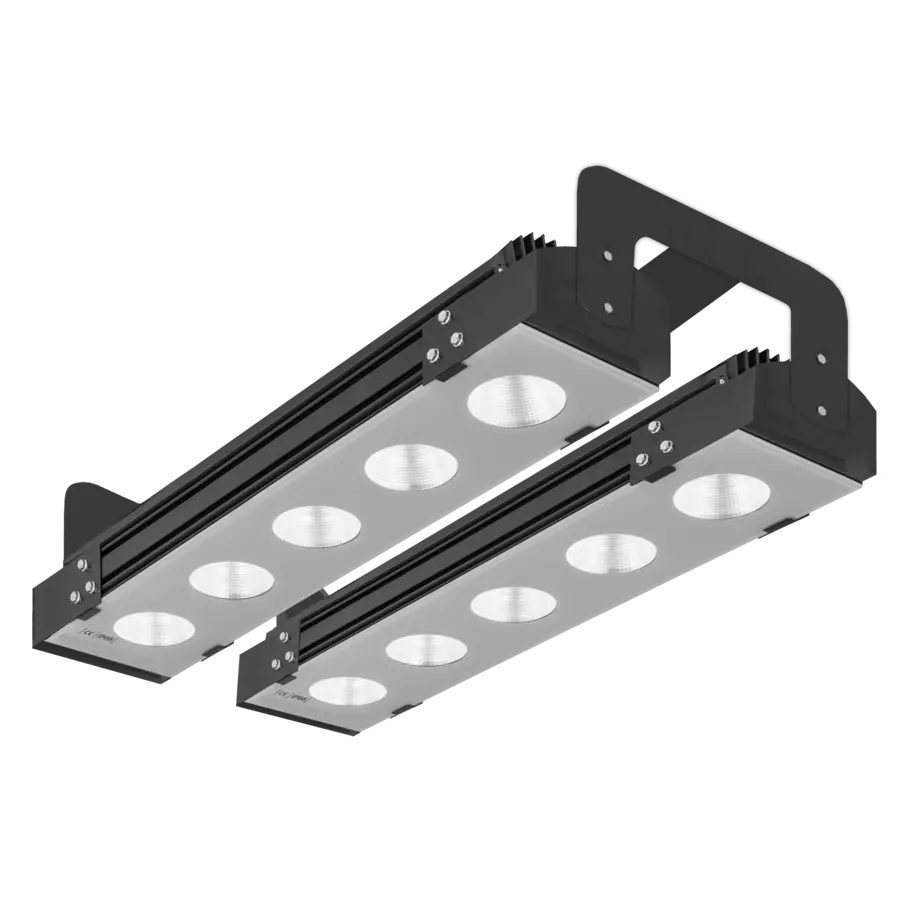

The IN1008 luminaire is designed specifically for illuminating high-ceiling spaces where optimal energy efficiency is paramount. To facilitate installation, additional components must be ordered based on the chosen configuration: for the ceiling-mounted or suspended version, one 128 W module is required along with an additional bracket (1x) or two 128 W modules with two brackets (2x); for the suspended version, additional suspension components are needed; the recessed version requires one 128 W module, along with one bracket (1x), suspension, and a masking frame for plasterboard (G/K) ceilings; and for the wall-mounted version, one 128 W module and an adjustable wall bracket (1x) are necessary. This flexibility in installation options makes the IN1008 luminaire an ideal choice for various high-space applications, ensuring effective lighting while prioritising energy efficiency.

  • Materials: Aluminium profile body (standard colour: black), tempered glass painted grey, COB LEDs, aluminium reflectors available with three angles of light distribution, powder painted 1x or 2x steel bracket (standard colour: black), aluminium frame for plaster cardboard ceilings – G/K (standard colour: black).
  • Installation:

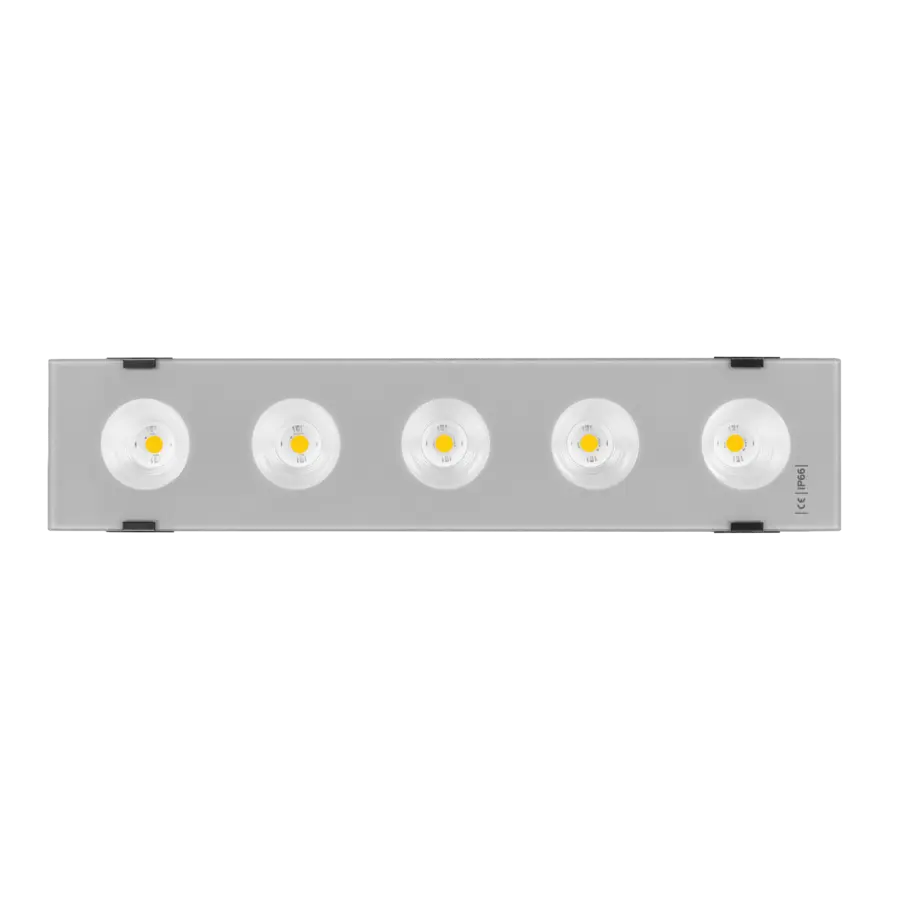

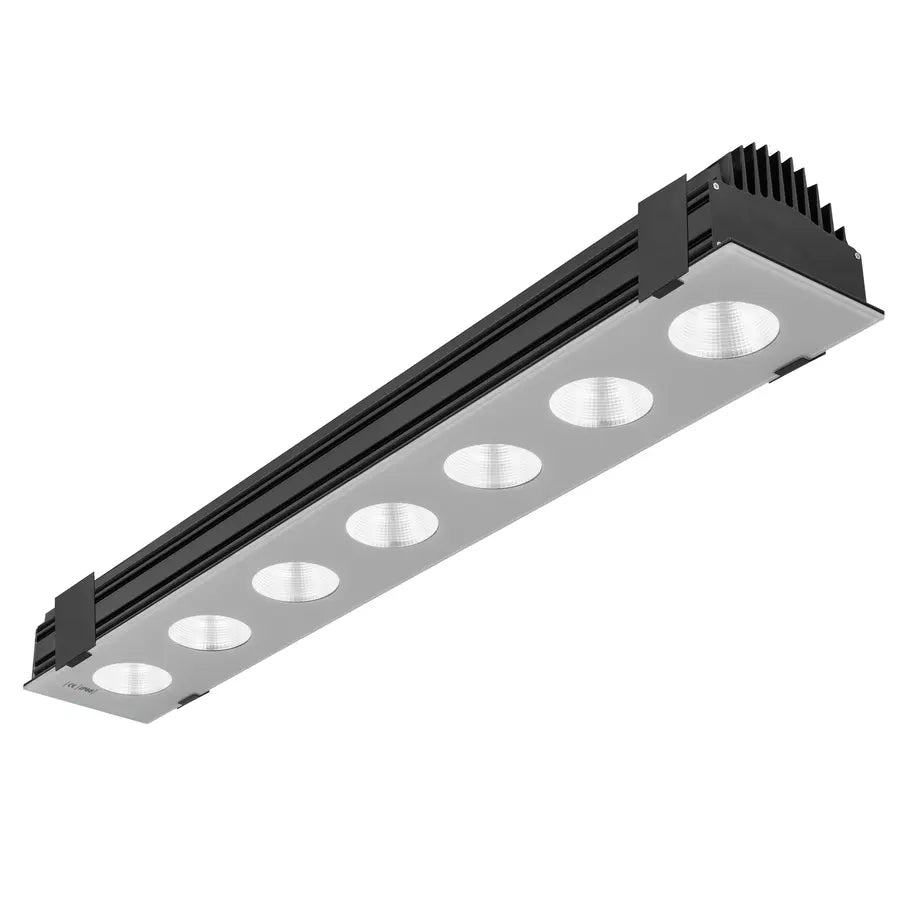

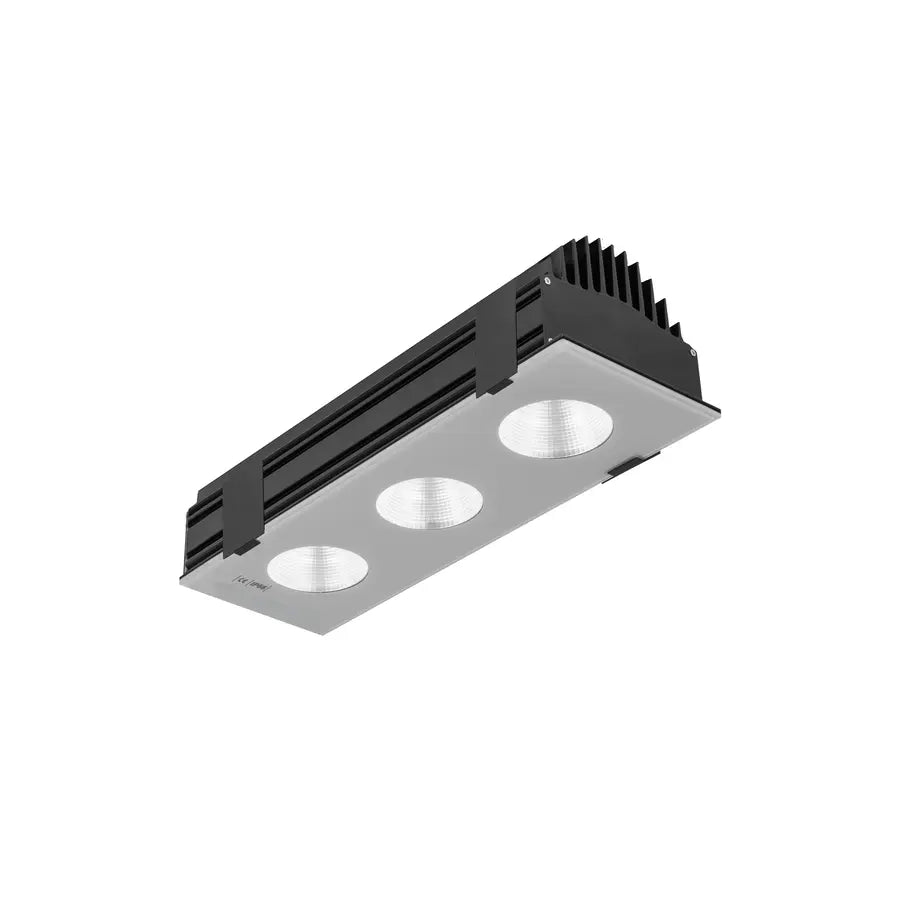

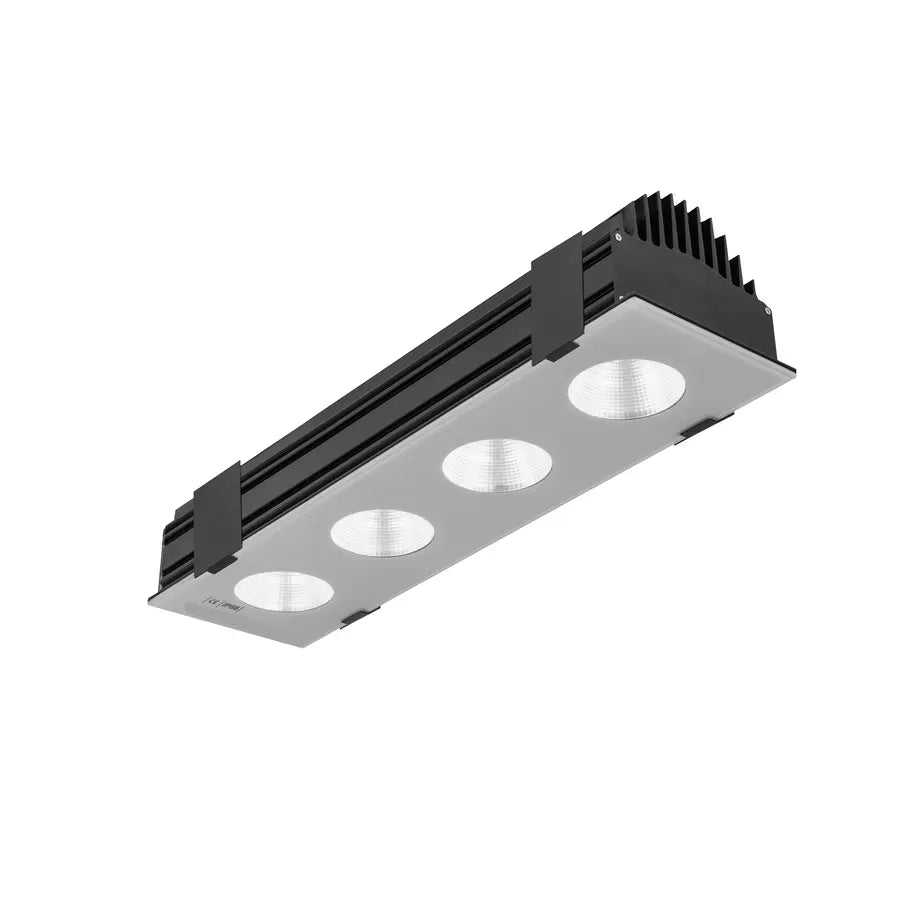

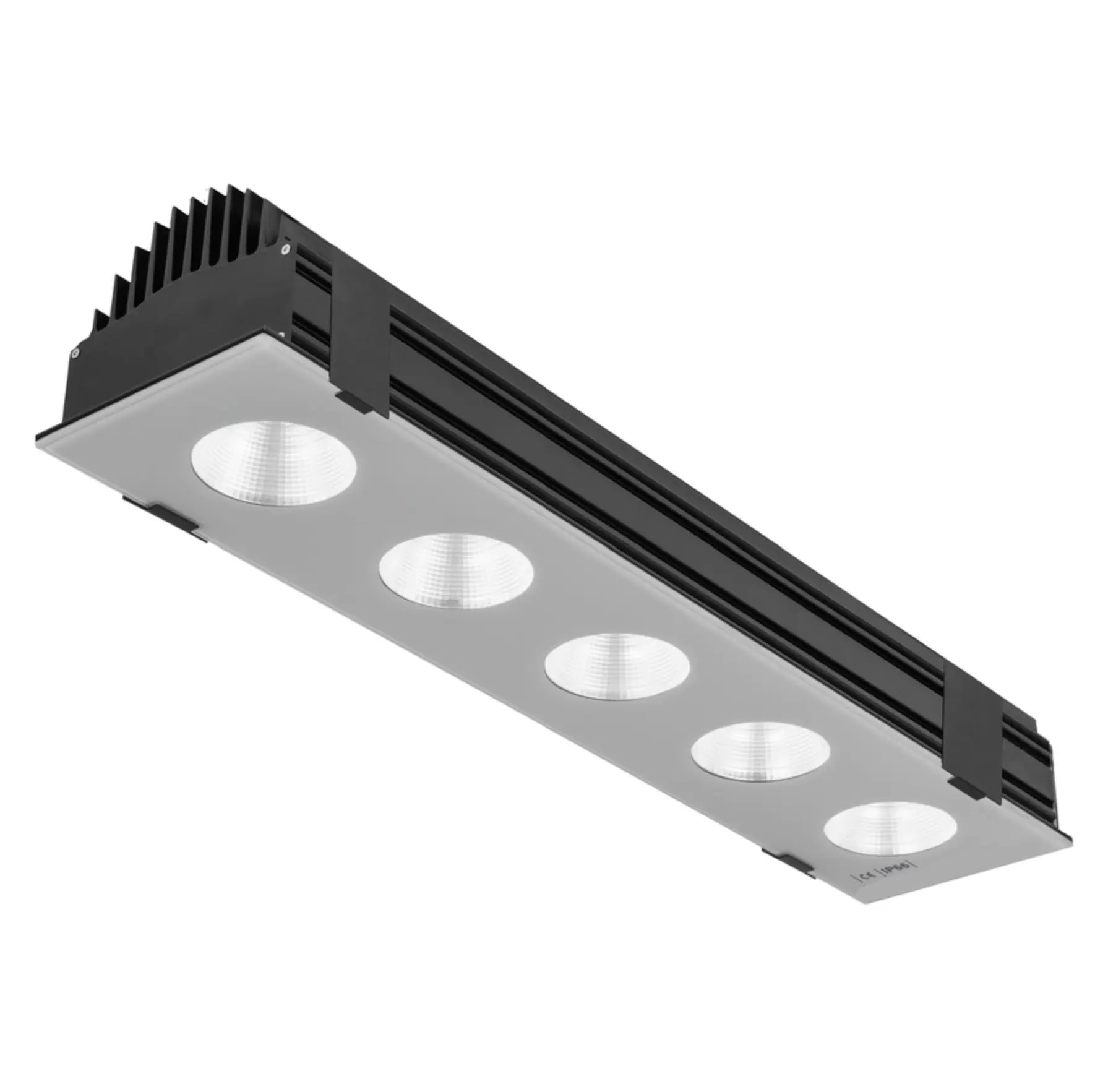

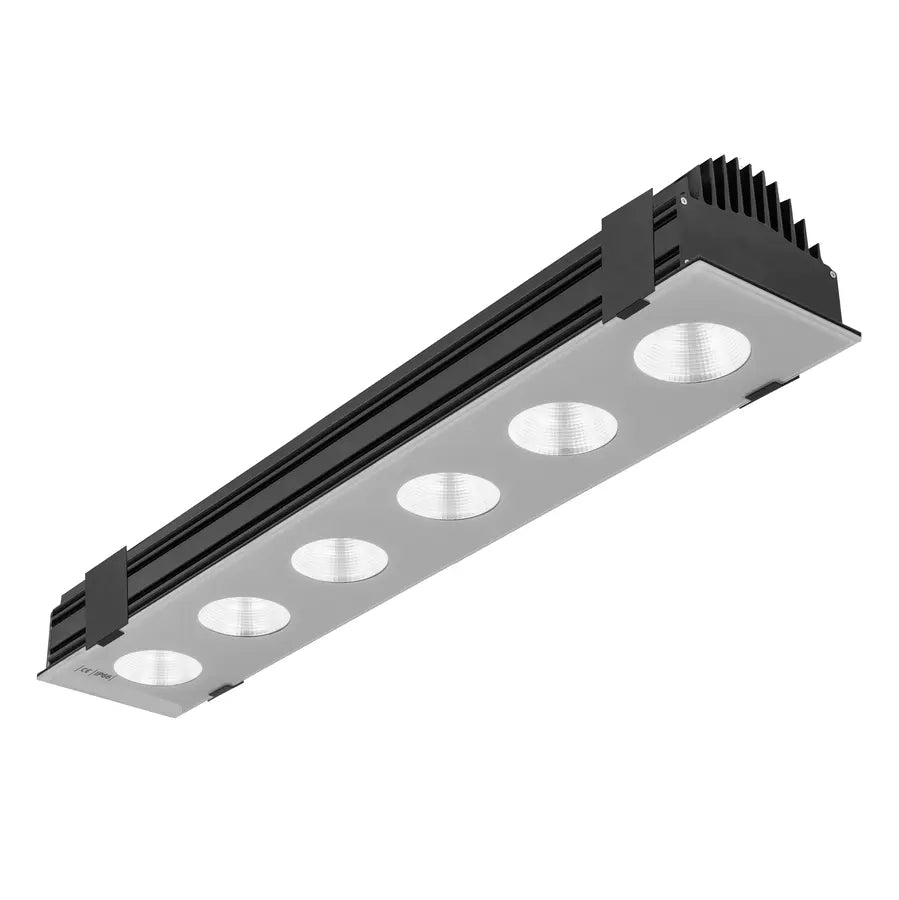

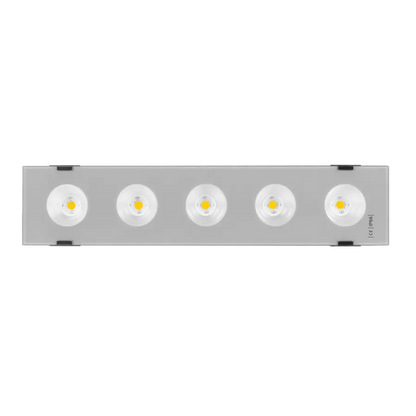

ID1008 | High Impact IK10 IP66 Industrial Batten Style Luminaire

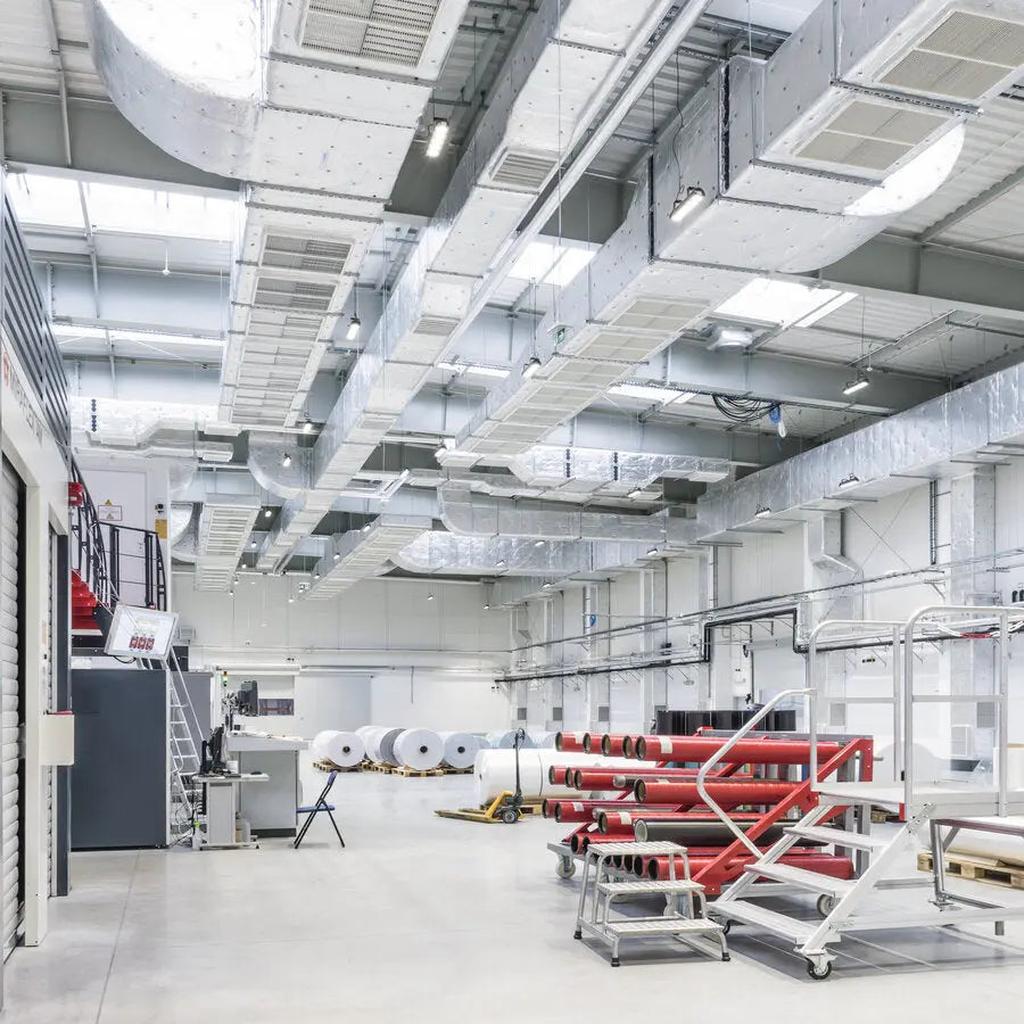

The ID1008 is a high-performance LED luminaire designed for demanding industrial environments. Its robust construction and superior luminous efficacy make it ideal for warehouses, manufacturing facilities, and other large-scale applications.

🔍 Key Features:

  • High Luminous Efficacy: Delivers up to 142 lm/W, ensuring optimal brightness with minimal energy consumption.​

  • Durable Construction: Features an aluminum housing with a high-gloss reflector and tempered glass, providing long-lasting performance in harsh conditions.​

  • Flexible Mounting Options: Suitable for surface-mounted, wall-mounted, suspended, or recessed installations to accommodate various spatial requirements.​

  • Control Compatibility: Available with ON/OFF or DALI drivers; optional emergency module and motion sensor integrations for enhanced functionality.​

  • Certified Quality: Compliant with CE, HACCP+, and EAC standards, ensuring reliability and safety.

🏭 Ideal Applications:

Laboratories, garages, technical rooms, security areas, social rooms, sport facilities, parking garages, arcades, and car parks.

📐 Technical Specifications:

  • Power Consumption: 78–193W​

  • Luminous Flux: 9,290–27,470 lm​

  • Luminous Efficacy: 119–142 lm/W​

  • Colour Temperature: 3000K or 4000K​

  • CRI: 80 or 90​

  • MacAdam SDCM: 3​

  • UGR: 21–27​

  • Driver Options: ON/OFF, DALI​

  • Emergency Module: Optional​

  • Motion Sensor: Optional​

  • Protection Rating: IP66​

  • Impact Resistance: IK10​

  • Class of Protection: Class I​

  • Housing Material: Aluminum​

  • Diffuser Material: Tempered glass​

  • Mounting Options: Surface-mounted, wall-mounted, suspended, recessed​

  • Dimensions: 390 mm, 500 mm, 610 mm, 720 mm, or 830 mm length​

  • Weight: 3.5–7.4 kg​

The ID1008 combines robust protection with high-performance lighting, making it a versatile choice for enhancing industrial environments with both style and functionality.


DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE llm/W LENGTH (L) WIDTH (W) HEIGHT (H)
78
10,740 llm
 390 130 110
103
14,560 llm
 500 130 110
128
14,560 llm
 610 130 110
166
23,350 llm
 720 130 110
193
27,470 llm
 830 130 110
