ID1009
ID1009
INDUSTRIAL
The IN1009 industrial high-bay luminaire is designed for LED light sources, delivering exceptional lighting performance. It is perfect for illuminating warehouses, manufacturing areas, and transportation routes, as well as residential lofts and other unique spaces that feature an industrial aesthetic. This versatile luminaire combines functionality with style, making it an excellent choice for both commercial and residential applications.
- Materials: Grooved aluminum housing, transparent diffuser, LED light source from reputable manufacturers, IP65 connector.
- Installation: Suspended
Link to this
ID1009 | High Impact IP65 Industrial High-Bay LED Luminaire

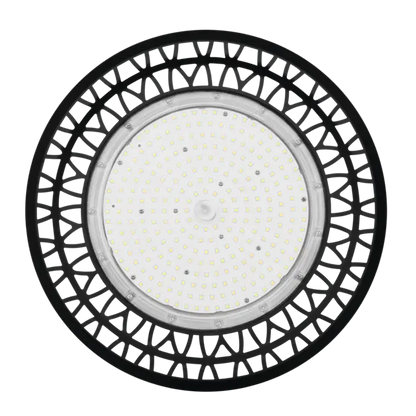

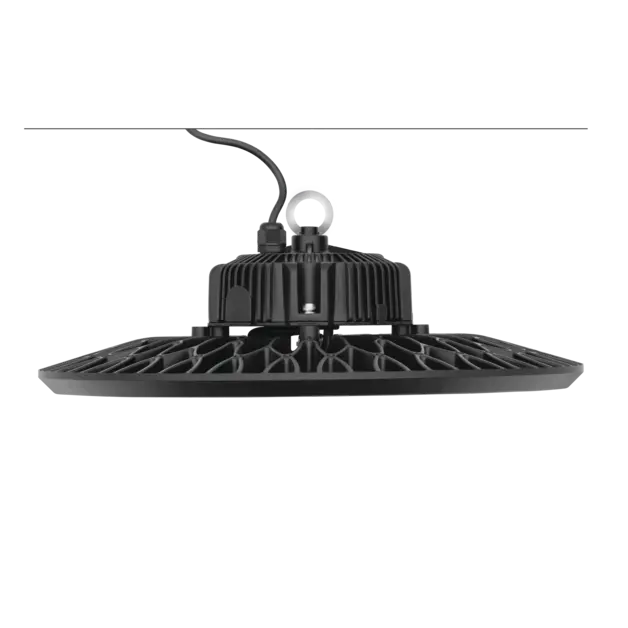

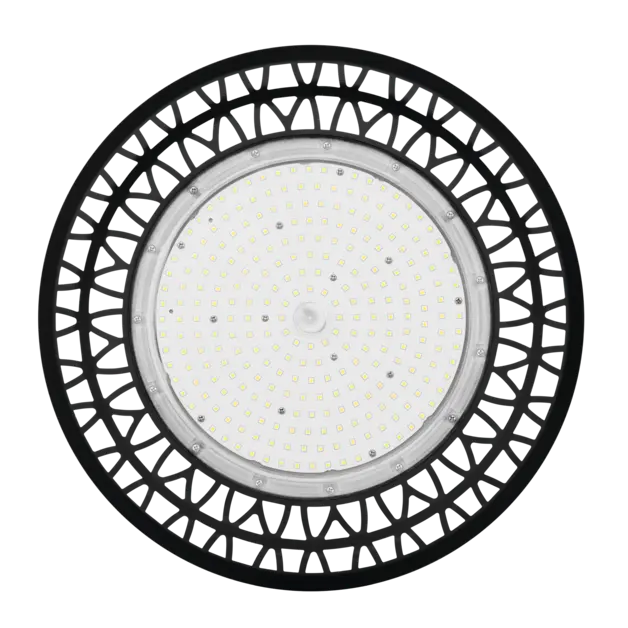

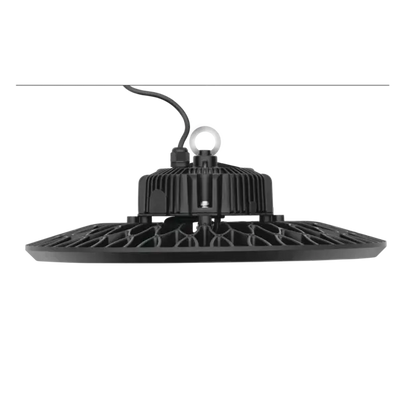

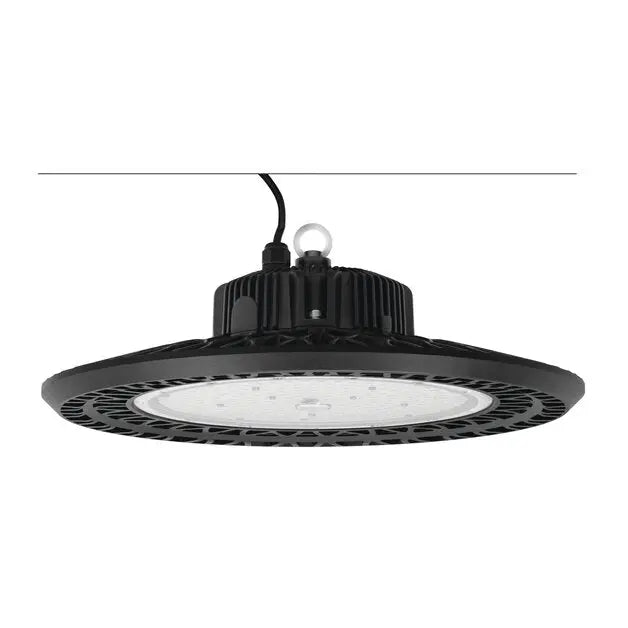

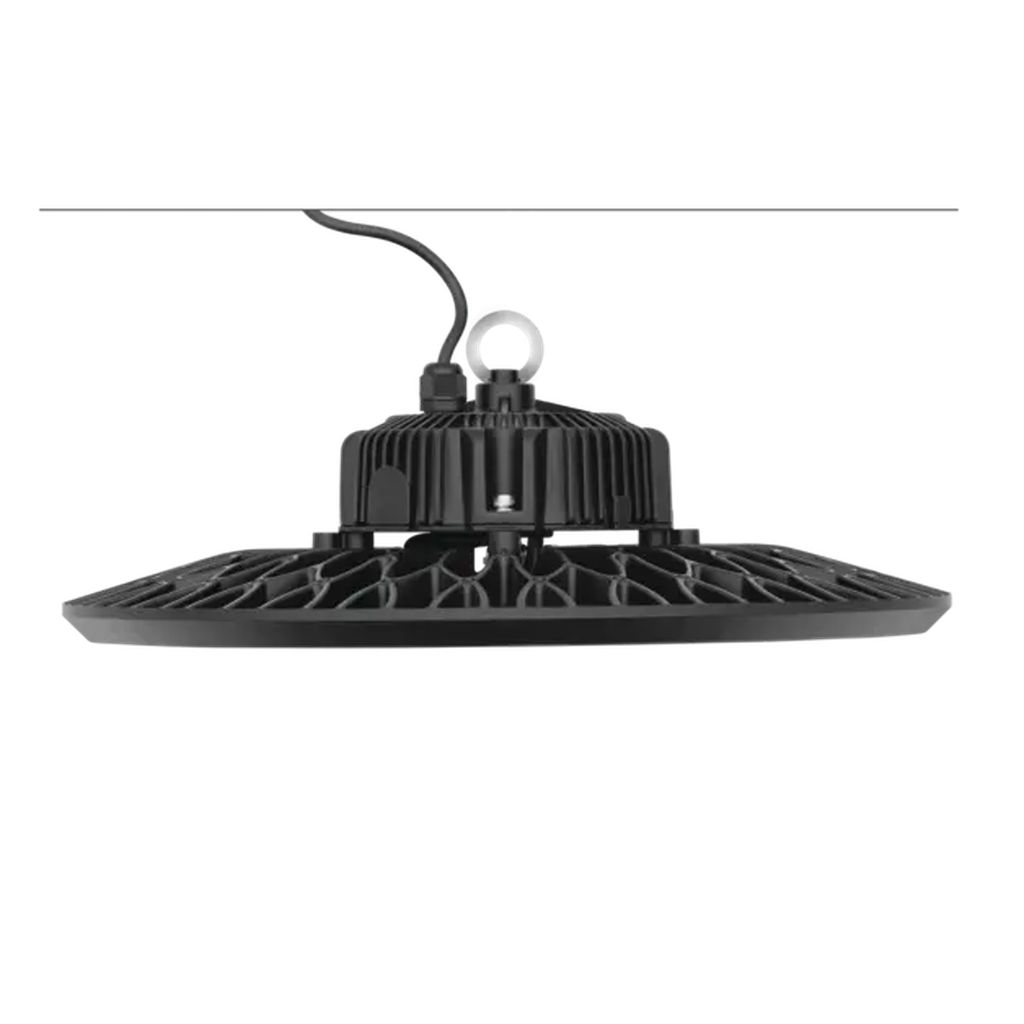

The ID1009 is a high-performance, suspended LED luminaire engineered for demanding industrial environments. Its robust construction and superior luminous efficacy make it ideal for warehouses, manufacturing facilities, and other large-scale applications.
🔍 Key Features:
High Luminous Efficacy: Delivers up to 140 lm/W, ensuring optimal brightness with minimal energy consumption.
Durable Construction: Features a die-cast aluminum housing with a transparent diffuser, providing long-lasting performance in harsh conditions.
Flexible Beam Angles: Available in 60° and 120° beam angles to suit various lighting requirements.
Control Compatibility: Available with ON/OFF or DALI drivers; optional emergency module and motion sensor integrations for enhanced functionality.
Certified Quality: Compliant with CE and HACCP+ standards, ensuring reliability and safety.
🏭 Ideal Applications:
Warehouses, manufacturing areas, transportation routes, residential lofts, and other spaces requiring high-performance industrial lighting.
📐 Technical Specifications:
Power Consumption: 150–200W
Luminous Flux: 19,950–26,600 lm
Luminous Efficacy: 124–140 lm/W
Colour Temperature: 4000K
CRI: 80
MacAdam SDCM: 3
UGR: 31
Driver Options: ON/OFF, DALI
Emergency Module: Optional
Motion Sensor: Optional
Protection Rating: IP65
Impact Resistance: IK10
Class of Protection: Class I
Housing Material: Die-cast aluminum
Diffuser Material: Transparent plastic
Mounting Options: Suspended
Dimensions: Height: 265 mm; Diameter: 405 mm
Weight: 8 kg
The ID1009 combines robust protection with high-performance lighting, making it a versatile choice for enhancing industrial environments with both style and functionality.
DIMENSIONS
NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.
WATTAGE | llm/W | LENGTH (L) | WIDTH (W) | HEIGHT (H) |
---|---|---|---|---|
150 |
20,950 llm |
405 | 265 | |
200 |
26,600 llm |
405 | 265 |
