ID1012

ID1012

INDUSTRIAL

A classic luminaire featuring a diffuser that utilises high-quality LED light sources for general illumination. This timeless design offers a warm and inviting atmosphere, making it suitable for a wide range of spaces, from homes to commercial environments. Its efficient LED technology ensures optimal lighting performance while reducing energy consumption.

  • Materials: Powder painted, steel sheet base in white color, end caps made of PC, semi-transparent grooven inside diffuser made of impact-resistant PMMA.
  • Installation:

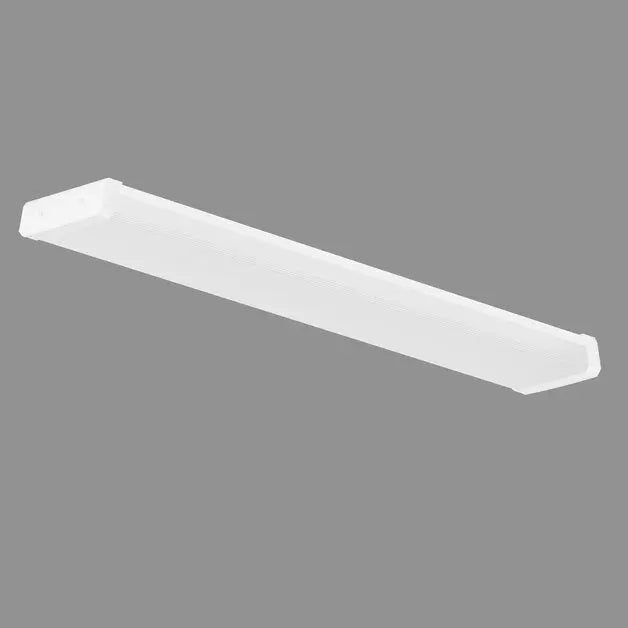

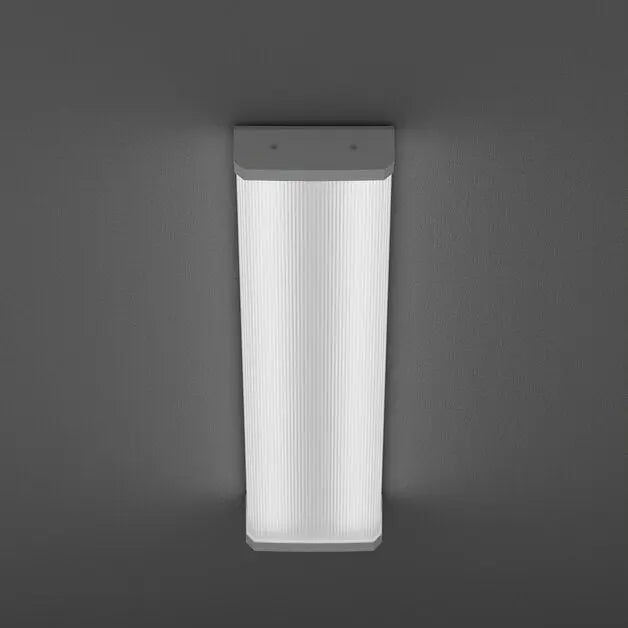

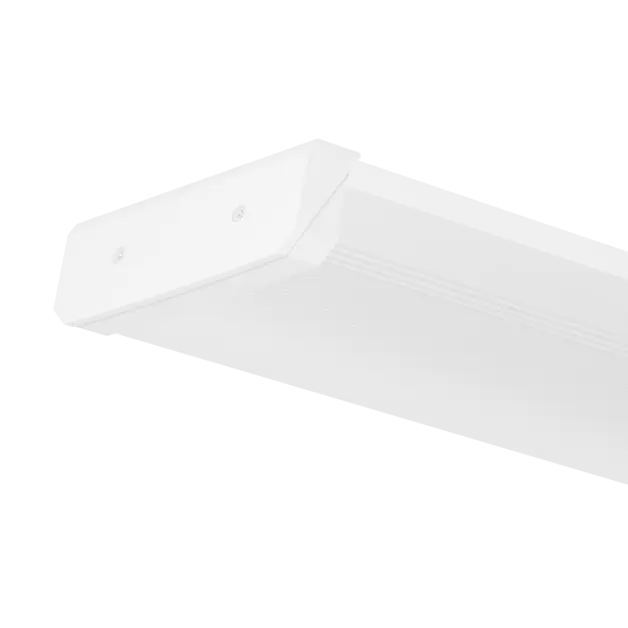

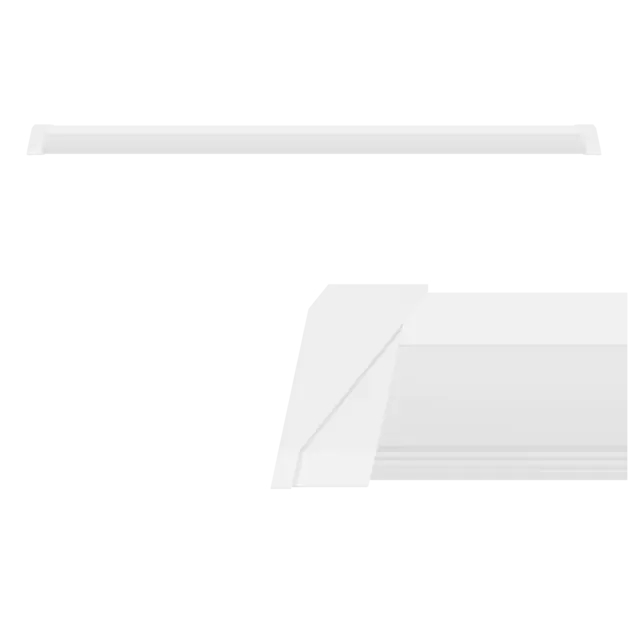

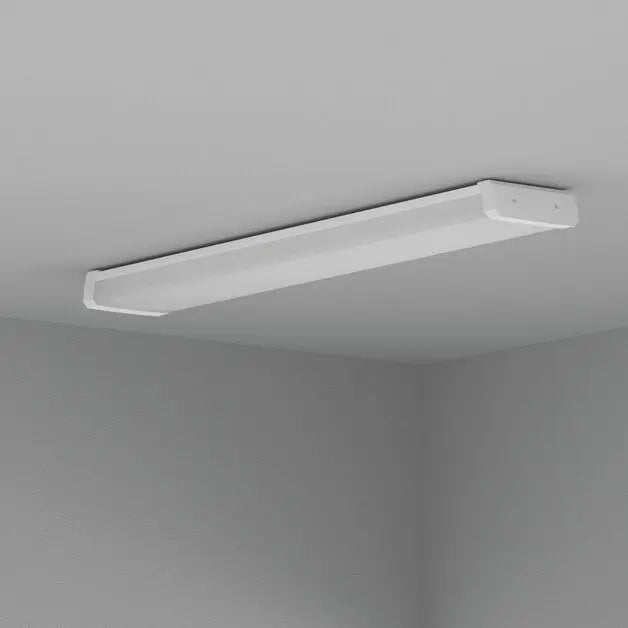

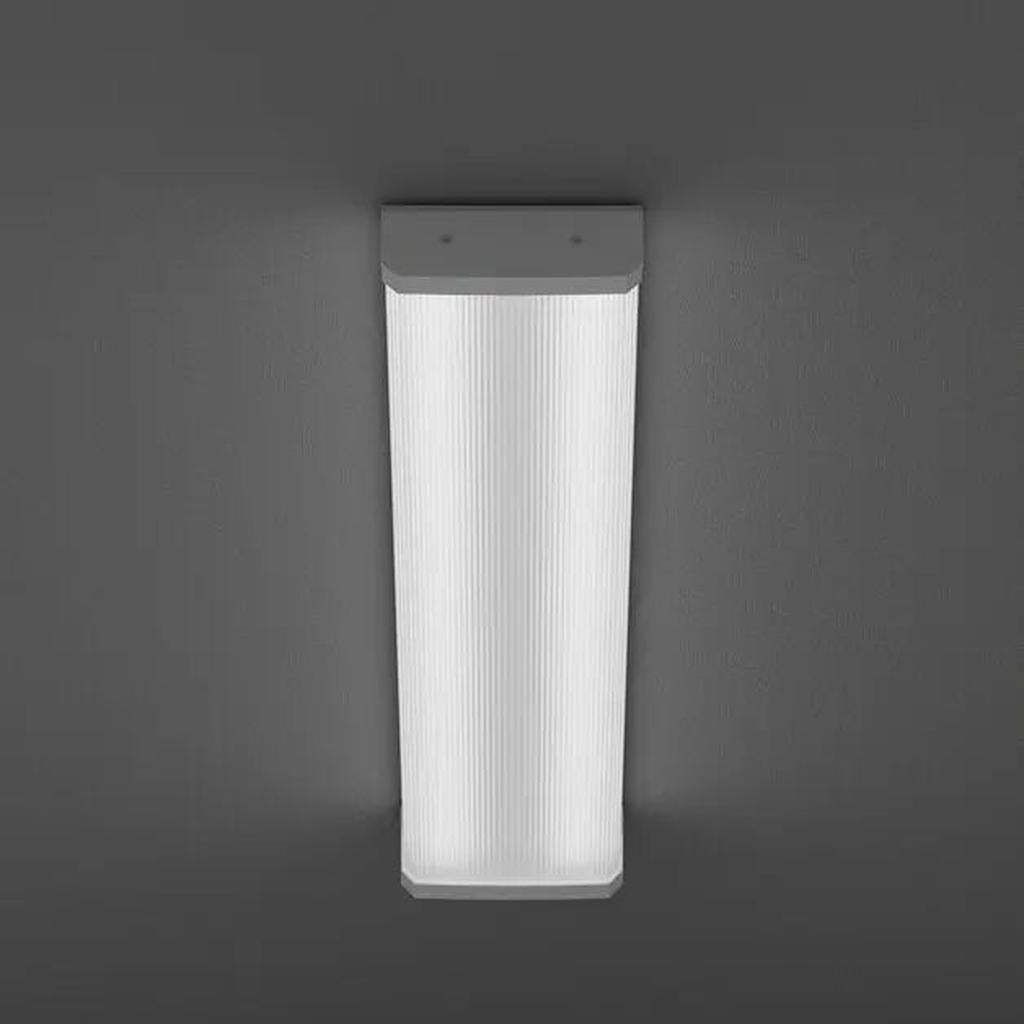

ID1012 | Surface Industrial Old "Skool" Style Linear Luminaire

The ID1012 is a versatile, energy-efficient LED luminaire designed for general-purpose lighting in commercial and institutional settings. Its sleek profile and high-performance output make it ideal for corridors, receptions, stairwells, and other high-traffic areas.

🔍 Key Features:

  • High Efficiency: Delivers up to 144 lm/W, ensuring optimal brightness with minimal energy consumption.​

  • Durable Construction: Features a powder-coated steel base with impact-resistant opal polycarbonate diffuser for long-lasting performance.​

  • Flexible Mounting Options: Suitable for ceiling, wall, or suspended installations to accommodate various spatial requirements.​

  • Control Compatibility: Available with ON/OFF or DALI drivers; optional emergency module and motion sensor integrations for enhanced functionality.​

  • Certified Quality: Compliant with CE, ENEC, HACCP+, and PZH standards, ensuring reliability and safety.​

🏢 Ideal Applications:

Corridors, staircases, receptions, technical rooms, and other areas requiring consistent and efficient lighting solutions

📐 Technical Specifications:

  • Power Consumption: 13–39W​

  • Luminous Flux: 1,550–5,620 lm​

  • Luminous Efficacy: Up to 144 lm/W​

  • Colour Temperature: 3000K or 4000K​

  • CRI: 80 or 90​

  • MacAdam SDCM: 3​

  • UGR: 18–19​

  • Driver Options: ON/OFF, DALI​

  • Emergency Module: Optional​

  • Motion Sensor: Optional​

  • Protection Rating: IP40​

  • Impact Resistance: IK07​

  • Class of Protection: Class I​

  • Housing Material: Powder-coated steel sheet​

  • Diffuser Material: Opal polycarbonate​

  • Mounting Options: Ceiling-mounted, wall-mounted, or suspended​

  • Dimensions: 565 mm, 1060 mm, or 1555 mm length​

  • Weight: 1.3–3.1 kg​

The ID1012 combines sleek design with robust performance, making it a reliable choice for enhancing various indoor environments with efficient and uniform lighting.


DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE llm/W LENGTH (L) WIDTH (W) HEIGHT (H)
13
1,870 llm
 565 161 60
26
3,750 llm
 1060 161 60
39
5,620 llm
 1555 161 60
CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
