• IN1015.
1 1

ID1015

ID1015

INDUSTRIAL

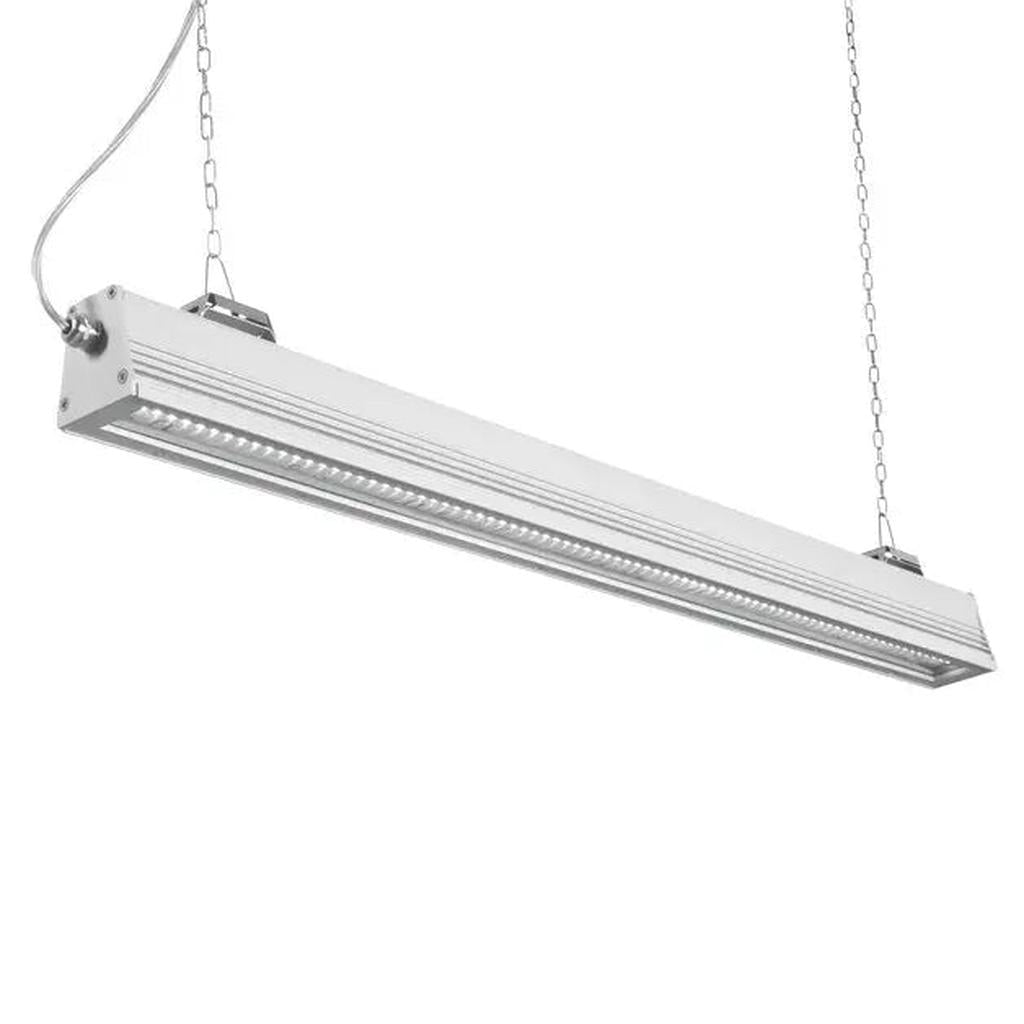

The IN1015 is a modern, hermetic luminaire designed for multiple functions, making it perfect for illuminating aisles, passageways, storage areas, warehouses, and all types of industrial spaces. This luminaire features the latest generation of LED sources, housed in a stylish aluminium casing with an IP65 protection rating. Its design ensures easy installation and allows for smooth adjustment of fastener spacing, providing flexibility for various mounting configurations. With its robust construction and efficient lighting performance, the IN1015 is an ideal choice for enhancing visibility and safety in demanding environments.

  • Materials: Aluminum profile, transparent PC plate (IP65), matte tempered glass SH MAT. FROSTED version - frosted optical system cover under transparent diffuser, CLEAR version - transparent optical system cover under transparent diffuser. NOTE: the cable for connecting into a lighting line is not supplied with the luminaires. TH5 wiring blocks are located at both ends of the luminaire. Connecting the luminaires in a line should be done with an external cable led outside the adjacent luminaires.
  • Installation:

ID1015 | Suspended Linear High IP65 Industrial LED Luminaire

The ID1015  is a modern, hermetically sealed LED luminaire designed for versatile industrial applications.

Its robust construction and high luminous efficacy make it ideal for lighting aisles, passageways, storage areas, warehouses, and various industrial spaces.

🔍 Key Features:

High Luminous Efficacy: Delivers up to 133 lm/W, ensuring optimal brightness with minimal energy consumption.​

Durable Construction: Features an aluminum housing with a transparent polycarbonate plate and matte tempered glass, providing long-lasting performance in harsh conditions.​

Flexible Mounting Options: Suitable for suspended or surface-mounted installations to accommodate various spatial requirements.​

Control Compatibility: Available with ON/OFF or DALI drivers; optional emergency module and motion sensor integrations for enhanced functionality.​

Certified Quality: Compliant with CE, HACCP+, and EAC standards, ensuring reliability and safety.

🏭 Ideal Applications:

Laboratories, garages, technical rooms, security areas, social rooms, sport facilities, parking garages, arcades, and car parks. ​

📐 Technical Specifications:

Power Consumption: 23–37W​

Luminous Flux: 2,410–4,920 lm​

Luminous Efficacy: 105–133 lm/W​

Colour Temperature: 3000K or 4000K​

CRI: 80 or 90​

MacAdam SDCM: 3​

Driver Options: ON/OFF, DALI​

Emergency Module: Optional​

Motion Sensor: Optional​

Protection Rating: IP65​

Impact Resistance: IK08​

Class of Protection: Class I​

Housing Material: Aluminum​

Diffuser Material: Transparent polycarbonate plate and matte tempered glass​

Mounting Options: Suspended or surface-mounted​

Dimensions: 910 mm, 1200 mm, or 1490 mm length​

Weight: 2.3–3.8 kg

The ID1015 combines robust protection with high-performance lighting, making it a versatile choice for enhancing industrial environments with both style and functionality

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE llm/W LENGTH (L) WIDTH (W) HEIGHT (H)
23

2,950 llm

 910 62 93
27

3,160 llm

 910 62 93
30

3,210 llm

 1200 62 93
35

4,130 llm

 1200 62 93
37

4,190 llm

 1490 62 93
43

5,520 llm

 1490 62 93
