ID1016

ID1016

INDUSTRIAL

An industrial luminaire designed for LED light sources, ideal for inline installation. This luminaire features a straightforward installation process that requires no additional tools, ensuring quick and easy setup. The use of LED light sources not only makes the luminaire lighter but also enhances its energy efficiency during operation. Its aluminium reflector optimises light distribution, providing effective illumination. The luminaire is specifically designed for lighting service areas, warehouses, and supermarkets, making it a versatile solution for a range of commercial applications.

  • Materials: Housing made of electrostatically painted aluminum (standard color: white), microprismatic diffuser (MPRM) made of PMMA or OPAL diffuser made of polycarbonate.
  • Installation:

ID1016 | Linear LED Luminaire for Continuous Line Installations

The ID1016 is a versatile linear LED luminaire designed for continuous line installations in commercial and industrial settings. Its modular design and high luminous efficacy make it ideal for supermarkets, warehouses, and production halls.

🔍 Key Features:

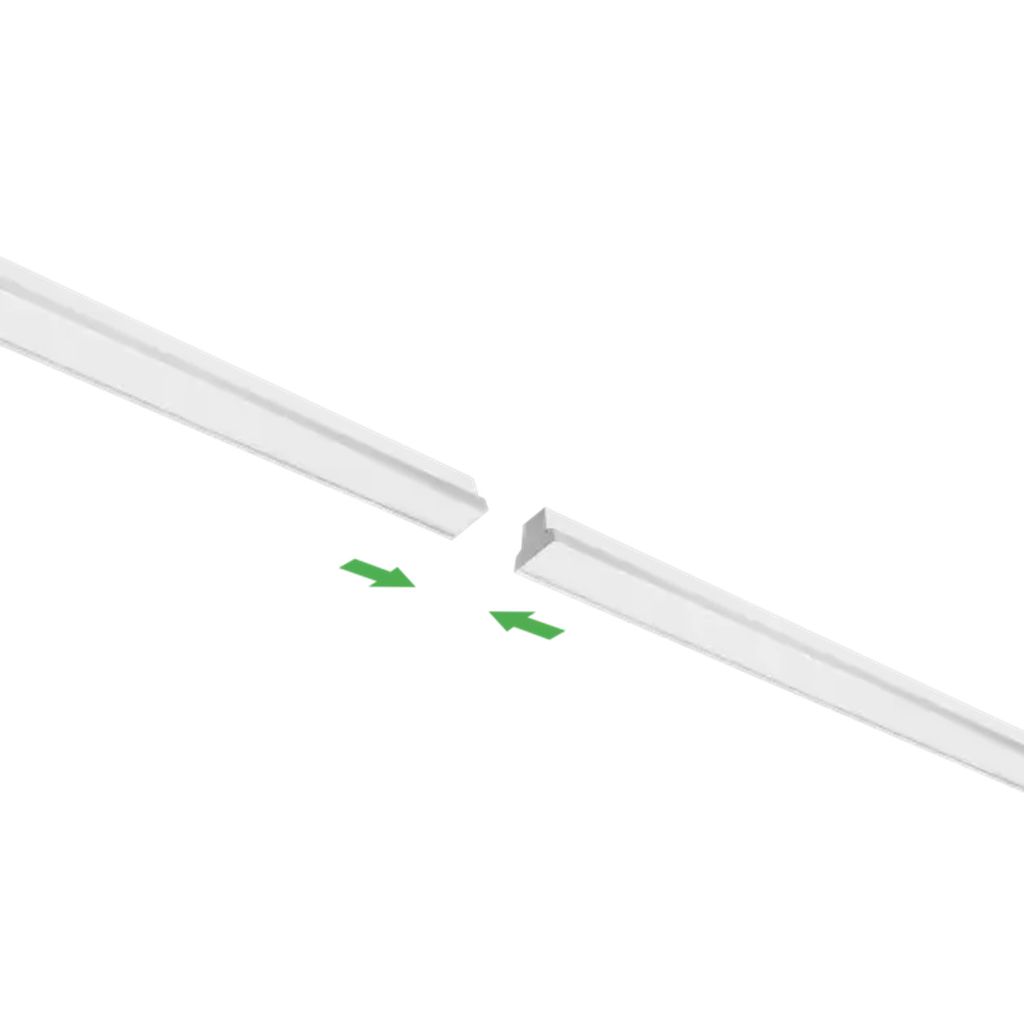

  • Modular Design: Facilitates seamless continuous line installations without the need for additional tools.

  • High Luminous Efficacy: Delivers up to 123 lm/W, ensuring optimal brightness with minimal energy consumption.​

  • Durable Construction: Features an electrostatically painted aluminum housing with a microprismatic (MPRM) or opal diffuser, providing long-lasting performance in various environments.​

  • Flexible Mounting Options: Suitable for suspended installations to accommodate various spatial requirements.​

  • Control Compatibility: Available with ON/OFF or DALI drivers; optional emergency module and motion sensor integrations for enhanced functionality.​

  • Certified Quality: Compliant with CE, HACCP+, and EAC standards, ensuring reliability and safety.

🏭 Ideal Applications:

Supermarkets, warehouses, production halls, service spaces, and other commercial or industrial environments

📐 Technical Specifications:

  • Power Consumption: 47–118W

  • Luminous Flux: 4,590–14,420 lm​

  • Luminous Efficacy: 94–123 lm/W​

  • Colour Temperature: 3000K, 3500K, or 4000K​

  • CRI: 80 or 90

  • MacAdam SDCM: 3​

  • UGR: 20–23​

  • Driver Options: ON/OFF, DALI​

  • Emergency Module: Optional​

  • Motion Sensor: Optional​

  • Protection Rating: IP20​

  • Impact Resistance: IK04​

  • Class of Protection: Class I

  • Housing Material: Aluminum​

  • Diffuser Material: Microprismatic (MPRM) or opal​

  • Mounting Options: Suspended​

  • Dimensions: 1200 mm, 1800 mm, or 3000 mm length​

  • Weight: 3.25–8.3 kg​


DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE llm/W LENGTH (L) WIDTH (W) HEIGHT (H)
47
5,770 llm
 1200 100 75
73
8,650 llm
 1800 100 75
118
14,420 llm
 3000 100 75
CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
