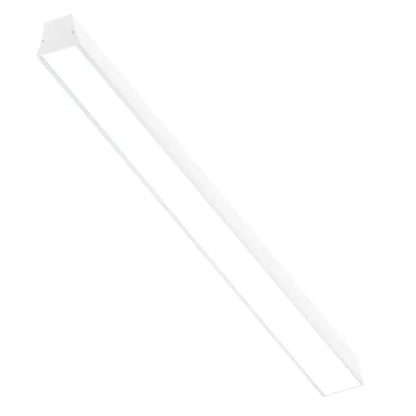

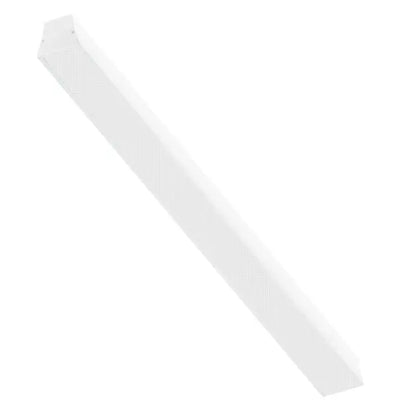

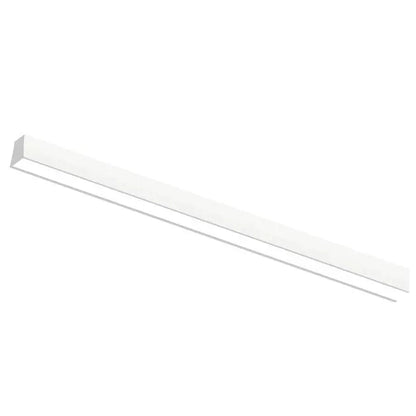

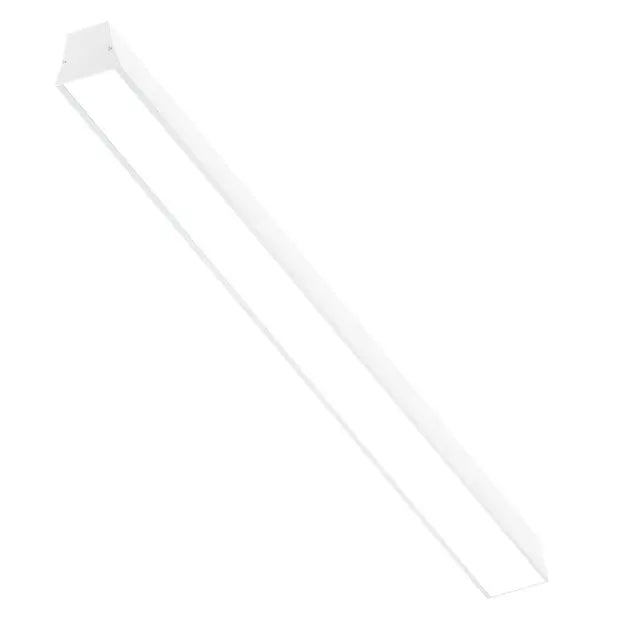

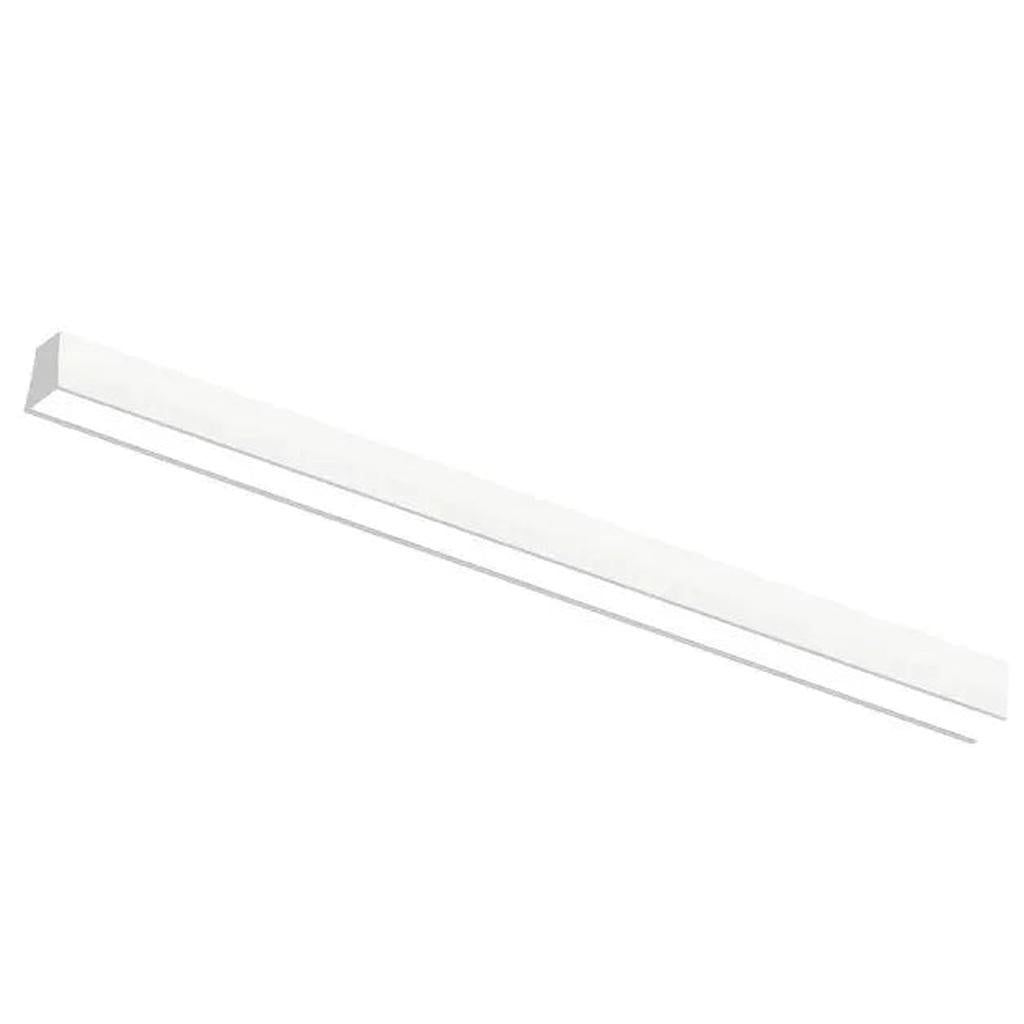

ID1018 | Slimline Linear LED Luminaire for Continuous Line Installations

The ID1018 is a sleek and efficient linear LED luminaire designed for continuous line installations in commercial and industrial settings. Its compact design and high luminous efficacy make it ideal for supermarkets, warehouses, and production halls.

🔍 Key Features:

• Compact Design: Slim profile ideal for spaces with limited ceiling height or where a minimalist aesthetic is desired.​

• High Luminous Efficacy: Delivers up to 118 lm/W, ensuring optimal brightness with minimal energy consumption.​

• Durable Construction: Features an electrostatically painted aluminum housing with a microprismatic (MPRM) or opal diffuser, providing long-lasting performance in various environments.​

• Flexible Mounting Options: Suitable for suspended installations to accommodate various spatial requirements.​

• Control Compatibility: Available with ON/OFF , DALI, Wireless drivers; optional emergency module and motion sensor integrations for enhanced functionality.​

• Certified Quality: Compliant with CE, HACCP+, and EAC standards, ensuring reliability and safety

🏭 Ideal Applications:

Supermarkets, warehouses, production halls, service spaces, and other commercial or industrial environments.

📐 Technical Specifications:

• Power Consumption: 25–61W​

• Luminous Flux: 2,700–7,220 lm​

• Luminous Efficacy: 108–118 lm/W

• Colour Temperature: 3000K or 4000K​

• CRI: 80​

• MacAdam SDCM: 3​

• UGR: 18–21​

• Driver Options: ON/OFF, DALI​

• Emergency Module: Optional​

• Motion Sensor: Optional​

• Protection Rating: IP20​

• Impact Resistance: IK04​

• Class of Protection: Class I​

• Housing Material: Aluminum​

• Diffuser Material: Microprismatic (MPRM) or opal​

• Mounting Options: Suspended​

• Dimensions: 1200 mm, 1800 mm, or 3000 mm length​

• Weight: 2.95–7.05 kg

The ID1018 combines a slim profile with high-performance lighting, making it a versatile choice for enhancing commercial and industrial environments with both functionality and efficiency.

​DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.
