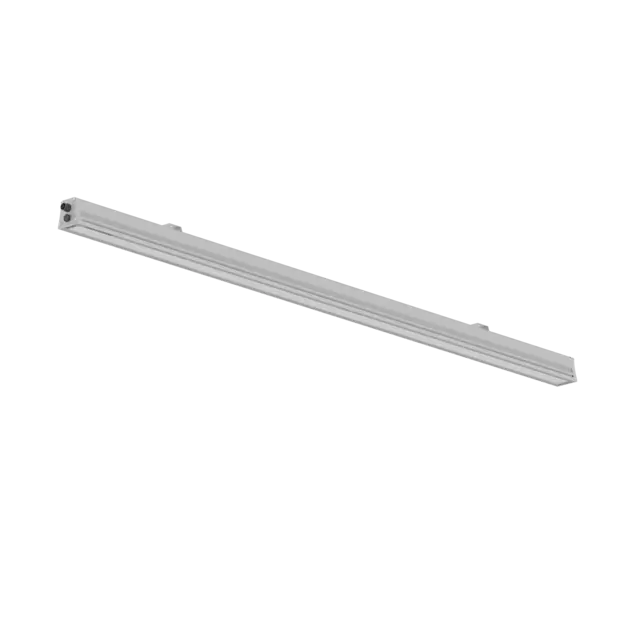

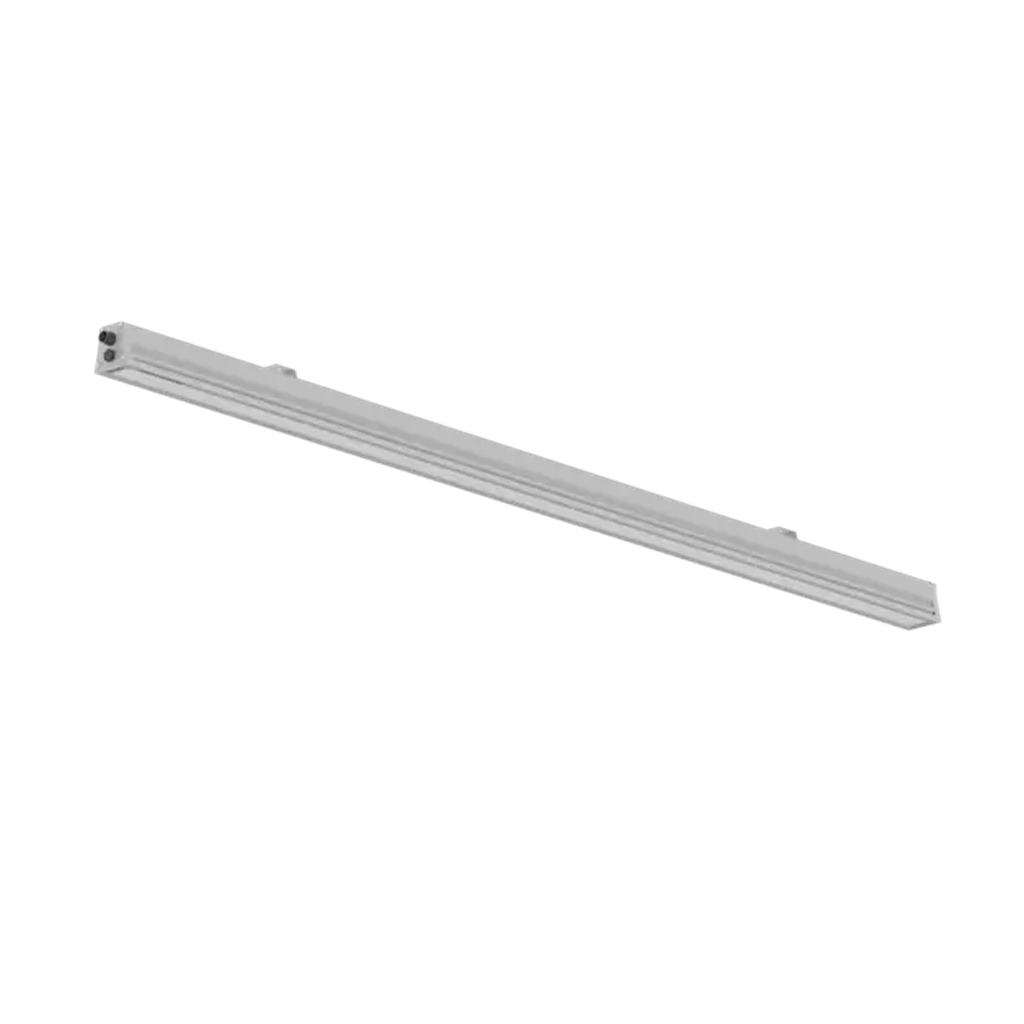

The IN1020 is a modern, hermetic luminaire designed for multiple functions, making it ideal for lighting aisles, passageways, storage areas, warehouses, and various industrial spaces. It is equipped with the latest generation of LED sources, enclosed in an aesthetically pleasing aluminium housing with an IP66 protection rating, ensuring durability in demanding environments. The luminaire offers easy installation and allows for smooth adjustment of fastener spacing, providing flexibility for different mounting configurations. With its robust design and efficient lighting performance, the IN1020 enhances visibility and safety in any industrial setting.

  • Materials: Electrostatically painted aluminium housing (grey colour in standard). Possibility of painting in any color from RAL palette. Tempered glass (transparent SH for versions: 45° and 65°, matte SH MAT for versions 100°). Through wiring on request. Element for the reduction of condensation by pressure compensation in power distribution systems.
  • Installation:

ID1020 | Linear High Impact IK10 IP66 Industrial LED Luminaire

The ID1020 is a robust, hermetically sealed LED luminaire designed for demanding industrial environments. Its high ingress protection and impact resistance make it ideal for applications such as laboratories, garages, and technical rooms.

🔍 Key Features:

High Luminous Efficacy: Delivers up to 161 lm/W, ensuring optimal brightness with minimal energy consumption.​

Durable Construction: Features an aluminum housing with a tempered glass diffuser, providing long-lasting performance in harsh conditions.​

Flexible Mounting Options: Suitable for suspended or surface-mounted installations to accommodate various spatial requirements.​

Control Compatibility: Available with ON/OFF or DALI drivers; optional emergency module and motion sensor integrations for enhanced functionality.​

Certified Quality: Compliant with CE, HACCP+, and EAC standards, ensuring reliability and safety.

🏭 Ideal Applications:

Laboratories, garages, technical rooms, security areas, social rooms, sport facilities, parking garages, arcades, and car parks.

📐 Technical Specifications:

Power Consumption: 42–121W​

Luminous Flux: 5,200–19,540 lm​

Luminous Efficacy: 124–161 lm/W​

Colour Temperature: 3000K or 4000K​

CRI: 80​

MacAdam SDCM: 3​

UGR: 22–26​

Driver Options: ON/OFF, DALI​

Emergency Module: Optional​

Motion Sensor: Optional​

Protection Rating: IP66​

Impact Resistance: IK10​

Class of Protection: Class I​

Housing Material: Aluminum​

Diffuser Material: Tempered glass​

Mounting Options: Suspended or surface-mounted​

Dimensions: 600 mm, 1160 mm, or 1720 mm length​

Weight: 2.5–6 kg

The ID1020 combines robust protection with high-performance lighting, making it a versatile choice for enhancing industrial environments with both style and functionality.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE llm/W LENGTH (L) WIDTH (W) HEIGHT (H)
42

6,510 llm

 600 64 64
81

13,030 llm

 1160 64 64
121

16,060 llm

 1720 64 64
