ID1021

ID1021

INDUSTRIAL

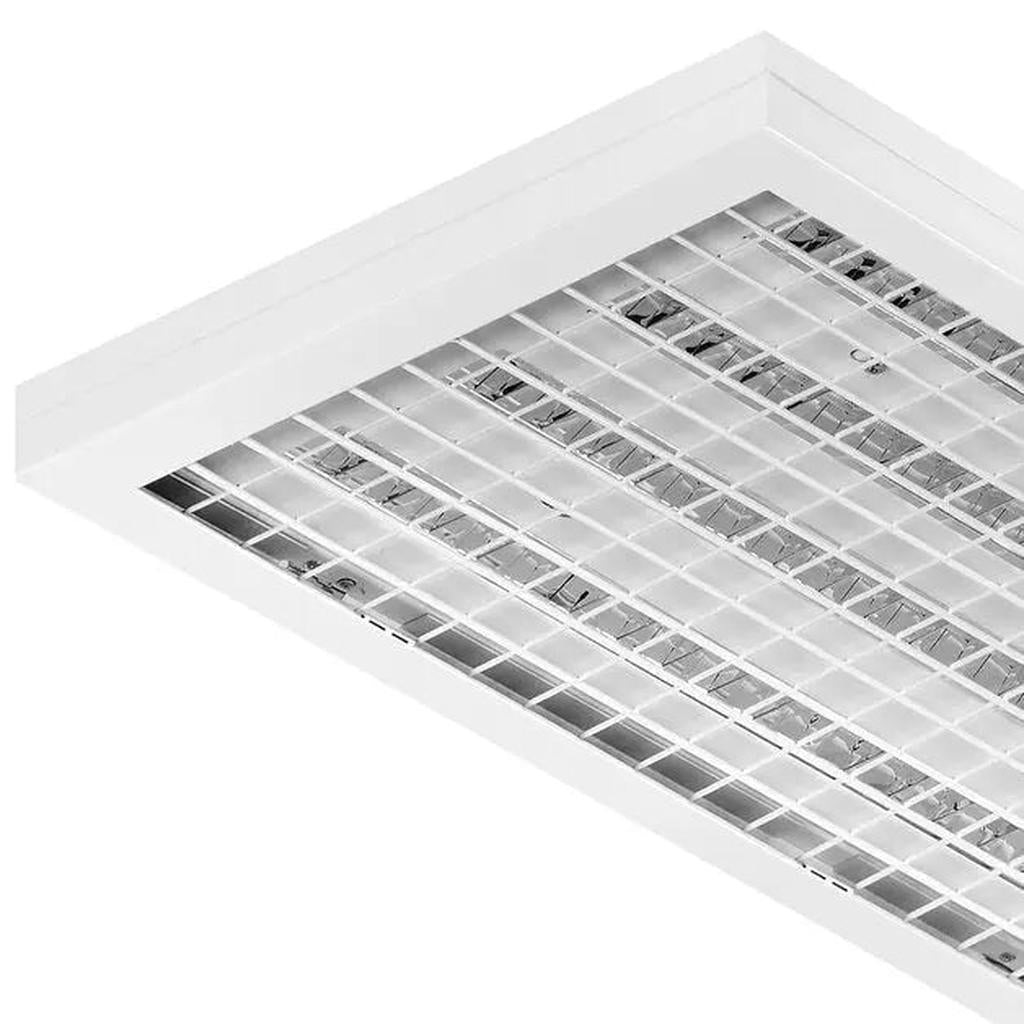

The IN1021 is a modern luminaire featuring high optical and technical specifications, specifically designed for sports facilities such as tennis and squash courts. It is characterised by symmetrically placed aluminium louvers and a protective grid, ensuring optimal light distribution and durability. With an IK10 degree of impact resistance, this luminaire is built to withstand tough conditions. Additionally, it is certified for IK impact resistance and against ball throwing, meeting standards set by DIN 18032-3:1997-04 and DIN EN 13964:2014-08. This makes the IN1021 an ideal choice for enhancing visibility and safety in sports environments.

  • Materials: Powder painted steel sheet body in white colour, parabolic (PAR) louver made of anodized, polished aluminum of high purity and MPRM diffuse. Protection grid.
  • Installation:

ID1021 | Surface High Impact Sport High Bay Style Luminaire

The ID1021 is a high-performance LED luminaire engineered specifically for sports facilities requiring robust construction and superior lighting quality. Its durable design and advanced optical features make it ideal for environments such as tennis courts, squash courts, and gymnasiums.​

🔍 Key Features:

Impact Resistance: Certified to withstand ball impacts in accordance with DIN 18032-3:1997-04 and DIN EN 13964:2014-08 standards, ensuring durability in sports environments.

Robust Construction: Features a powder-coated steel sheet body with a protective grid and symmetrically placed anodized aluminum louvers for enhanced durability and light control.​

High Optical Performance: Delivers luminous efficacy up to 138 lm/W, providing bright and energy-efficient illumination.​

Versatile Mounting Options: Designed for surface or pendant mounting, accommodating various installation requirements.​

Control Options: Available with ON/OFF or DALI drivers. Optional emergency module and motion sensor integrations.​

🏟️ Ideal Applications:

Perfect for sports halls, gymnasiums, tennis and squash courts, and other indoor sports facilities where high-impact resistance and superior lighting are essential

📐 Technical Specifications:

Light Source: Integrated LED​

Power Consumption: 50–145W​

Luminous Flux: 5,100–20,000 lm​

Luminous Efficacy: 102–138 lm/W​

Colour Temperature: 3000K or 4000K​

CRI: 80 or 90​

MacAdam SDCM: 3​

UGR: 20 or 22​

Driver Options: ON/OFF, DALI​

Emergency Module: Optional​

Motion Sensor: Optional​

Protection Rating: IP20​

Impact Resistance: IK10​

Class of Protection: Class I​

Housing Material: Powder-coated steel sheet​

Diffuser Material: Prismatic plastic with parabolic aluminum louvers​

Dimensions: 1226x276 mm or 1226x486 mm​

Weight: 9–15.5 kg​

The ID1021 combines robust protection with high-performance lighting, making it a versatile choice for enhancing sports facilities with both durability and functionality.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE llm/W LENGTH (L) WIDTH (W) HEIGHT (H)
50

6,150 llm

 1226 276 65
100

12,300 llm

 1226 276 65
145

20,000 llm

 1226 276 65
