LS1001

LS1001

DECORATIVE

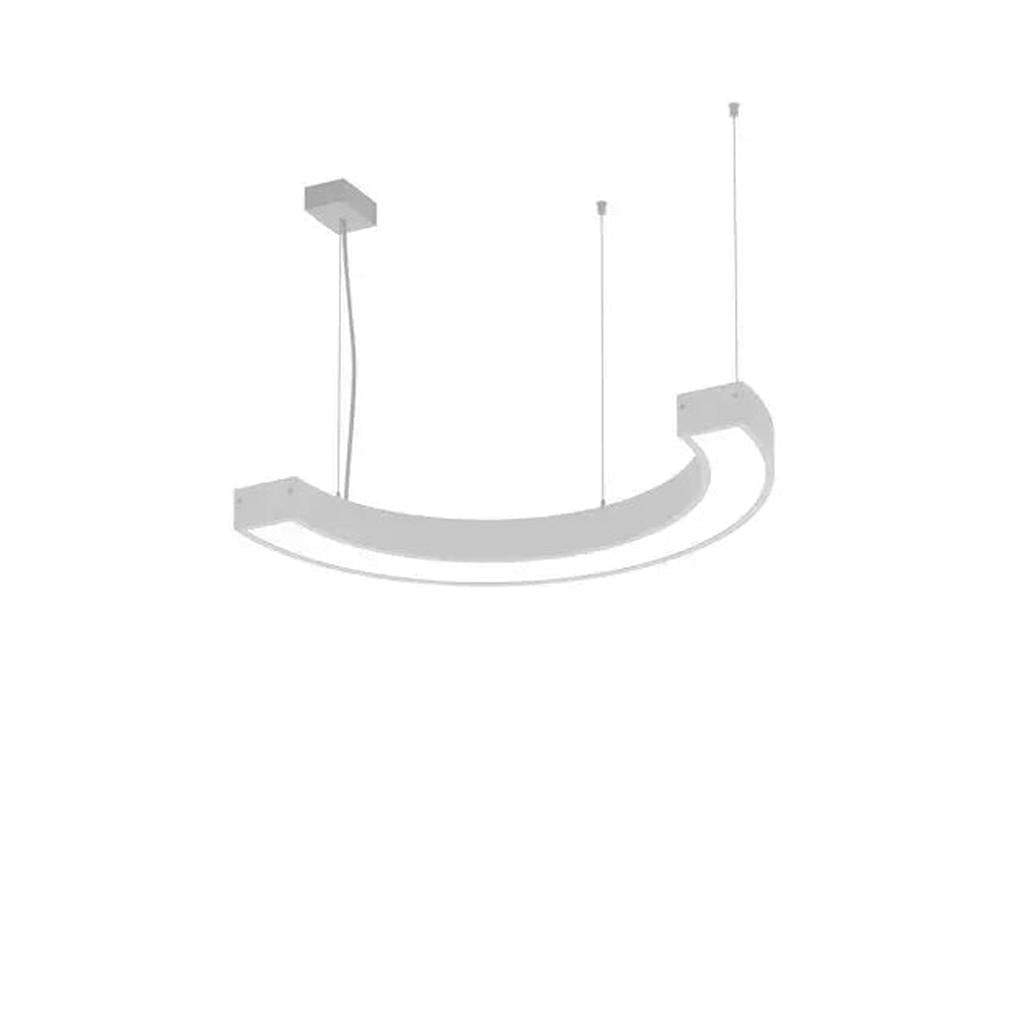

The LS1001 is a family of LED luminaires designed in a half-round shape. Their modern and versatile design makes them suitable for a wide range of indoor spaces. These luminaires offer the option for inline installation and connection, providing flexibility for various lighting configurations. Whether used in commercial or residential environments, the LS1001 luminaires deliver both functionality and style.

  • Materials: Powder painted aluminum profile (grey colour in standard). OPAL diffuser.
  • Installation:

LS1001 | Suspended Modular Arc LED Lighting System

The LS1001 is a modular suspended LED lighting system featuring a half-arc design. Its geometric form and uniform illumination make it an ideal choice for adding a modern architectural statement to interior spaces.​

🔍 Key Features:

  • Architectural Design: Half-arc shape crafted from powder-coated aluminium, offering a contemporary aesthetic.​
  • Uniform Illumination: Equipped with an opal diffuser that ensures even light distribution, enhancing visual comfort.​
  • Efficient Performance: Delivers a luminous flux of up to 4,490 lumens with an efficacy of up to 100 lm/W, providing bright and energy-efficient lighting.​
  • Customisable Finish: Available in standard white, grey, black, or anthracite finishes, with the option for custom RAL colours to match specific design requirements.​
  • Suspended Installation: Designed for pendant mounting, supplied with a suspension kit for flexible installation heights.​
  • Control Options: Available with ON/OFF or DALI drivers. Optional motion sensor and emergency module integrations.​

🏢 Ideal Applications:

  • Perfect for offices, conference rooms, receptions, commercial spaces, corridors, and staircases where modern design and efficient lighting are essential.​

📐 Technical Specifications:

  • Light Source: Integrated LED​
  • Power Consumption: 45W​
  • Luminous Flux: 4,360–4,490 lm​
  • Luminous Efficacy: Up to 100 lm/W​
  • Colour Temperature: 3000K or 4000K​
  • CRI: 80​
  • MacAdam SDCM: 3​
  • UGR: ≤18 (depending on optics)​
  • Driver Options: ON/OFF, DALI​
  • Emergency Module: Optional​
  • Motion Sensor: Optional​
  • Protection Rating: IP40​
  • Impact Resistance: IK04​
  • Class of Protection: Class I​
  • Housing Material: Powder-coated aluminium
  • Diffuser Material: Opal/matt plastic​
  • Dimensions: Outer Diameter: 800 mm; Segment: 180°​
  • Weight: 2.2–10 kg​

The LS1001 combines unique design with high-performance lighting, making it a versatile choice for enhancing modern interiors with both style and functionality.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE LUMEN LENGTH (L) WIDTH (W) HEIGHT (H)
30

2,990 llm/W

2000 1/8 Ring 45°

 100 62
40

4,060 llm/W

 2000 1/6 Ring 60° 100 62
45

4,490 llm/W

 800 1/2 Ring 180° 100 62
60

6,200 llm/W

 2000 1/4 Ring 90° 100 62
70

7.270llm/W

 1200 1/2 Ring 180° 100 62
CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
