LS1002

LS1002 | Suspended Modular Linear LED Lighting System

The LS1002 is a versatile suspended LED lighting system featuring a sleek linear design.

Its modular construction allows for seamless integration into various architectural settings, providing both functional illumination and aesthetic enhancement.​

🔍 Key Features:

Modular Design: Straight-line profile crafted from powder-coated aluminium, enabling continuous light-line configurations.

Uniform Illumination: Equipped with an opal diffuser that ensures even light distribution, enhancing visual comfort.​

Efficient Performance: Delivers a luminous flux ranging from 1,990 to 10,270 lumens, achieving an efficacy of up to 113 lm/W.​

Customisable Finish: Available in standard white, grey, or black finishes, with the option for custom RAL colours to match specific design requirements.​

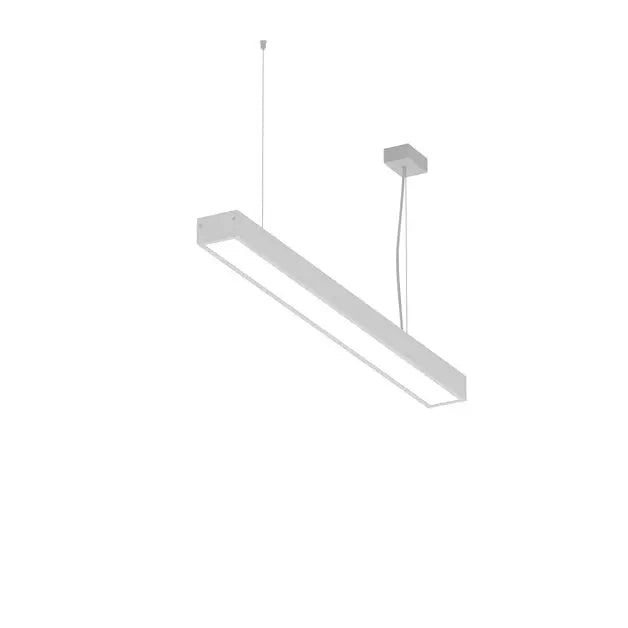

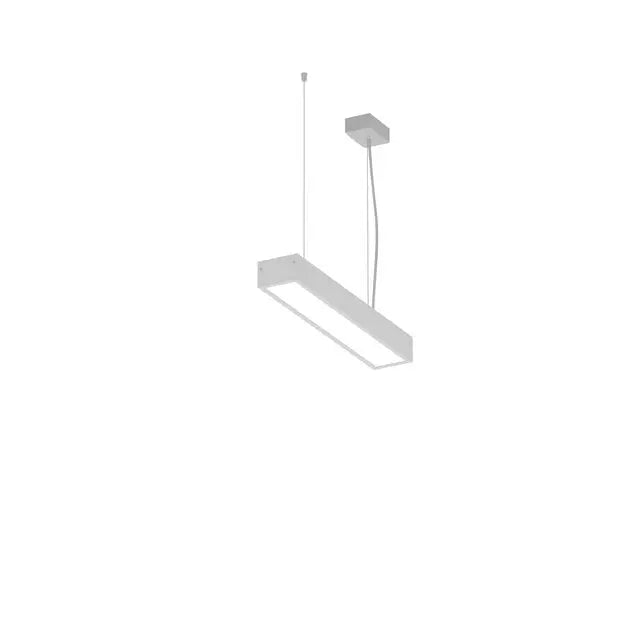

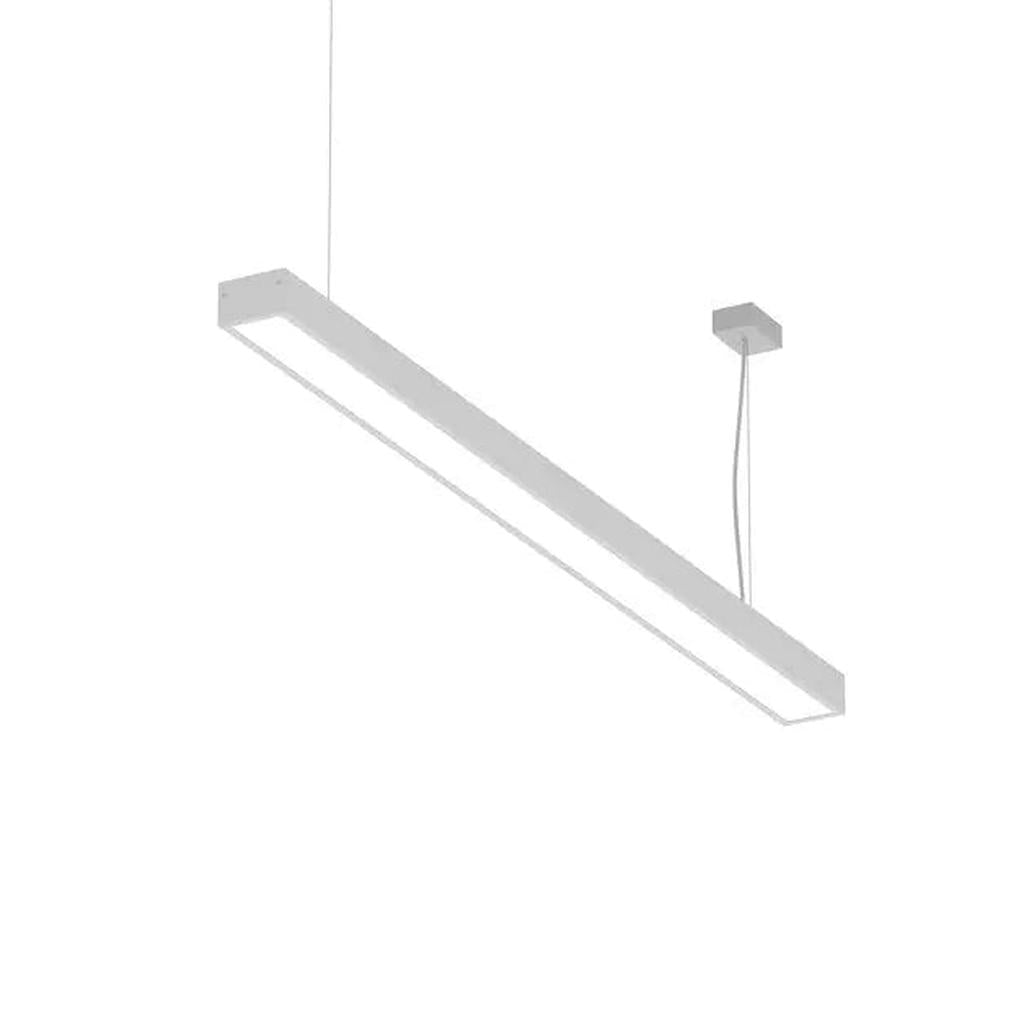

Suspended Installation: Designed for pendant mounting, supplied with a suspension kit for flexible installation heights.​

Control Options: Available with ON/OFF or DALI drivers. Optional motion sensor and emergency module integrations.​

🏢 Ideal Applications:

Perfect for offices, conference rooms, receptions, commercial spaces, corridors, and staircases where modern design and efficient lighting are essential.​

📐 Technical Specifications:

Light Source: Integrated LED​

Power Consumption: 24–92W​

Luminous Flux: 1,990–10,270 lm​

Luminous Efficacy: Up to 113 lm/W​

Colour Temperature: 3000K or 4000K​

CRI: 80 or 90​

MacAdam SDCM: 3​

UGR: ≤23​

Driver Options: ON/OFF, DALI​

Emergency Module: Optional​

Motion Sensor: Optional​

Protection Rating: IP40​

Impact Resistance: IK04​

Class of Protection: Class I​

Housing Material: Powder-coated aluminium​

Diffuser Material: Opal/matt plastic​

Dimensions: Length options: 545 mm, 1085 mm, 1625 mm, 2170 mm​

Weight: 1.9–5.9 kg​

The LS1002 combines sleek design with high-performance lighting, making it a versatile choice for enhancing modern interiors with both style and functionality.
