LIGHTING SYSTEMS

The LS1003 is a new LED lighting system specifically designed for inline installation. This elegant and efficient luminaire is perfect for illuminating offices, conference rooms, receptions, and other workspaces. Its sleek design enhances the aesthetic of professional environments while providing effective lighting solutions that promote productivity and comfort. With its modern technology, the LS1003 ensures energy efficiency and optimal performance, making it an ideal choice for contemporary office settings.

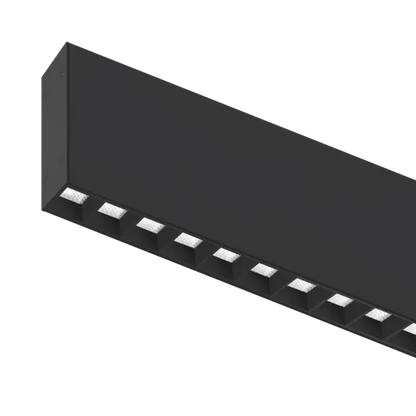

LS1003 | Compact Pendant-Mounted Linear LED Profile for Continuous Light-Line Applications

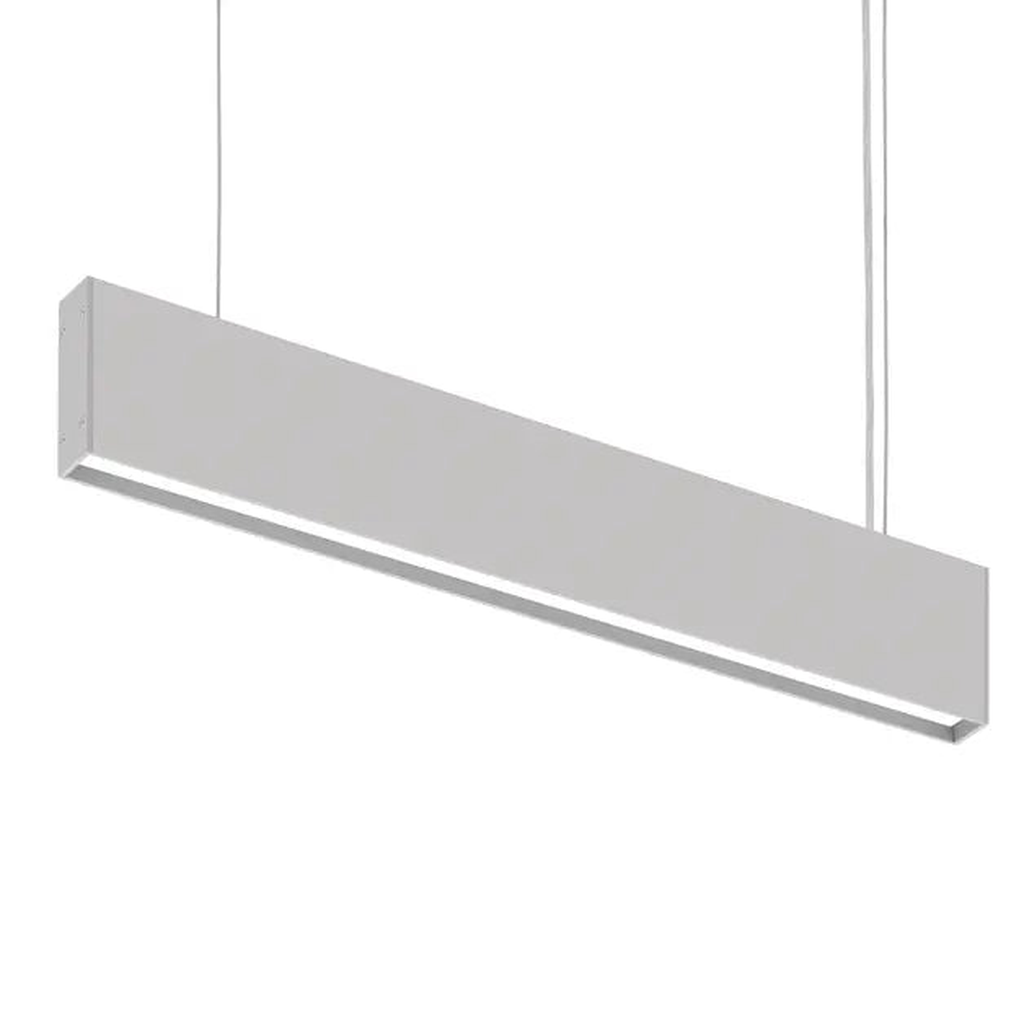

LS1003 is a sleek, low-profile suspended LED luminaire engineered for clean architectural lighting layouts. Designed for inline installation, it offers refined optical control, scalable outputs, and discreet integration — ideal for commercial spaces where lighting must work without stealing the spotlight.

🧩 Key Features:

• Slimline Profile Design: Minimalist housing ideal for low-visual-impact ceiling lighting
• Modular Length Options: Available in 545 mm, 1085 mm, 1625 mm, and 2170 mm for systemised layouts
• High Output Range: Up to 5,750 lm from just 12 – 48 W, delivering up to 120 lm/W

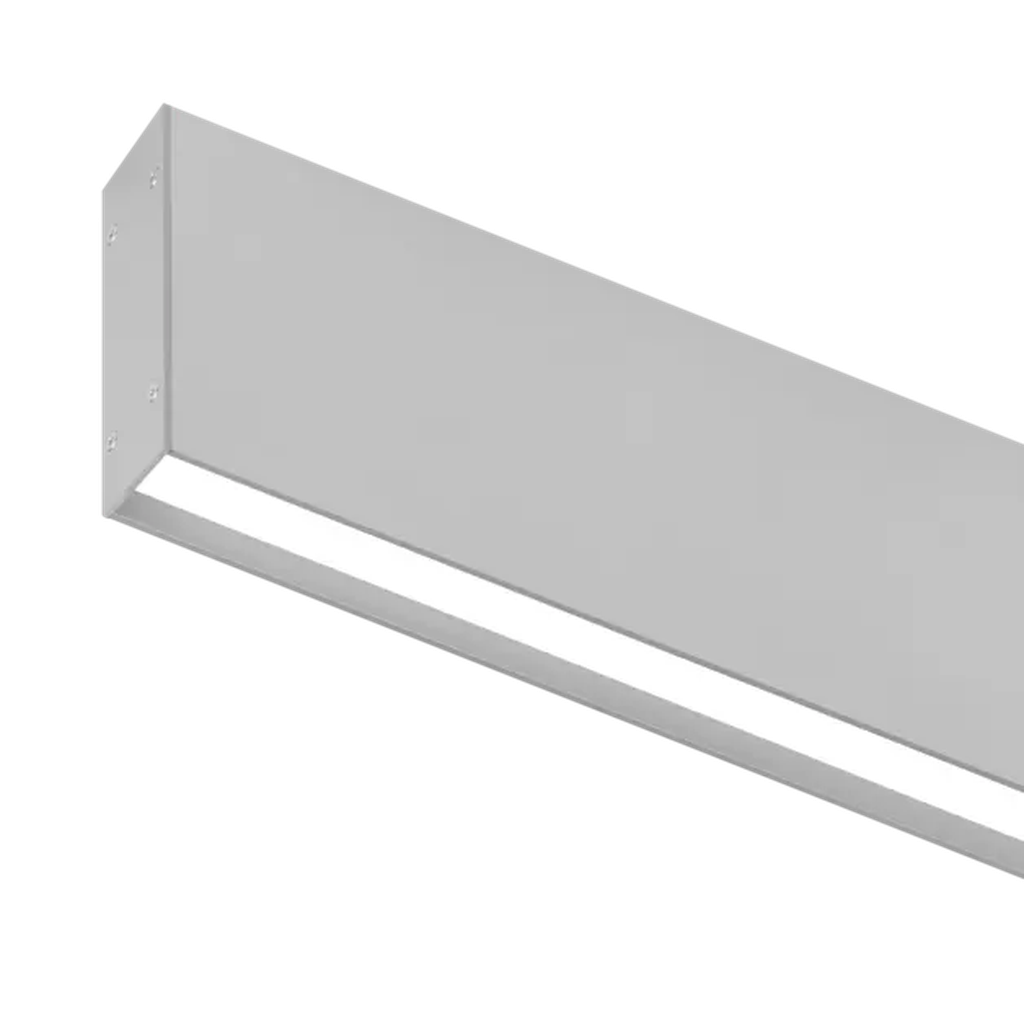

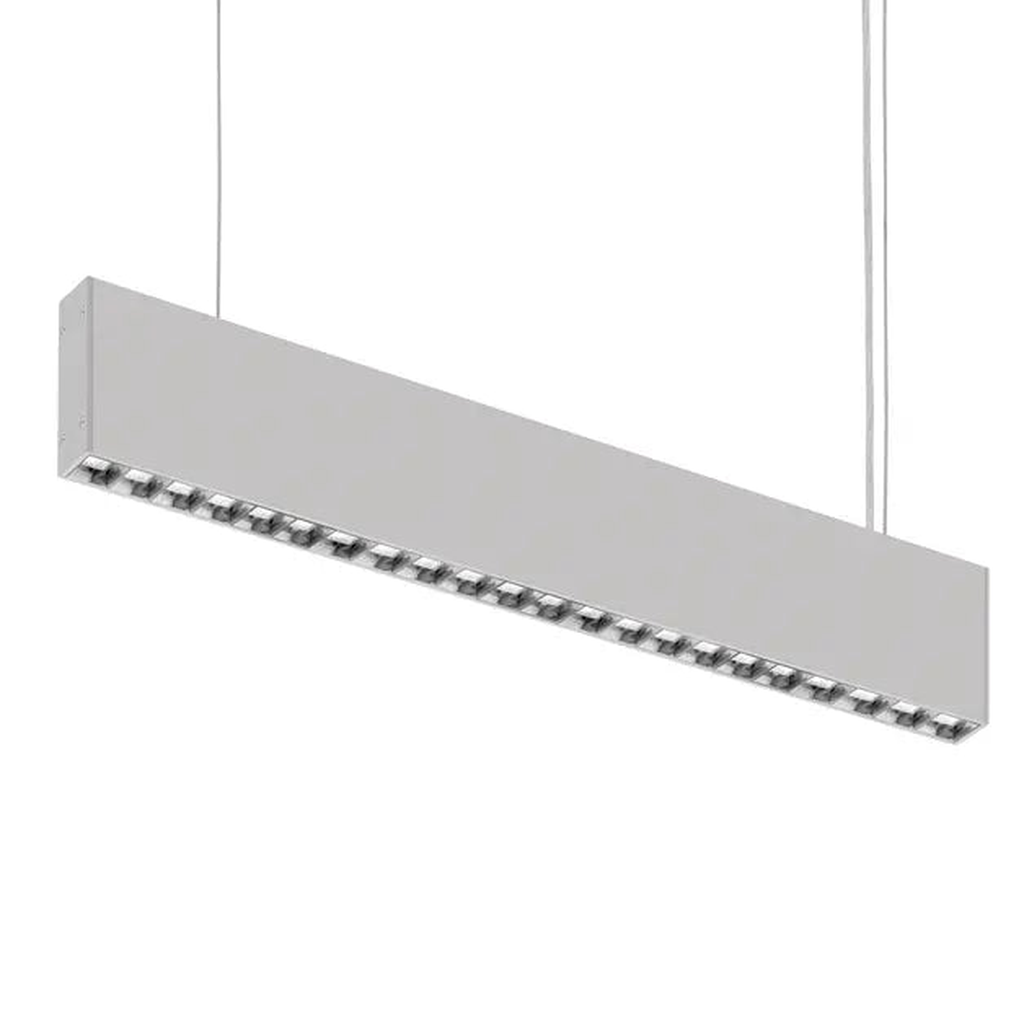

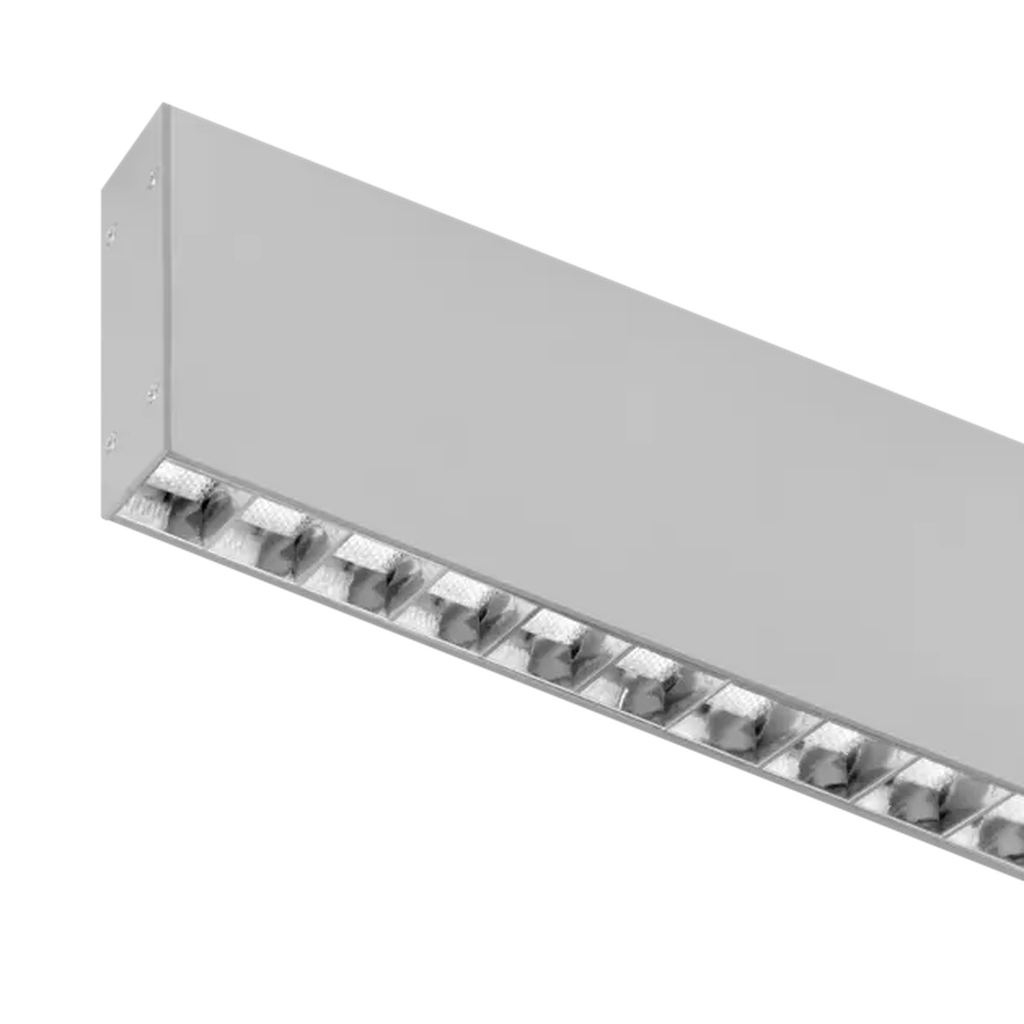

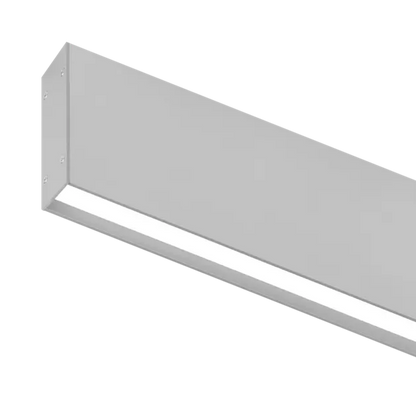

• Optical Flexibility: Select from microprismatic (MPRM), opal, or parabolic louvre diffusers (mPARM, mPARB, mPARW)
• Driver Options: ON/OFF or DALI, with optional emergency module and motion sensor support
• Compact Comfort: UGR ratings as low as 18 for glare-controlled workplace lighting

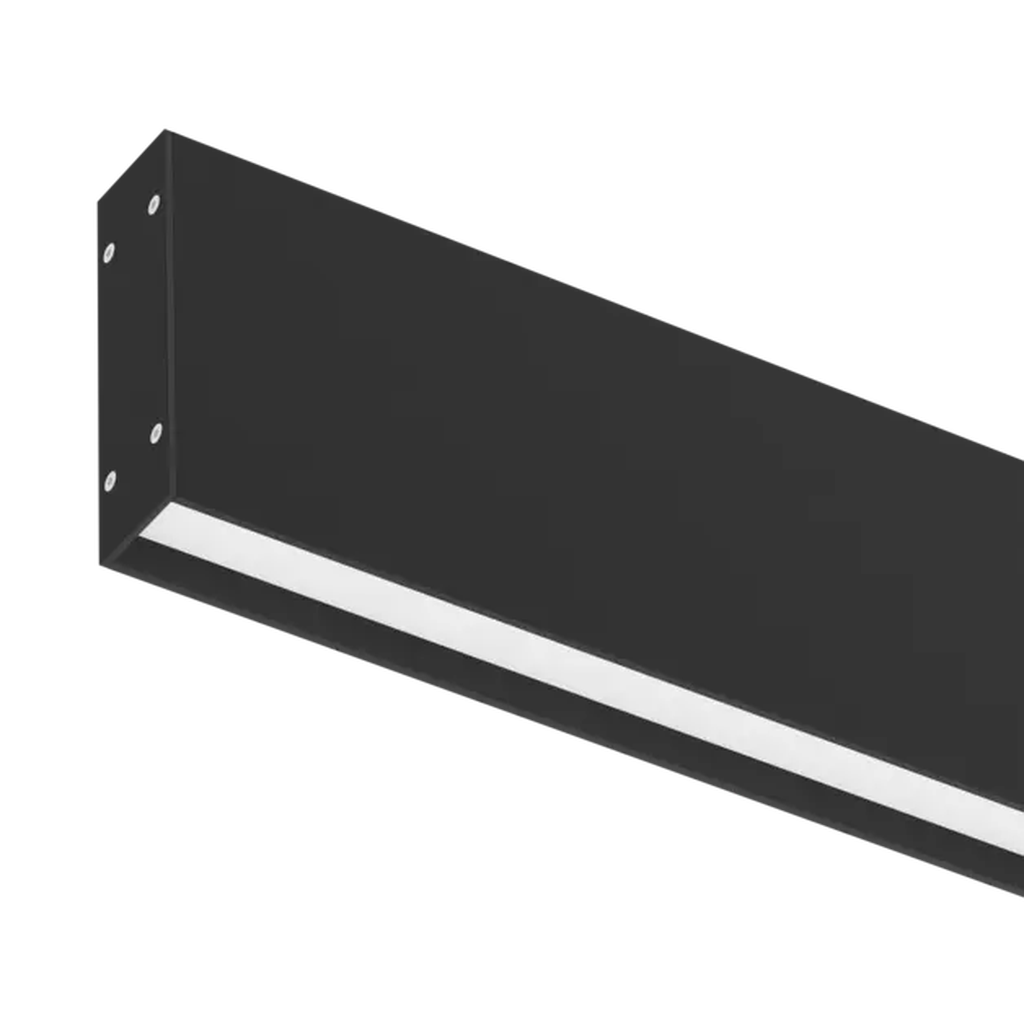

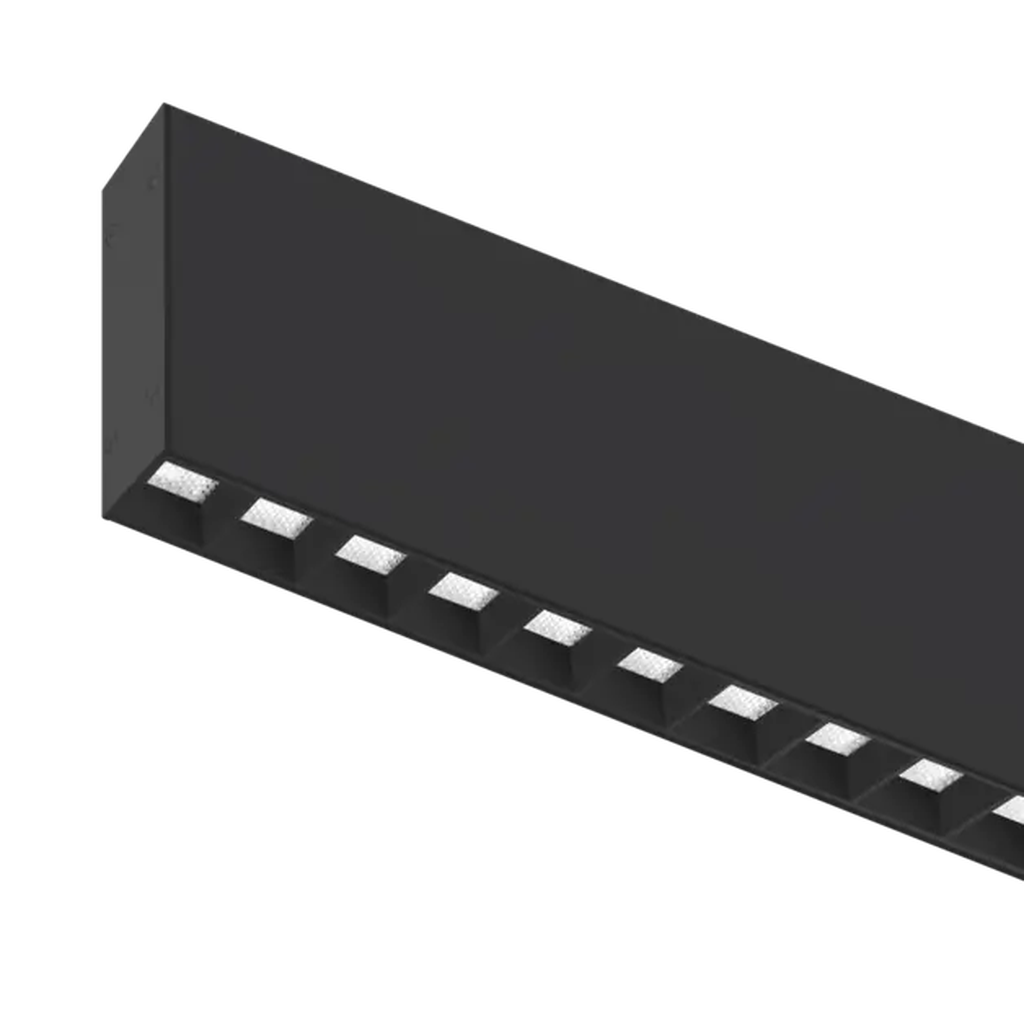

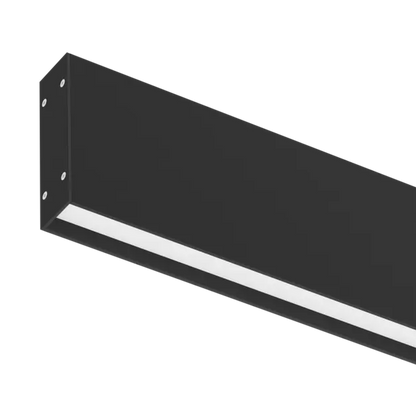

• Finishing Options: Available in white, grey, black, or any custom RAL finish
• Ready for Continuous Line Install: Supplied with connection kits and optional suspension sets

🏢 Ideal Applications:

Meeting rooms, corridors, offices, classrooms, and interiors where a discreet, linear lighting profile with high efficiency is preferred.

📐 Technical Specifications:

• Mounting Type: Suspended (pendant)
• Form: Slimline linear LED profile
• Length Options: 545 mm, 1085 mm, 1625 mm, 2170 mm
• Power Range: 12 – 48 W
• Luminous Flux: 630 – 5,750 lm
• Luminous Efficacy: 53 – 120 lm/W
• UGR: 18, 22
• Driver Options: ON/OFF, DALI
• Diffuser Options: MPRM, OPAL, mPARM, mPARB, mPARW
• CRI: >80 or >90 (830, 840, 930, 940, 8TW)
• Colour Temperature: 2700 – 6500 K, 3000 K, 4000 K
• MacAdam Step: SDCM 3
• Housing Material: Powder-coated aluminium
• Finish Options: White, Grey, Black, or any RAL
• Protection Rating: IP20
• Impact Resistance: IK04
• Class of Protection: Class I
• Net Weight: 1.3 – 4.4 kg
• Operating Temperature: -20 to +40°C
• Power Factor: 0.96
• Emergency Module: Optional
• Motion Sensor: Optional
• Flicker: ≤3%
• Lifespan: 100,000 h (L80B10), 64,000 h (L90B10)
• Certifications: CE, HACCP+, EAC

Why Specify LS1003?

Because it’s all about doing more with less — LS1003 delivers strong output and control in a sleek, unobtrusive form built to blend into any modern ceiling layout.
