LS1006

LS1006

LIGHTING SYSTEMS

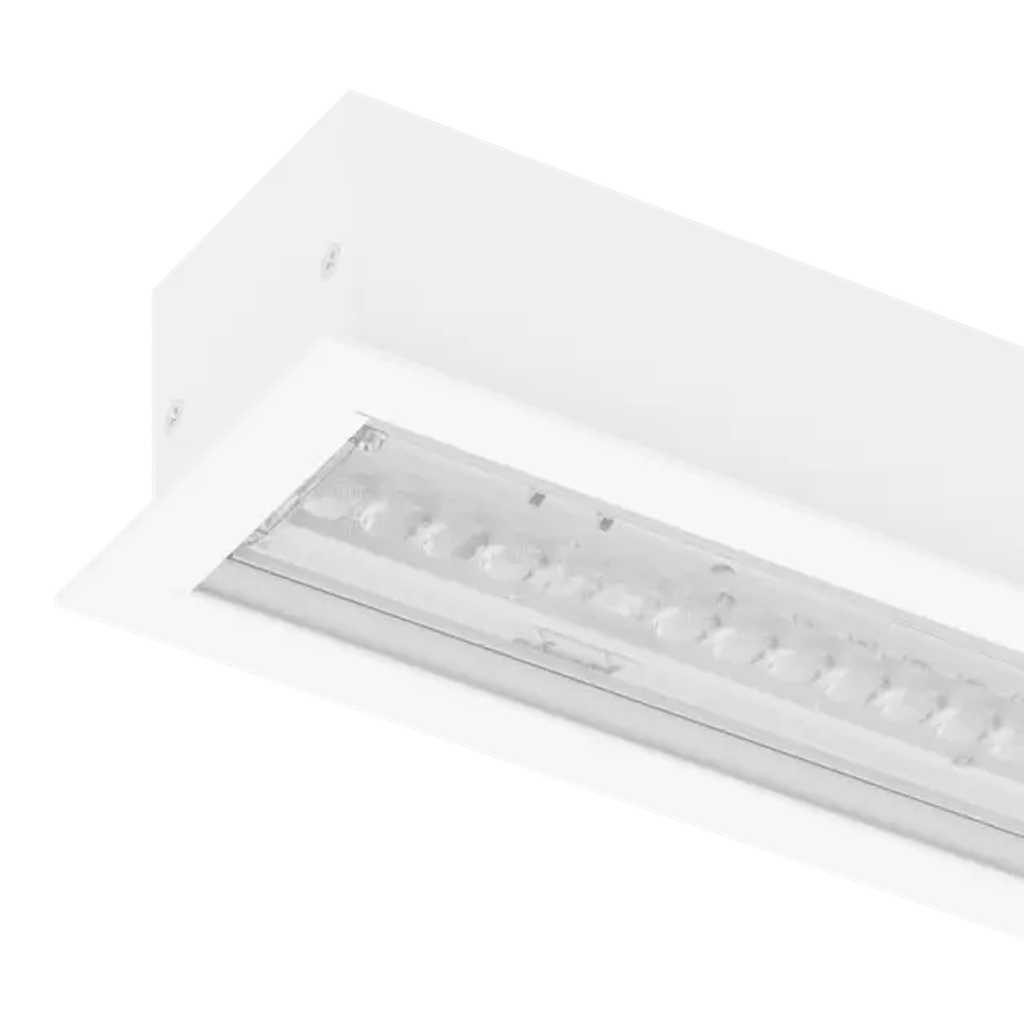

The LS1006 is an LED source luminaire characterised by its asymmetric light distribution, specifically designed for optimal performance. Constructed from a durable aluminium profile, it is ideal for illuminating blackboards by directing luminous flux directly onto vertical surfaces. This feature enhances visibility and improves the overall learning environment. Additionally, the LS1006 offers the option for inline installation alongside VIP GK LED luminaires, allowing for flexible and efficient lighting configurations in various settings.

  • Materials: Powder painted aluminum profile (colours in standard: white, grey or black). Transparent diffuser.
  • Installation:

LS1006 | Asymmetric LED Downlight for Wall-Wash & Vertical Surface Illumination

The LS1006 is a precision-engineered asymmetric LED luminaire designed for high-performance wall-washing and vertical surface lighting. Whether highlighting artwork, signage, or architectural detail, this recessed solution delivers focused intensity and uniform brightness exactly where you want it — and nowhere you don’t.

🎯 Key Features:

  • Asymmetric Optics: Engineered for targeted vertical lighting — ideal for walls, displays, and perimeter enhancement.
  • Shadow-Free Illumination: Delivers consistent brightness across vertical planes, eliminating dark patches and hotspots.
  • Energy Smart: Achieves up to 124 lm/W for optimal energy efficiency with zero compromise on output.
  • Discreet Integration: Recessed form factor maintains a clean ceiling line while directing the light where it matters.
  • Project Flexibility: Available in white or black as standard, with other RAL colour finishes on request.
  • Smart Control: Choose between ON/OFF or DALI drivers for integrated control solutions.

🖼️ Ideal Applications:

Museums, art galleries, retail displays, hotel corridors, educational facilities, and architectural spaces requiring precise wall-focused illumination.

📐 Technical Specifications:

  • Power Consumption: 10–26W
  • Luminous Flux: 1,230–3,270 lm
  • Luminous Efficacy: Up to 124 lm/W
  • Beam Angle: Asymmetric (wall-wash specific)
  • Colour Temperature: 3000K or 4000K
  • CRI: >80
  • UGR: <19
  • Driver Options: ON/OFF, DALI
  • Mounting Type: Recessed
  • Emergency Option: Available
  • Protection Rating: IP20
  • Impact Resistance: IK04
  • Class of Protection: Class II
  • Housing Material: Die-cast aluminium
  • Diffuser/Lens: Precision clear lens for asymmetric optics
  • Dimensions (Cut-out): Ø 160 mm
  • Finish Options: White (RAL 9003), Black (RAL 9005), other RAL colours on request

🛠 Why Use the LS1006?

Because sometimes lighting needs to do more than just "light up" — it needs to highlight, direct, and define. The LS1006 is a tool for designers and specifiers who know the power of vertical illumination in creating impact and ambience.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE llm/W LENGTH (L) WIDTH (W) HEIGHT (H)
13

1,130 llm

 545 57 75
25

2,380 llm

 1085 57 75
36

3,680 llm

 1625 57 75
