LS1007

LS1007

LIGHTING SYSTEMS

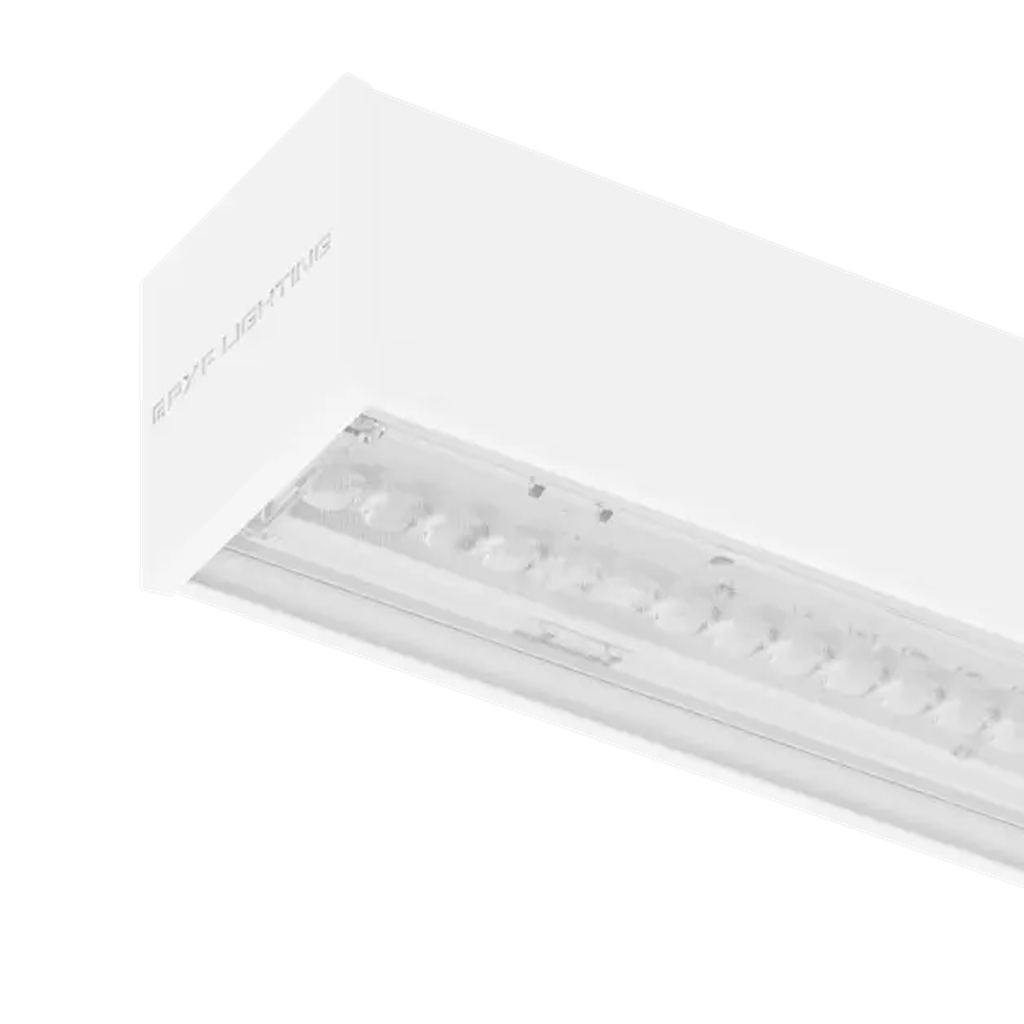

The LS1007 is a luminaire crafted from a robust aluminium profile, designed to provide asymmetric light distribution. This innovative design is particularly effective for illuminating blackboards, as the specially engineered reflector directs luminous flux precisely onto vertical surfaces. By enhancing visibility and focus, the LS1007 creates an optimal environment for learning and presentations, making it an excellent choice for educational settings and meeting rooms.

  • Materials: Powder painted aluminum profile. Transparent diffuser. The luminaire can be installed individually or combined into lighting lines with other Asymmetric LED or VIP LED luminaires.
  • Installation:

LS1007 | Recessed Asymmetric LED Downlight for Perimeter and Wall-Wash Lighting

The LS1007 is a recessed LED downlight featuring asymmetric optics and a minimalist trim, delivering flawless wall-wash illumination for vertical surfaces. Whether spotlighting retail displays, signage, or corridor walls, it brings clarity, focus, and energy savings into a sleek architectural form.

🔦 Key Features:

  • Asymmetric Beam Control: Designed to throw light across walls and vertical planes — ideal for display lighting and spatial enhancement.
  • Visible Trim Finish: Clean, refined edge for seamless integration in modern ceilings.
  • Power Meets Efficiency: Up to 124 lm/W, reducing energy costs while delivering strong, uniform light output.
  • Multiple Applications: Versatile enough for use in retail, hospitality, education, and cultural environments.
  • Finish Flexibility: Standard in white or black — custom RAL colours available to suit bespoke designs.
  • Smart-Ready: ON/OFF and DALI driver options to suit all lighting control systems.


🖼️ Ideal Applications:

Retail shelving, hotel corridors, museums, educational buildings, and gallery-style spaces demanding even, glare-free vertical illumination.

📐 Technical Specifications:

  • Power Consumption: 10–26W
  • Luminous Flux: 1,230–3,270 lm
  • Luminous Efficacy: Up to 124 lm/W
  • Beam Angle: Asymmetric (engineered for wall illumination)
  • Colour Temperature: 3000K or 4000K
  • CRI: >80
  • UGR: <19
  • Driver Options: ON/OFF, DALI
  • Emergency Module: Available
  • Mounting Type: Recessed
  • Protection Rating: IP20
  • Impact Resistance: IK04
  • Class of Protection: Class II
  • Housing Material: Die-cast aluminium
  • Diffuser/Lens: Asymmetric clear lens
  • Dimensions (Cut-out): Ø 160 mm
  • Finish Options: White (RAL 9003), Black (RAL 9005), others on request

💡 Why Specify the LS1007?

When wall-washing is your design intention, this is the tool that gets it right — balancing light output, precision optics, and architectural form in one clever recessed package. It lights up walls without lighting up bills.


DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE (W) llm/W LENGTH (L) WIDTH (W) HEIGHT (H)
19

2,610 llm

 575 65 65
37

5,220 llm

 1135 65 65
55

7,825 llm

 1695 65 65
73

10,435 llm

 2255 65 65
CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
