LS1008

LS1008

LIGHTING SYSTEMS

The luminaire is a functional LED lighting system constructed from high-quality steel sheet. Specifically designed for PAR-S versions, it features linear joints (not included) that allow for easy inline connections, facilitating versatile installation options. The OPAL and MPRM versions are available as separate luminaires, providing additional flexibility in lighting design. This system is ideal for a variety of applications, offering both efficiency and adaptability to meet diverse lighting needs.

  • Materials: Powder painted steel sheet body (standard colour: white), satin parabolic louver PAR-S with internal OPAL diffuser protecting LEDs or diffusers: OPAL or MPRM. NOTE FOR PAR-S VERSIONS: the cable for connecting into a lighting line is not supplied with the luminaires. TH5 wiring blocks are located at both ends of the luminaire. Connecting the luminaires in a line should be done with an external cable led outside the adjacent luminaires.
  • Installation:

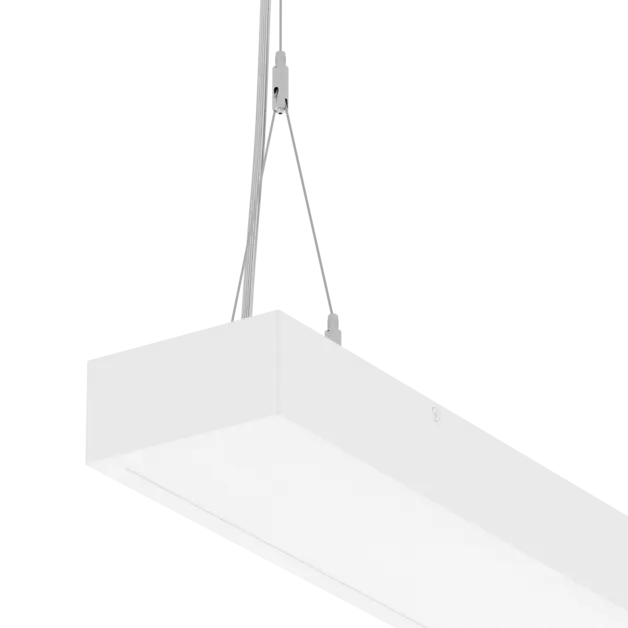

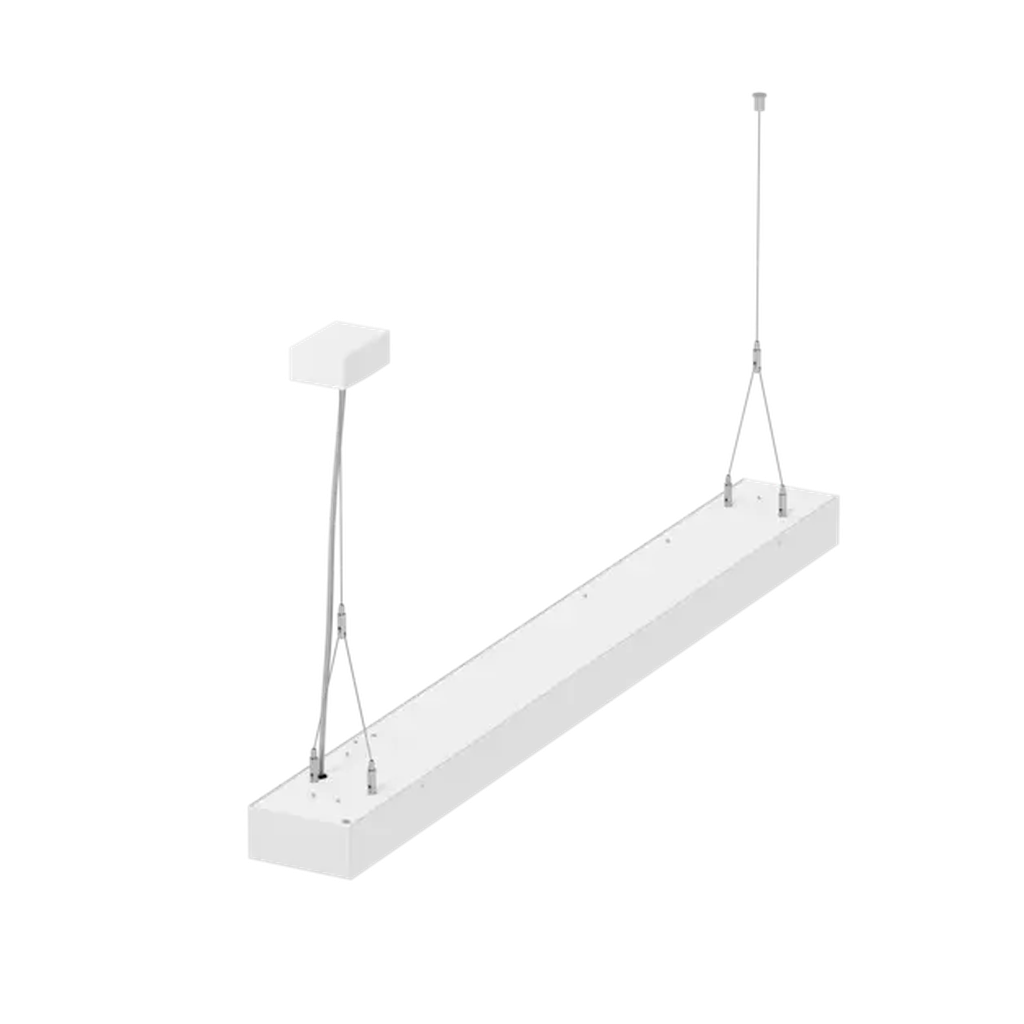

LS1008 | Suspended LED Linear for Architectural General Lighting

The LS1008 Presto LED is a recessed luminaire that strikes the ideal balance between architectural simplicity and efficient illumination. With a visible light source and wide beam options, it’s a versatile performer for commercial interiors that demand clarity, economy, and style in every downlight.

💡 Key Features:

  • Modern Trim Design: Clean visible trim creates a defined lighting aesthetic in plasterboard or modular ceilings.
  • Flexible Lighting Performance: Multiple beam angles to suit ambient, task, or spotlighting needs.
  • Efficient & Powerful: Up to 124 lm/W for lower energy costs and long-term sustainability.
  • Slim & Sleek: Minimal ceiling intrusion with an elegant recessed profile.
  • Versatile Finishes: Standard white or black trim with optional custom RAL colours for project-specific styling.
  • Control Ready: Available with ON/OFF or DALI drivers for modern building control systems.



🏢 Ideal Applications:

Office lighting, schools, retail stores, public buildings, and anywhere that calls for reliable, visually consistent ceiling lighting.

📐 Technical Specifications:

  • Power Consumption: 10–26W
  • Luminous Flux: 1,230–3,270 lm
  • Luminous Efficacy: Up to 124 lm/W
  • Beam Angles: 20°, 35°, or 60°
  • Colour Temperature: 3000K or 4000K
  • CRI: >80
  • UGR: <19
  • Driver Options: ON/OFF, DALI
  • Mounting Type: Recessed
  • Emergency Option: Available
  • Protection Rating: IP20
  • Impact Resistance: IK04
  • Class of Protection: Class II
  • Housing Material: Die-cast aluminium
  • Diffuser Type: Clear or frosted lens (depending on configuration)
  • Dimensions (Cut-out): Ø 160 mm
  • Finish Options: White (RAL 9003), Black (RAL 9005), other RAL colours on request


⚙️ Why Choose the LS1008?

It’s the dependable downlight with just the right amount of visibility – designed to support modern architectural layouts while keeping energy bills in check. Ideal for projects where function and finish must work hand-in-hand.


DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE (W) llm/W LENGTH (L) WIDTH (W) HEIGHT (H)
31

3,410 llm

 1145 125 60
37

4,240 llm

 1435 125 60
CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
