LS1010

LS1010

LIGHTING SYSTEMS

The LS1010 is a versatile component of the lighting system designed for inline installation, offering flexibility in its application. It can be mounted as a standalone luminaire, making it suitable for various lighting needs. This adaptability allows the LS1010 to enhance both individual spaces and larger areas, providing effective illumination wherever it is needed. With its modern design and efficient performance, the LS1010 is an excellent choice for a range of environments.

  • Materials: Electrostatically painted aluminum profile (standard color: grey), OPAL diffuser made of polycarbonate. DI version: upper masking cover in set
  • Installation:

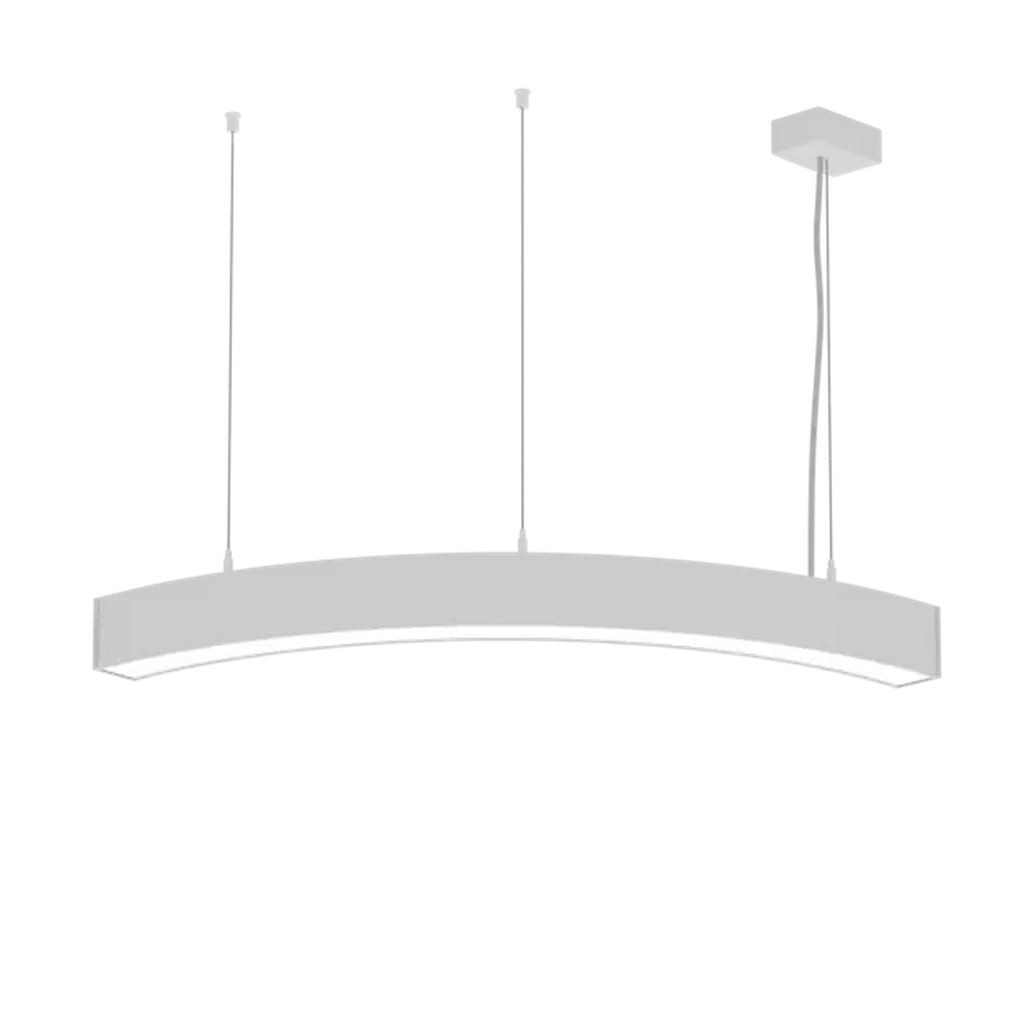

LS1010 | Architectural Suspended Linear LED Luminaire with Curved Profile (Direct Emission)

LS1010 is a striking suspended linear LED luminaire with an elegant arc-shaped profile, designed to bring subtle movement and architectural cohesion to modern commercial interiors. This version delivers direct light only, making it ideal for focused illumination in workplaces, breakout zones, and design-led environments where ceiling aesthetics matter as much as lighting performance.

With a slim 1200mm body and powerful outputs ranging from 1100 to 2540 lumens, LS1010 delivers clean, efficient lighting from a profile that’s anything but ordinary. A built-in upper masking cover ensures a polished finish in direct-only configurations, while the OPAL or MPRM diffuser ensures low-glare comfort.

🧩 Key Features:

  • Curved Profile Design: Brings architectural elegance and flow to ceiling planes
  • Direct Light Distribution: Purpose-built for downward-focused, glare-controlled lighting
  • Ultra-Low Glare: UGR as low as 13 for comfort in screen-heavy environments
  • High Efficiency: Up to 127 lm/W for low energy use and maximum ROI
  • RAL Customisation: Standard black, grey, or white with bespoke colours on request
  • Plug-and-Play Suspension: Kit included for fast, clean ceiling installation
  • Smart Driver Options: Compatible with DALI or ON/OFF drivers, emergency-ready

🏢 Ideal Applications:
Open-plan offices, reception desks, corridors, classrooms, and commercial interiors that demand clean light lines with a high-end architectural edge.

📐 Technical Specifications:

  • Mounting Type: Suspended (pendant with included suspension kit)
  • Light Output: 1100 – 2540 lumens
  • Power Consumption: 11 – 20W
  • Luminous Efficacy: Up to 127 lm/W
  • Colour Temperatures: 3000K / 4000K
  • CRI: 80 / 90
  • UGR: 13, 16
  • Diffuser Options: OPAL, MPRM
  • Driver Type: DALI / ON-OFF
  • Dimmable: Optional
  • Emergency Capability: Optional emergency module
  • Body Finish: White, grey, black (custom RAL available)
  • Material: Electrostatically painted aluminium
  • Impact Resistance: IK04
  • IP Rating: IP20
  • Operating Temp: 0°C to +40°C
  • Lifetime: 100,000h (L80B10)
  • Certifications: CE, EAC, HACCP+

💡 Why Specify LS1010?

Because your ceiling deserves more than flat lines and boring fixtures. LS1010 delivers directional light from a curved, design-forward body that enhances both aesthetics and performance.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE LUMEN LENGTH (L) WIDTH (W) HEIGHT (H)
11

1,320 llm

 1200 57 75
20

2,400 llm

 1200 57 75
CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
