LS1011

LS1011

LIGHTING SYSTEMS

The LS1011 is a key component of the lighting system designed for inline installation, providing versatility and flexibility in its use. It can also be mounted as a standalone luminaire, making it suitable for various lighting applications. This adaptability allows the LS1011 to effectively illuminate both individual spaces and larger areas, enhancing the overall environment with its modern design and efficient performance. Whether used in commercial or residential settings, the LS1011 offers an excellent lighting solution.

  • Materials: Electrostatically painted aluminum profile (standard color: grey), OPAL diffuser made of polycarbonate.
  • Installation:

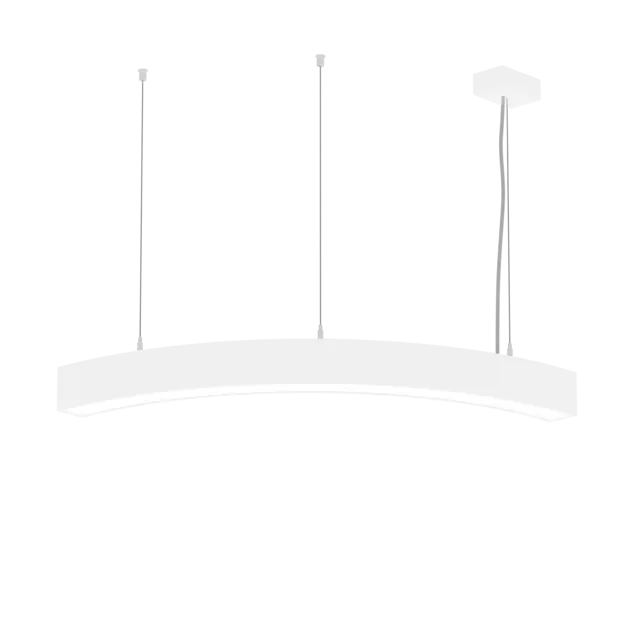

LS1011 | Curved Suspended Linear LED Luminaire with Direct/Indirect Output

LS1011 is a suspended architectural feature luminaire with a subtle arc profile, designed to elevate commercial interiors with soft curvature and even illumination. Engineered for direct or direct/indirect light distribution, it’s perfect for creating rhythm and interest in open-plan offices, meeting areas, and collaborative zones.

This suspended linear profile delivers up to 2150 lumens of downward light and up to 1090 lumens of upward ligh, all within a compact, 1200mm aluminium body finished in black, white, or grey (custom RALs available). With UGR as low as 11, it’s ideal for screen-based workspaces, pairing elegant form with technical performance.

🧩 Key Features:

  • Curved Architectural Profile: Introduces flow and form into modern ceiling designs
  • Direct or DI/IN Options: Balance ambient uplight with functional downlight
  • Ultra Low Glare: UGR 11–13 for optimal comfort in visual task areas
  • Efficient Output: Up to 120 lm/W with high CRI (80 / 90)
  • Seamless Light-Line Integration: Designed for modular continuous runs
  • RAL Colour Customisation: Available in black, grey, white, or custom finishes
  • DALI or ON/OFF Driver Options: With emergency and sensor compatibility
  • Tool-Free Suspension: Comes complete with clean-finish suspension system

🏢 Ideal Applications:
Architectural office environments, breakout spaces, boardrooms, reception areas, and educational interiors where design-led lighting is a priority.

📐 Technical Specifications:

  • Mounting Type: Suspended (pendant with included cable set)
  • Light Output: DI: 1060 – 2150 lm / IN: 520 – 1090 lm
  • Power Consumption: 11 – 27W
  • Luminous Efficacy: Up to 120 lm/W
  • Colour Temperatures: 3000K / 4000K
  • CRI: 80 / 90
  • UGR: 11, 13
  • Diffuser: OPAL (polycarbonate)
  • Driver Type: DALI / ON-OFF
  • Dimmable: Optional
  • Emergency Capability: Optional emergency module
  • Body Finish: White, grey, black (custom RAL available)
  • Material: Painted aluminium
  • Impact Resistance: IK04
  • IP Rating: IP20
  • Operating Temp: 0°C to +40°C
  • Lifetime: 100,000h (L80B10)
  • Certifications: CE, EAC, HACCP+

💡 Why Specify LS1011?

Because when your ceiling design curves, your lighting should follow. LS1011 brings architectural flow, glare-free output, and technical excellence into one beautifully crafted suspended profile.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE
llm/W
LENGTH (L)
WIDTH (W)
HEIGHT (H)
16
1,280 llm
640 llm
1200
57
75
27
2,150 llm
1,090 llm
1200
57
75
