LS1012

LS1012

LIGHTING SYSTEMS

This new LED lighting system is designed for inline installation, offering an elegant and efficient solution for illuminating offices, conference rooms, receptions, and various other working spaces. Its sleek design enhances the aesthetic of professional environments while providing high-quality lighting that fosters productivity and comfort. With its energy-efficient technology, this luminaire ensures optimal performance, making it an ideal choice for contemporary workplaces. Whether used individually or in a series, it creates a well-lit atmosphere that supports various activities and functions.

  • Materials: Electrostatically painted aluminum profile (standard colours: white, grey, black), microprismatic diffuser (MPRM) made of PMMA or OPAL diffuser made of PMMA.
  • Installation:

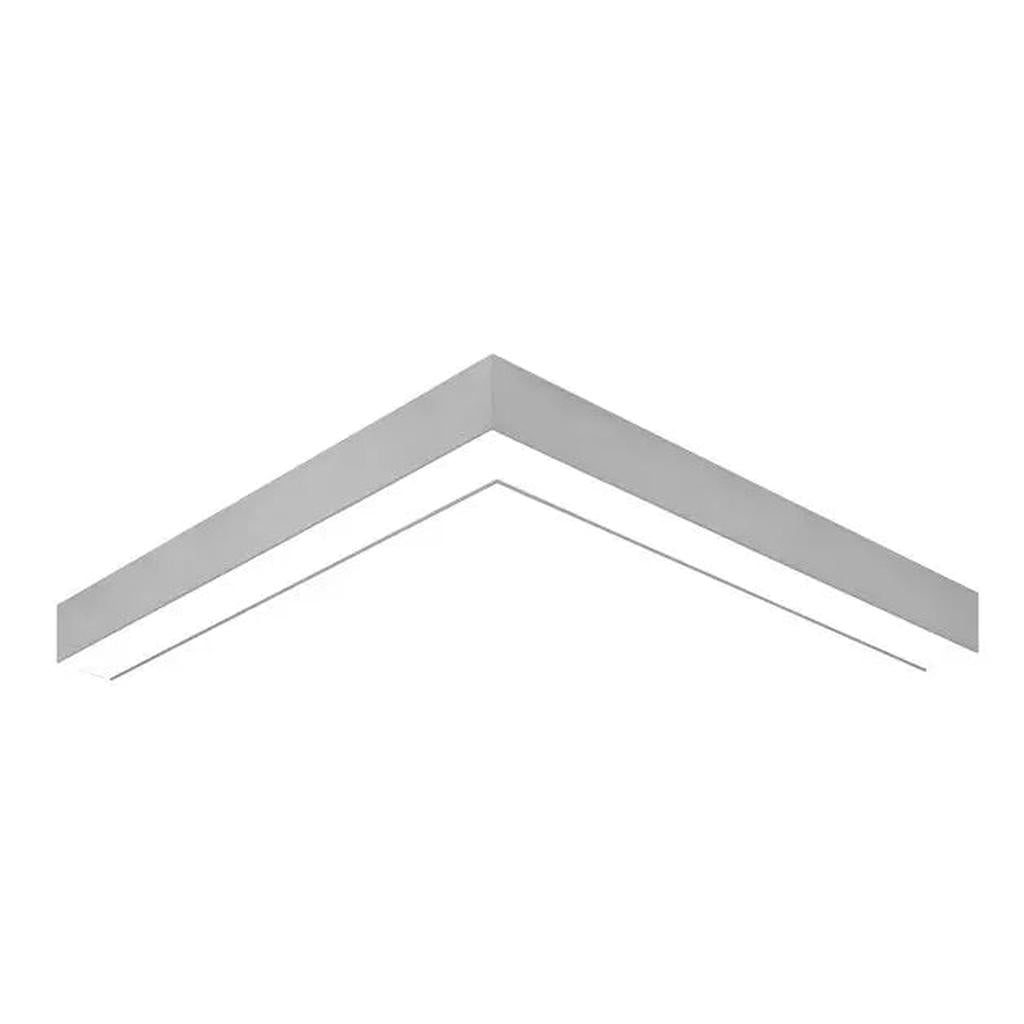

LS1012 | Suspended or Surface-Mounted “L” Junction LED Profile for Right-Angle Light-Line Installations

LS1012 is a compact corner LED profile designed to create clean 90° lighting transitions within modular linear systems. Built for suspended or ceiling-mounted applications, it forms a continuous light-line flow with precision-moulded geometry, subtle optics, and architectural-grade finishes.

🧩 Key Features:

  • 90° Corner Lighting Module: Creates “L” shaped light-line junctions for linear ceiling systems
  • System-Ready Design: Connects seamlessly with straight-run profiles using invisible linear joints
  • Compact & Efficient: Outputs up to 2,560 lm at just 25 W, optimised for corner placement
  • Optical Choice: Available with microprismatic (MPRM), multi-prismatic (MPOP), or opal PMMA diffusers
  • Driver Options: Compatible with ON/OFF or DALI drivers; supports emergency and motion sensor modules
  • Visual Comfort: UGR as low as 16 for applications needing lower glare
  • Customisable Finish: Available in white, grey, black, or any RAL colour on request
  • Includes Suspension Accessories: Joint kits and suspension components included with luminaire

🏢 Ideal Applications:

Used in architectural lighting layouts requiring tight 90° turns — ideal for corridors, reception areas, collaborative zones, and any interior where light continuity meets clean geometry.

📐 Technical Specifications:

  • Mounting Type: Suspended or surface-mounted
  • Form: “L” corner junction profile
  • Length Options: 567 mm, 587 mm
  • Power Range: 14 – 25 W
  • Luminous Flux: 1,100 – 2,560 lm
  • Luminous Efficacy: 79 – 129 lm/W
  • UGR: 16, 20, 24
  • Driver Options: ON/OFF, DALI
  • Diffuser Options: MPRM, MPOP, OPAL
  • CRI: >80 or >90 (830, 840, 930, 940)
  • Colour Temperature: 3000 K or 4000 K
  • MacAdam Step: SDCM 3
  • Housing Material: Powder-coated aluminium
  • Finish Options: White, Grey, Black, or custom RAL
  • Protection Rating: IP30
  • Impact Resistance: IK04
  • Class of Protection: Class I
  • Net Weight: 2.3 – 3.9 kg
  • Operating Temperature: -15 to +40°C
  • Power Factor: 0.96
  • Emergency Module: Optional
  • Motion Sensor: Optional
  • Flicker: ≤3%
  • Lifespan: 100,000 h (L80B10), 64,000 h (L90B10)
  • Certifications: CE, HACCP+, EAC

Why Specify LS1012?

Because in a perfect lighting system, even the corners count — LS1012 gives you the precision, performance, and seamless flow your architectural layout deserves.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE
LUMEN
LENGTH (L)
WIDTH (W)
HEIGHT (H)
14
1,320 llm
587 (x2)
57
75
19
2,270 llm
587 (x2)
57
75
25
2,380 llm
587 (x2)
57
75
