LS1013

LS1013

LIGHTING SYSTEMS

This new LED lighting system is designed for inline installation, offering an elegant and efficient solution for illuminating offices, conference rooms, receptions, and various other working spaces. Its sleek design enhances the aesthetic of professional environments while providing high-quality lighting that fosters productivity and comfort. With its energy-efficient technology, this luminaire ensures optimal performance, making it an ideal choice for contemporary workplaces. Whether used individually or in a series, it creates a well-lit atmosphere that supports various activities and functions.

  • Materials: Electrostatically painted aluminum profile (standard colours: white, grey, black), microprismatic diffuser (MPRM) made of PMMA or OPAL diffuser made of PMMA.
  • Installation:

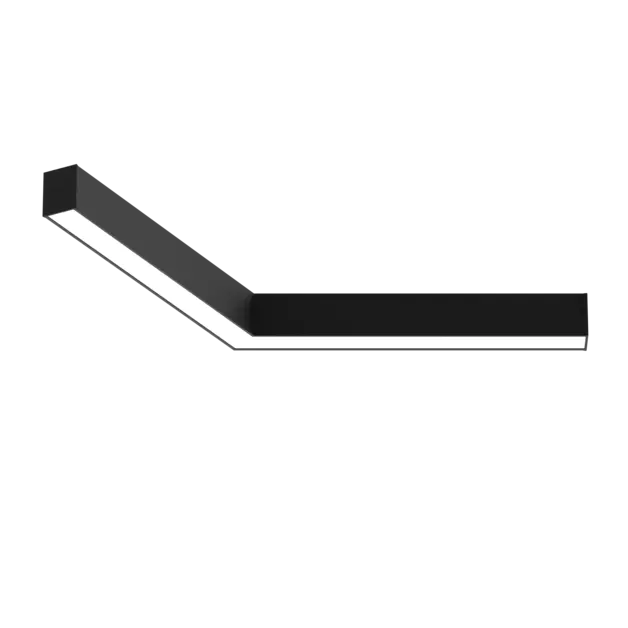

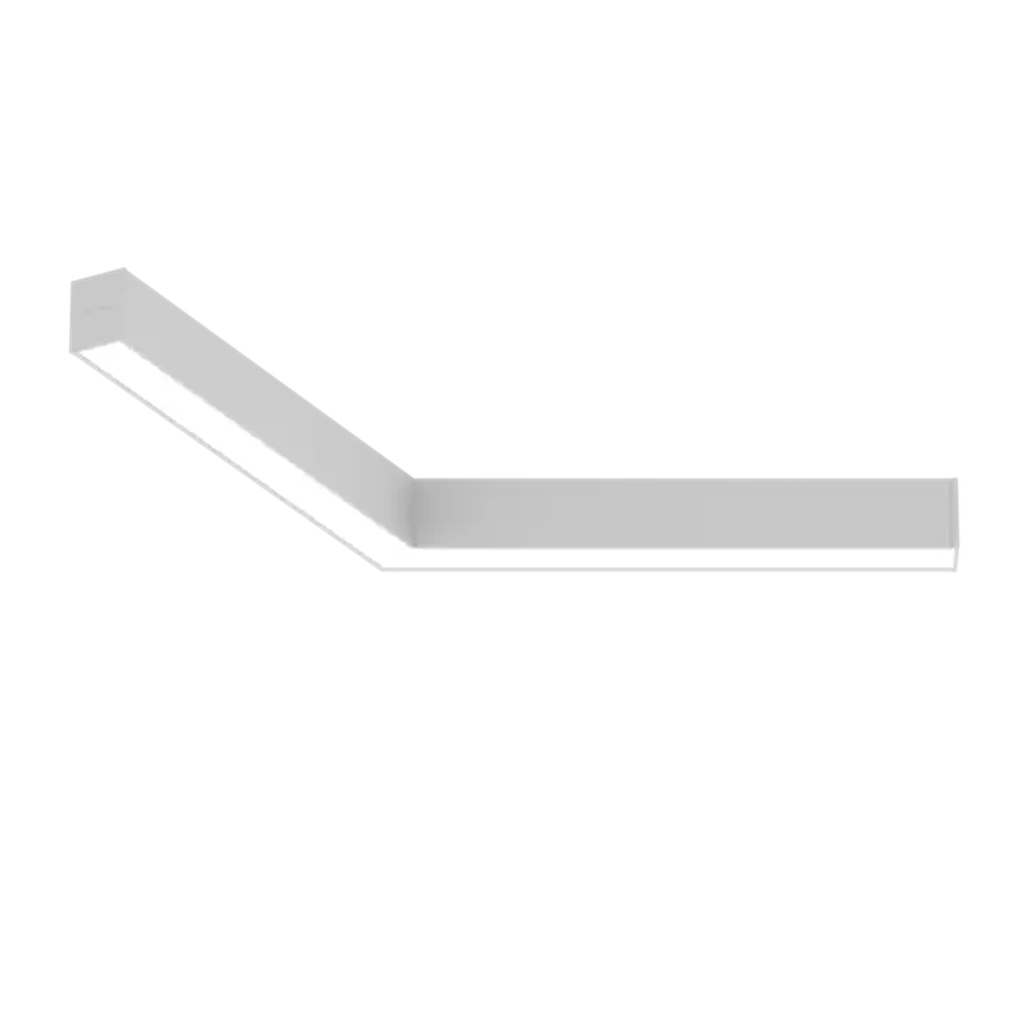

LS1013 | 120° Surface or Suspended Corner-Mounted LED Profile for Architectural Transitions

LS1013 is a uniquely engineered L-shaped linear LED profile designed to deliver seamless illumination across 120° architectural junctions. Whether installed surface-mounted or suspended, it’s the perfect solution for connecting ceiling-to-wall or wall-to-wall transitions with visual continuity and modern appeal.

With high-output performance (up to 2560 lumens) and a choice of OPAL or microprismatic PMMA diffusers, LS1013 combines aesthetic elegance with lighting precision, ideal for offices, commercial spaces, and education environments.

🧩 Key Features:

  • 120° L-Shape Design: Tailored for architectural corner lighting
  • Surface or Suspended Installation: Flexible fit for various layouts
  • Wide Beam Distribution: Delivers broad, even coverage
  • High Efficiency: Outputs up to 2560 lm at 102 lm/W
  • Low Glare Diffuser Options: Choose between OPAL or microprismatic (MPRM)
  • Smart Driver Choices: Compatible with ON/OFF or DALI control gear
  • RAL Custom Colours: Available in white, grey, black, or any custom finish
  • Long Life LEDs: 100,000h L80B10 for dependable performance
  • Emergency-Ready: Optional module available for compliant applications

🏢 Ideal Applications:

  • Office corridors and breakout zones
  • Conference rooms and classrooms
  • Reception areas and stairwells
  • Architectural ceiling-to-wall lighting transitions
  • Retail and commercial interiors needing structured linear accents

📐 Technical Specifications:

  • Mounting Type: Surface or suspended (L-shaped 120° profile)
  • Power Consumption: 25W
  • Luminous Flux: 2330 – 2560 lumens
  • Luminous Efficacy: 93 – 102 lm/W
  • Colour Temperature: 3000K / 4000K
  • CRI: 80
  • Diffuser Options: OPAL / MPRM (PMMA material)
  • Driver Type: ON/OFF or DALI
  • Dimmable: Optional
  • Emergency Capability: Optional
  • Body Colour: White, grey, black (RAL customisation available)
  • Material: Powder-coated aluminium
  • IP Rating: IP30
  • Impact Resistance: IK04
  • Operating Temperature: -15°C to +40°C
  • Lifetime: L80B10 @ 100,000h / L90B10 @ 64,000h
  • Certifications: CE, EAC, HACCP+

💡 Why Specify LS1013?
Because great lighting doesn’t stop at straight lines. LS1013 brings structure, flow, and architectural flair to corner spaces — combining sharp design with reliable, glare-free output.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE LUMEN LENGTH (L) WIDTH (W) HEIGHT (H)
25

2,380 llm

 567 (x2) 57 75
CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
