LS1014

LS1014

LIGHTING SYSTEMS

This new LED lighting system is designed for inline installation, offering an elegant and efficient solution for illuminating offices, conference rooms, receptions, and various other working spaces. Its sleek design enhances the aesthetic of professional environments while providing high-quality lighting that fosters productivity and comfort. With its energy-efficient technology, this luminaire ensures optimal performance, making it an ideal choice for contemporary workplaces. Whether used individually or in a series, it creates a well-lit atmosphere that supports various activities and functions.

  • Materials: Electrostatically painted aluminum profile (standard colours: white, grey, black), microprismatic diffuser (MPRM) made of PMMA or OPAL diffuser made of PMMA.
  • Installation:

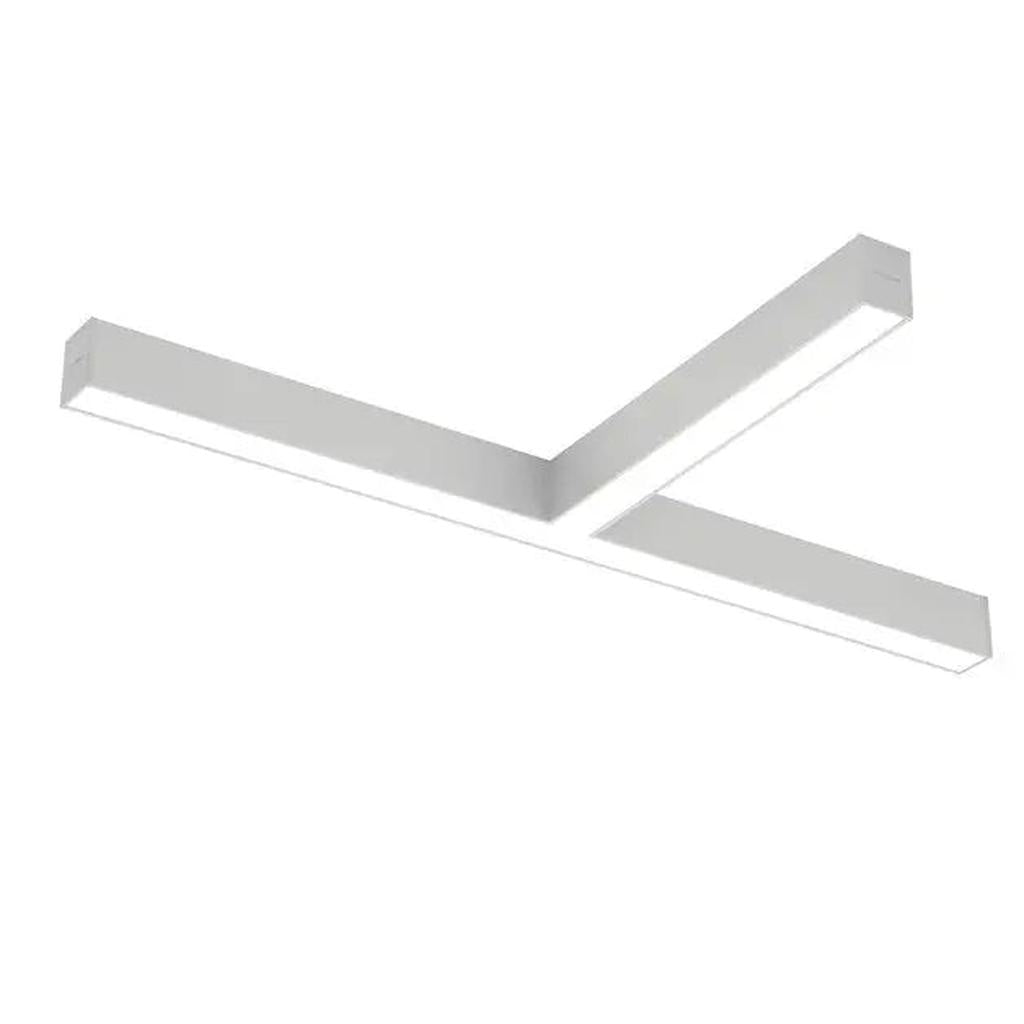

LS1014 | Suspended T-Junction Linear LED Profile for Modular Light-Line Installations

LS1014 is a T-shaped LED profile from the Sigma II system, designed to create seamless three-way intersections in suspended linear lighting layouts. It delivers clean geometry, consistent optics, and trimless integration for high-performance architectural environments.

🧩 Key Features:

  • T-Shaped Light-Line Module: Forms clean three-way intersections in continuous suspended systems
  • Modular Compatibility: Integrates effortlessly with other Sigma II linear elements for uninterrupted lighting layouts
  • Backlit Performance: Delivers up to 3,940 lm from 36 W at up to 109 lm/W
  • Diffuser Options: Choose from microprismatic (MPRM) for low glare or opal PMMA for soft diffusion
  • Ultra Low Glare: UGR values as low as 10 make it ideal for screen-focused workspaces
  • Driver Options: ON/OFF or DALI dimmable to suit any lighting control system
  • RAL Custom Finishes: Supplied in white, grey, black — or specify your own RAL code
  • Smart Integration Ready: Emergency and motion sensor modules available as add-ons

🏢 Ideal Applications:

Ideal for open-plan offices, co-working spaces, education centres, conference rooms, and commercial interiors where modular suspended lighting requires clean, directional intersections.

📐 Technical Specifications:

  • Mounting Type: Suspended (pendant)
  • Form: “T” junction linear profile
  • Length: 1117 mm
  • Power Consumption: 36 W
  • Luminous Flux: 3,070 – 3,940 lm
  • Luminous Efficacy: 85 – 109 lm/W
  • UGR: 10, 15
  • Driver Options: ON/OFF, DALI
  • Diffuser Options: Microprismatic (MPRM), Opal (PMMA)
  • CRI: >80 or >90 (830, 840, 930, 940)
  • Colour Temperature: 3000 K, 4000 K
  • MacAdam Step: SDCM 3
  • Housing Material: Powder-coated aluminium
  • Finish Options: White, Grey, Black, or custom RAL
  • Protection Rating: IP30
  • Impact Resistance: IK04
  • Class of Protection: Class I
  • Net Weight: 3.4 – 3.9 kg
  • Power Factor: 0.96
  • Emergency Module: Optional
  • Motion Sensor: Optional
  • Flicker: ≤3%
  • Lifespan: 100,000 h (L80B10), 64,000 h (L90B10)
  • Certifications: CE, HACCP+, EAC

Why Specify LS1014?

Because well-designed lighting doesn’t hit dead ends — LS1014 turns linear layouts into structured, adaptable networks without breaking the flow or the visual line.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE LUMEN LENGTH (L) WIDTH (W) HEIGHT (H)
36

3,940 llm

 1117 + 530 57 75
