LS1016

LS1016

LIGHTING SYSTEMS

This new LED lighting system is designed for inline installation, offering an elegant and efficient solution for illuminating offices, conference rooms, receptions, and various other working spaces. Its sleek design enhances the aesthetic of professional environments while providing high-quality lighting that fosters productivity and comfort. With its energy-efficient technology, this luminaire ensures optimal performance, making it an ideal choice for contemporary workplaces. Whether used individually or in a series, it creates a well-lit atmosphere that supports various activities and functions.

  • Materials: Electrostatically painted aluminum profile (standard colours: white, grey, black), microprismatic diffuser (MPRM) made of PMMA or OPAL diffuser made of PMMA.
  • Installation:

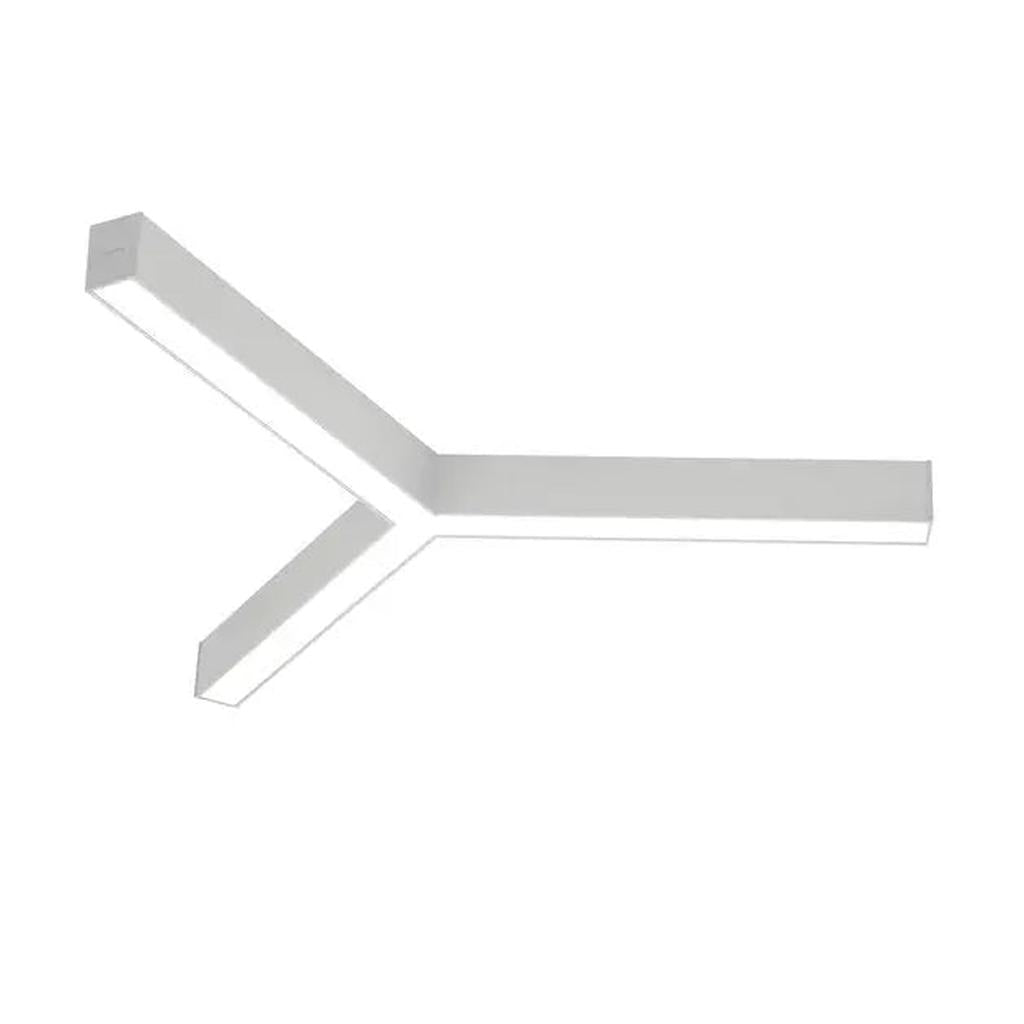

LS1016 | Suspended Y-Shape Linear LED Junction for Seamless Multi-Directional Light-Line Installations

LS1016 is a precision-engineered Y-junction LED profile, built for suspended applications where linear lighting needs to branch with elegance and clarity. Designed for inline continuity and visual symmetry, it enables tri-directional light distribution without disrupting the architectural ceiling line.

🧩 Key Features:

  • Y-Shaped Branching Module: Creates seamless three-way lighting intersections in suspended layouts
  • Modular Light-Line System: Designed for uninterrupted integration with other Sigma II profiles
  • High Output Performance: Delivers up to 3,940 lumens at 109 lm/W from a compact 550 mm form
  • Optical Options: Choose between glare-controlled microprismatic (MPRM) or soft opal PMMA diffuser
  • Ultra Low Glare: UGR as low as 9 — ideal for VDU-heavy environments
  • Driver Options: Available with ON/OFF or DALI-compatible control
  • RAL Custom Finishes: White, grey, black — or any RAL colour for seamless visual integration
  • Smart Expansion Ready: Optional emergency module, motion sensor, and TH5 wiring support

🏢 Ideal Applications:

Modern open-plan offices, collaborative workspaces, educational facilities, commercial corridors, and architectural interiors requiring three-way light-line direction changes without visual interruption.

📐 Technical Specifications:

  • Mounting Type: Suspended (pendant)
  • Form: “Y” junction profile
  • Length: 550 mm
  • Power Consumption: 36 W
  • Luminous Flux: 3,070 – 3,940 lm
  • Luminous Efficacy: 85 – 109 lm/W
  • UGR: 9, 14
  • Driver Options: ON/OFF, DALI
  • Diffuser Options: Microprismatic (MPRM), Opal (PMMA)
  • CRI: >80 or >90 (830, 840, 930, 940)
  • Colour Temperature: 3000 K, 4000 K
  • MacAdam Step: SDCM 3
  • Housing Material: Powder-coated aluminium
  • Finish Options: White, Grey, Black, or custom RAL
  • Protection Rating: IP30
  • Impact Resistance: IK04
  • Class of Protection: Class I
  • Net Weight: 3.4 – 3.9 kg
  • Power Factor: 0.96
  • Emergency Module: Optional
  • Motion Sensor: Optional
  • Flicker: ≤3%
  • Lifespan: 100,000 h (L80B10), 64,000 h (L90B10)
  • Certifications: CE, HACCP+

Why Specify LS1016?

Because not all spaces run in straight lines. LS1016 brings Y-shaped geometry into modern lighting design, with clean optics, hidden joins, and system-wide compatibility that turns light into an architectural tool.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE LUMEN LENGTH (L) WIDTH (W) HEIGHT (H)
36

3,940 llm

 550(x3) 57 75
