LS1017

LS1017

LIGHTING SYSTEMS

The LS1017 is a new LED lighting system designed for inline installation, produced for use with two types of diffusers that prioritise ease of mounting. This elegant and efficient luminaire is perfect for illuminating offices, conference rooms, receptions, and various other workspaces. Its refined design enhances the aesthetic appeal of professional environments while delivering high-quality lighting that promotes productivity and comfort. With its user-friendly installation and energy-efficient technology, the LS1017 is an ideal choice for contemporary workplaces, creating a well-lit atmosphere suitable for a range of activities and functions.

  • Materials: Electrostatically painted aluminum profi le (standard color: white, grey, black), click-in microprismatic diffuser (MPRM) or click-in OPAL diffuser.
  • Installation:

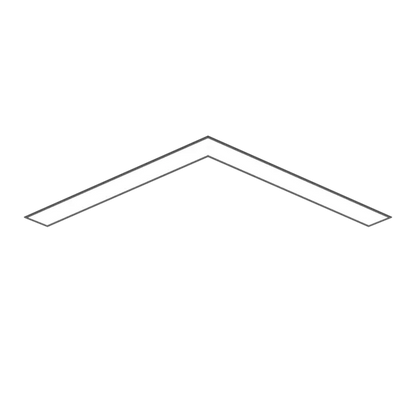

LS1017 | Recessed “L” Corner Linear LED Profile for Continuous Light-Line Layouts

The LS1017 is a trimless recessed L-corner LED module from the Sigma II GK system, designed for 90° transitions in linear light-line installations. Its sleek profile, seamless ceiling integration, and click-in diffusers offer both visual precision and functional consistency across architectural environments.

🧩 Key Features:

  • Trimless Recessed Corner Profile: Forms precise 90° lighting transitions into plasterboard ceilings
  • Continuous Light-Line System: Engineered for seamless inline installation within the Sigma II GK family
  • Click-In Diffusers: Choose between microprismatic (MPRM) or opal polycarbonate for fast fit and clean finish
  • Compact Power Range: From 14 to 25 W, ideal for corner transitions without over-illumination
  • Smart Control Options: ON/OFF and DALI drivers, with optional emergency and motion sensor modules
  • High Luminous Efficacy: Up to 129 lm/W for efficient light output in a compact form factor
  • Finish Options: Available in white, grey, or black — or any RAL colour on request
  • Through Wiring Ready: TH5 compatible for continuous system wiring

🏢 Ideal Applications:

  • Architectural lighting schemes requiring 90° recessed corners — ideal for offices, corridors, classrooms, receptions, and high-spec commercial environments where light-line continuity matters.

📐 Technical Specifications:

  • Mounting Type: Plasterboard recessed
  • Form: “L” Corner linear LED profile
  • Length: 587 mm
  • Power Range: 14 – 25 W
  • Luminous Flux: 1,155 – 3,215 lm
  • Luminous Efficacy: 83 – 129 lm/W
  • UGR: 15, 18, 20, 22
  • Driver Options: ON/OFF, DALI
  • Diffuser Options: MPRM, OPAL (click-in)
  • CRI: >80 or >90 (830, 840, 930, 940)
  • Colour Temperature: 3000 K, 4000 K
  • MacAdam Step: SDCM 3
  • Housing Material: Powder-coated aluminium
  • Finish Options: White, Grey, Black, or any RAL colour
  • Protection Rating: IP20 (top and bottom)
  • Impact Resistance: IK04
  • Class of Protection: Class I
  • Net Weight: 2.3 kg
  • Operating Temperature: 0 – 40°C
  • Power Factor: 0.98
  • Emergency Module: Optional
  • Motion Sensor: Optional
  • Through Wiring: TH5
  • Flicker: ≤3%
  • Lifespan: 100,000 h (L80B10), 64,000 h (L90B10)
  • Certifications: CE, HACCP+, EAC

Why Specify LS1017?

Because the best architectural lighting doesn’t stop at the corners — it bends with purpose. LS1017 ensures 90° transitions stay as clean and seamless as your straight runs, with flawless trimless integration and performance to match.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE LUMEN LENGTH (L) WIDTH (W) HEIGHT (H)
25

2,380 llm

 587(x2) 57 75
