LS1018

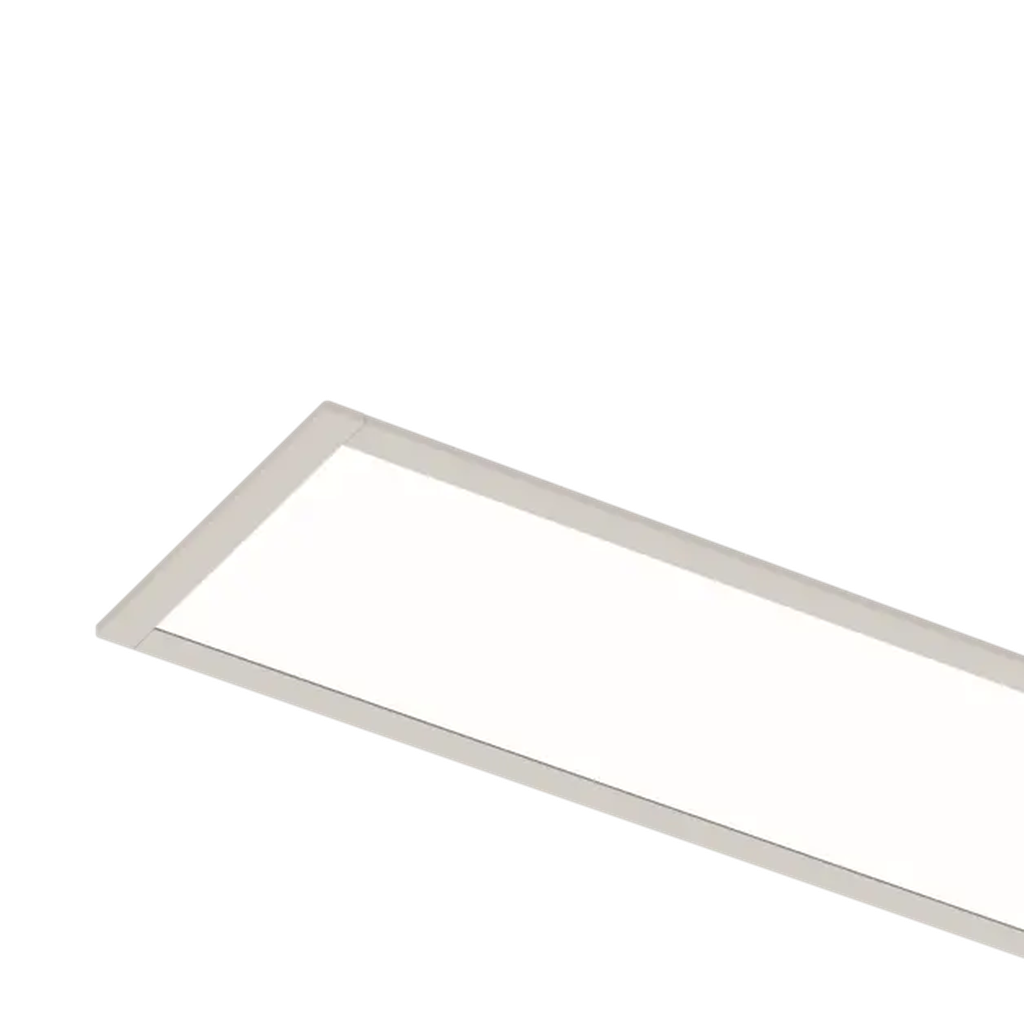

LS1018 | Architectural Linear Recessed LED Profile with Click-In Diffuser

LS1018 is a high-spec recessed linear LED luminaire designed for plasterboard ceilings where visual clarity meets architectural subtlety. With a sleek aluminium housing and seamless trim finish, it delivers efficient, low-glare illumination through a precision-engineered OPAL or microprismatic diffuser. Ideal for office, education, and commercial interiors, LS1018 supports smart control integrations and is built to last with an exceptional lifespan of up to 100,000 hours (L80B10).

🧩 Key Features:

• Recessed Plasterboard Mounting: For clean integration with flush ceiling lines
• Multiple Length Options: Ranging from 545mm to 2170mm to suit continuous runs or modular layouts
• High Efficiency: Outputs from 635–6430 lumens at up to 155 lm/W
• Diffuser Options: Click-in OPAL or MPRM for optimal visual comfort
• DALI/ON-OFF Control: Driver flexibility including emergency and sensor compatibility
• RAL Custom Colours: Standard in white, grey, or black with custom palette options
• Long Life LEDs: L80B10 @ 100,000h and L90B10 @ 64,000h for extended reliability
• Low Glare: UGR options from 15 to 22 for screen-based environments

🏢 Ideal Applications:
Offices, meeting rooms, receptions, classrooms, corridors, and lecture spaces where architectural lighting needs to be visually clean, reliable, and energy-efficient.

📐 Technical Specifications:

• Mounting Type: Recessed plasterboard ceiling
• Light Output: 635 – 6430 lumens
• Power Consumption: 8 – 51W
• Luminous Efficacy: Up to 155 lm/W
• Colour Temperatures: 3000K / 4000K
• CRI: 80 / 90
• UGR Options: 15, 18, 20, 22
• Diffuser Options: OPAL, MPRM
• Driver Type: DALI / ON-OFF
• Dimmable: Optional
• Emergency Capability: Optional emergency module available
• Body Finish: White, grey, black (custom RAL on request)
• Material: Electrostatically painted aluminium
• Impact Resistance: IK04
• IP Rating: IP20
• Operating Temp: 0°C to +40°C
• Lifetime: 100,000h (L80B10)
• Certifications: CE, EAC, HACCP+

💡 Why Specify LS1018?
Because modern commercial lighting should disappear into the ceiling, but not into the background. LS1018 offers clean lines, superb efficiency, and smart control capability, all in one elegantly engineered profile.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.
