LIGHTING SYSTEMS

This new recessed LED luminaires system is expertly designed to create seamless lighting lines without visible connections or mechanical mounting elements. Crafted to utilise flexible extruded diffusers, this system offers an elegant and highly effective lighting solution. It is particularly well-suited for illuminating offices, conference rooms, reception areas, and other prestigious spaces. The refined design not only enhances the aesthetic appeal of these environments but also delivers consistent, high-quality lighting, making it an ideal choice for any professional setting where style and functionality are paramount.

  • Materials: Electrostatically painted trimless aluminum profile (standard colours: white, grey, black), OPAL diffuser made of PMMA or microprismatic diffuser MPRM
  • Installation:

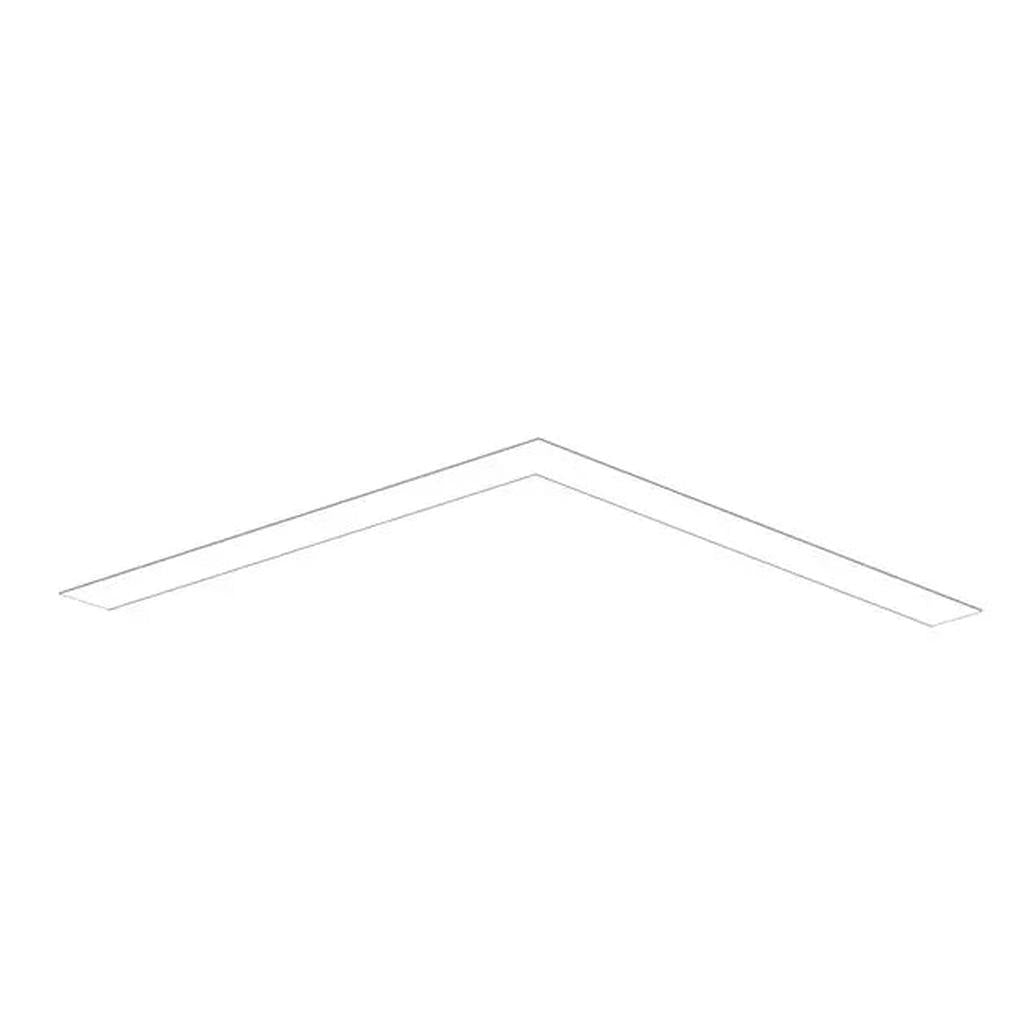

LS1019 | Trimless Recessed L-Shaped LED Luminaire for Plasterboard Corners

The LS1019 is a trimless recessed LED luminaire with an L-shaped geometry, built to create continuous lines of light across internal corners in plasterboard surfaces. Designed for flawless integration, it disappears into the architecture — leaving only a clean, uninterrupted glow that defines and enhances the space.

📐 Key Features:

  • L-Shaped Corner Design: Forms a seamless 90° intersection between ceiling and wall or between two walls
  • Trimless Recessed Mounting: Installs flush into plasterboard with no visible trim — perfect for invisible integration
  • Continuous Opal Diffuser: Creates soft, even illumination along both planes without breaks or hotspots
  • Architectural Detail Lighting: Ideal for feature lighting and spatial zoning in design-led environments
  • Driver Options: Available with ON/OFF or DALI drivers
  • Finish: Hidden trimless finish with visible light only — available in 3000 K or 4000 K

🏨 Ideal Applications:

Boutique hotels, galleries, architectural showrooms, modern residential interiors, and retail concepts seeking premium linear detail lighting

📐 Technical Specifications:

  • Mounting Type: Recessed plasterboard (trimless corner L-shaped integration)
  • Light Distribution: Indirect via opal diffuser
  • Colour Temperature: 3000 K or 4000 K
  • CRI: >80
  • Driver Options: ON/OFF, DALI
  • Protection Rating: IP20
  • Class of Protection: Class I
  • Housing Material: Powder-coated aluminium
  • Diffuser: Opal
  • L-Geometry: 90° internal angle; corner-specific form
  • Finish Options: White (RAL 9003) as standard; custom RAL on request

Why Choose LS1019?

Because lighting shouldn’t interrupt your architecture — it should enhance it. LS1019 turns plasterboard corners into light features, delivering detail-driven impact without visual noise.


DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE llm/W LENGTH (L) WIDTH (W) HEIGHT (H)
25

3,215 llm

 587 (x2) 57 75
CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
