LS1022

LS1022

LIGHTING SYSTEMS

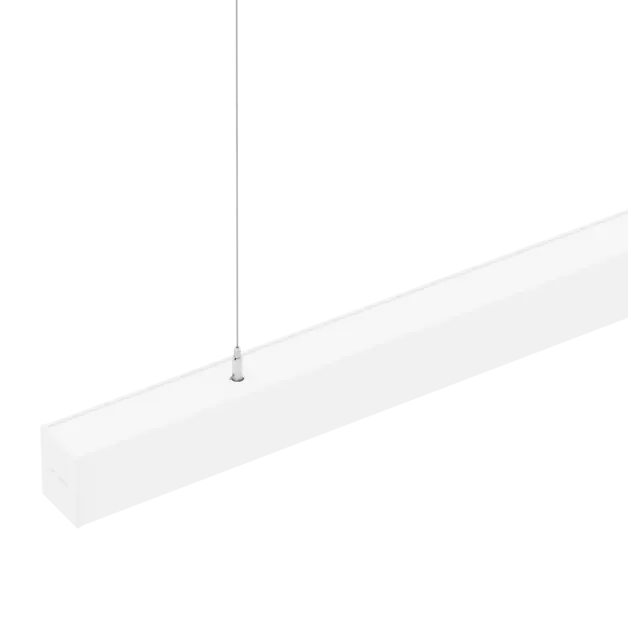

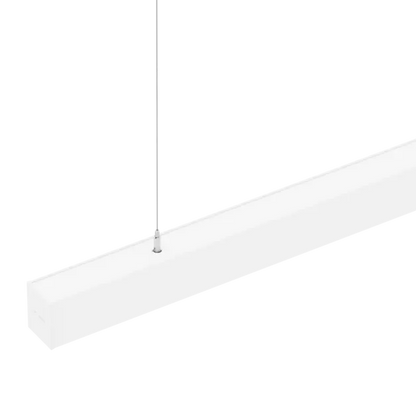

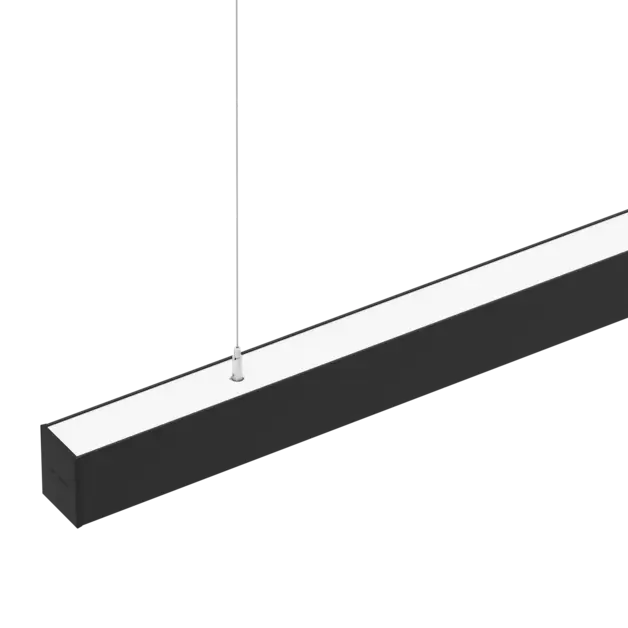

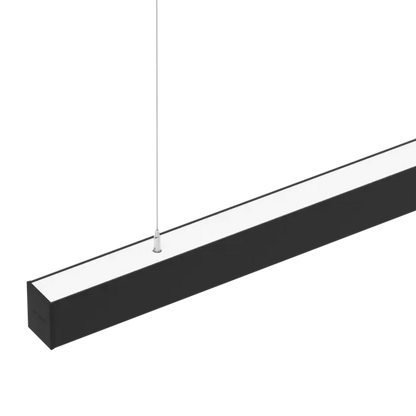

The LS1022 is a newly designed LED lighting system intended for inline installation, offering compatibility with multiple types of diffusers while focusing on ease of mounting. This innovative system integrates the advantages of LED technology with traditional louvers, effectively reducing glare and improving visual comfort. Its elegant and efficient design makes the LS1022 an excellent choice for illuminating offices, conference rooms, reception areas, and other professional environments. Moreover, the LS1022 features the option to incorporate the "Active+" self-learning energy-saving system. This standalone solution includes an integrated LED driver and a compact sensor within the luminaire, making it particularly suitable for refurbishment projects as well as new installations in offices, corridors, and open-plan spaces. The Active+ system enhances energy efficiency while providing high-quality lighting, making it an attractive option for modern workplaces.

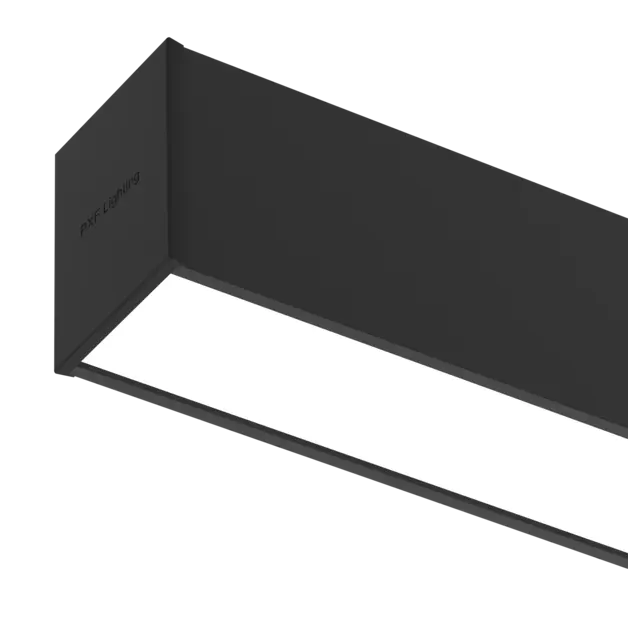

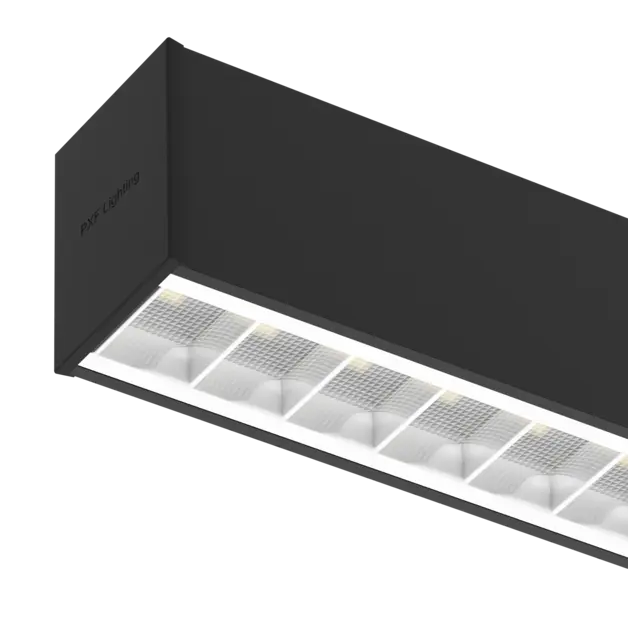

  • Materials: Electrostatically painted aluminum profile (standard color: grey), parabolic louver with microprismatic plate (PAR), microprismatic diffuser (MPRM) made of PMMA or OPAL diffuser made of polycarbonate. DI version: NT joint in set. DI-IN version: top diffuser - OPAL.
  • Installation: Suspended

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE llm/W LENGTH (L) WIDTH (W) HEIGHT (H)
39
2,380
(DI)/1,620 (ID) llm
 1,085 57 75
58
3,680
(DI)/2,430 (ID) llm
 1,625 57 75
77
4,950
(DI)/3,240 (ID) llm
 2,170 57 75
CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
