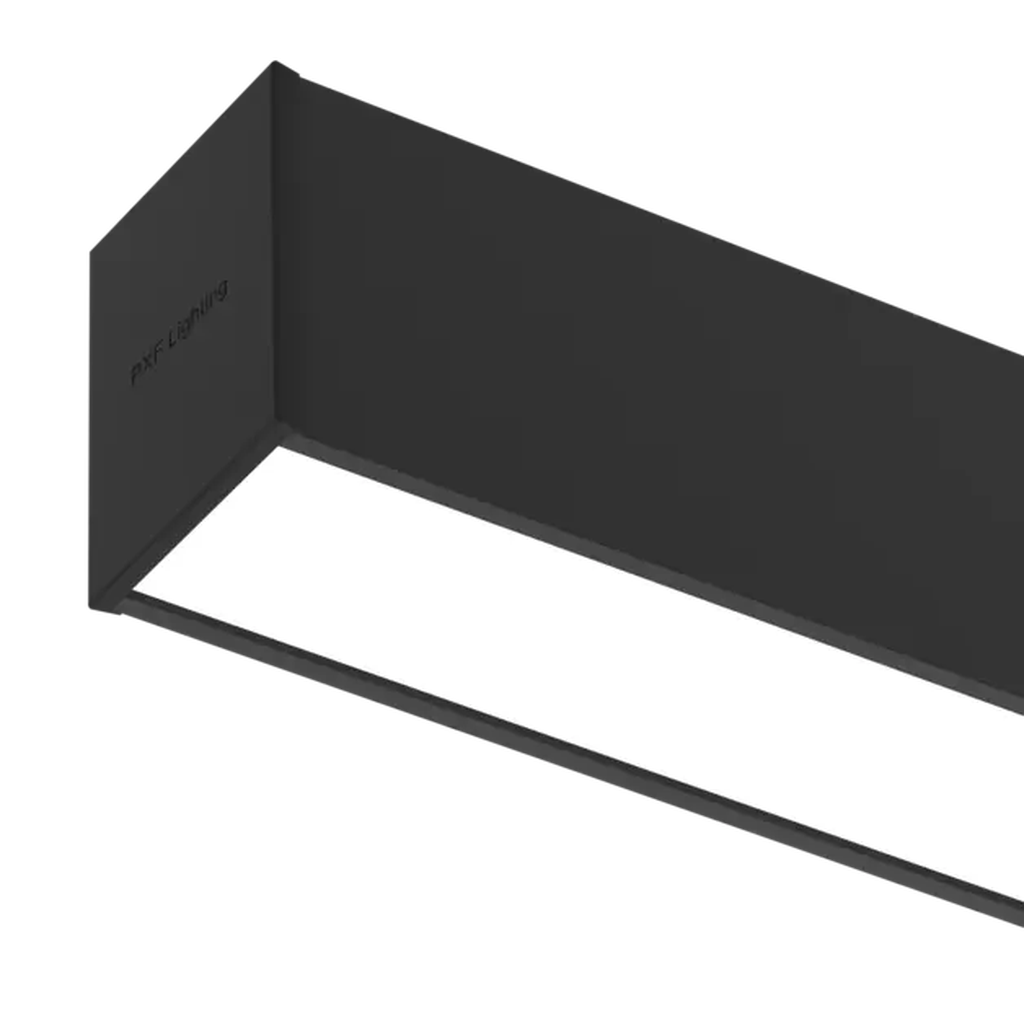

LS1022

LS1022

LIGHTING SYSTEMS

The LS1022 is a newly designed LED lighting system intended for inline installation, offering compatibility with multiple types of diffusers while focusing on ease of mounting. This innovative system integrates the advantages of LED technology with traditional louvers, effectively reducing glare and improving visual comfort. Its elegant and efficient design makes the LS1022 an excellent choice for illuminating offices, conference rooms, reception areas, and other professional environments. Moreover, the LS1022 features the option to incorporate the "Active+" self-learning energy-saving system. This standalone solution includes an integrated LED driver and a compact sensor within the luminaire, making it particularly suitable for refurbishment projects as well as new installations in offices, corridors, and open-plan spaces. The Active+ system enhances energy efficiency while providing high-quality lighting, making it an attractive option for modern workplaces.

  • Materials: Electrostatically painted aluminum profile (standard color: grey), parabolic louver with microprismatic plate (PAR), microprismatic diffuser (MPRM) made of PMMA or OPAL diffuser made of polycarbonate. DI version: NT joint in set. DI-IN version: top diffuser - OPAL.
  • Installation:

LS1022 | Suspended Modular Linear LED Profile with Direct/Indirect Light Distribution

LS1022 is a precision-crafted suspended LED system designed for high-performance, direct and indirect architectural lighting. This modular profile supports continuous line installations and merges glare control, output versatility, and seamless optics — ideal for contemporary commercial environments.



🧩 Key Features:

  • Direct + Indirect Output: Balanced light distribution with upward and downward illumination for spatial comfort
  • High-Efficiency System: Delivers up to 6,640 lm (direct) and 3,840 lm (indirect) across 21–89 W power range
  • Multiple Diffuser Options: Microprismatic (MPRM), opal, and parabolic louver configurations for targeted visual control
  • Driver Configurations: Supports ON/OFF and DALI drivers, with optional emergency and motion sensor modules
  • Smart Upgrade Ready: Compatible with Active+ self-learning energy-saving sensor solution
  • Flexible Finishes: Available in white, grey, black — or fully custom RAL finishes
  • System Integration: Supplied with suspension kits, NT joint, and linear connectors for rapid install

🏢 Ideal Applications:

Large offices, open-plan workspaces, conference rooms, corridors, educational buildings, and retrofit upgrades where high-performance direct/indirect lighting is essential.

📐 Technical Specifications:

  • Mounting Type: Suspended
  • Form: Linear system with direct or direct/indirect output
  • Length Options: 1085 mm, 1165 mm, 1625 mm, 1705 mm, 2170 mm, 2250 mm
  • Power Range: 21 – 89 W
  • Luminous Flux (Direct): 1,060 – 6,640 lm
  • Luminous Flux (Indirect): 680 – 3,840 lm
  • Combined Luminous Output: Up to 5,650 lm
  • Luminous Efficacy: 50 – 158 lm/W
  • UGR: 13 – 20
  • Driver Options: ON/OFF, DALI
  • Diffuser Options: OPAL, MPRM, MPOP, PAR, PARB, PARW
  • CRI: >80 or >90 (830, 840, 930, 940, 8TW)
  • Colour Temperature: 2700 K – 6500 K
  • MacAdam Step: SDCM 3
  • Housing Material: Powder-coated aluminium
  • Finish Options: White, Grey, Black, or any RAL
  • Protection Rating: IP20 or IP30
  • Impact Resistance: IK03 or IK04
  • Class of Protection: Class I
  • Net Weight: 2.65 – 6.05 kg
  • Power Factor: 0.96
  • Emergency Module: Optional
  • Motion Sensor: Optional
  • Flicker: ≤3%
  • Lifespan: 100,000 h (L80B10), 64,000 h (L90B10)
  • Certifications: CE, HACCP+, EAC

Why Specify LS1022?

Because lighting should elevate both form and function — LS1022 brings smart design, elegant flexibility, and high-output performance to modern working environments.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE LUMEN LENGTH (L) WIDTH (W) HEIGHT (H)
39

2,380
(DI)/1,620 (ID) llm

 1,085 57 75
58

3,680
(DI)/2,430 (ID) llm

 1,625 57 75
77
4,950
(DI)/3,240 (ID) llm
 2,170 57 75
