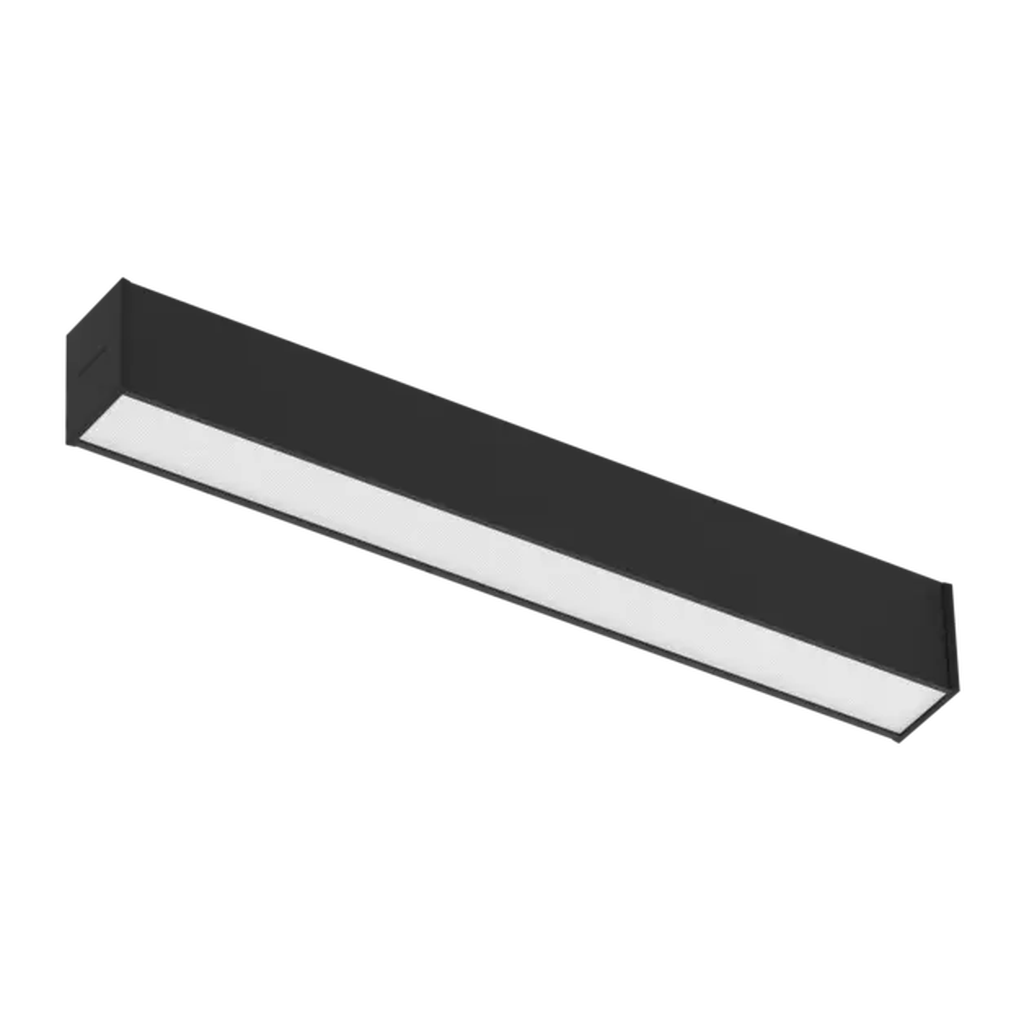

LS1021 | Modular Linear LED Luminaire with Inline Installation and Active+ Smart Control Option

LS1021 is a highly efficient, architecturally refined linear LED luminaire engineered for both surface and suspended mounting. Designed for inline configurations, it features advanced diffuser options and an optional self-learning Active+ driver system, making it the ideal choice for intelligent office environments, educational spaces, and commercial interiors.

🧠 Key Features:

Inline Ready: Built for seamless linear installations with invisible joints and profile continuity

Smart Control (Optional): Active+ self-learning standalone system integrates LED driver and sensor

Optical Flexibility: Choose from parabolic louvers, microprismatic (MPRM), or opal diffusers

Wide Range of Power & Outputs: From 8 W to 60 W, delivering up to 6,640 lm

Driver Options: ON/OFF, DALI, or 1–10V dimming

Colour Finishes: Standard grey, white, black, anthracite — custom RAL available

Glare Control: UGR as low as 15 depending on optic and variant

Long Life: Up to 100,000 h (L80B10) for serious longevity in commercial environments

Optional Modules: Emergency lighting and motion sensors available on request


🏢 Ideal Applications:

Offices, conference rooms, classrooms, corridors, lecture halls, receptions, and commercial workspaces requiring low-glare, high-performance general lighting

📐 Technical Specifications:

Mounting Type: Suspended or ceiling-mounted

Power Consumption: 8 – 60 W

Luminous Flux: 550 – 6,640 lm

Efficacy: 49 – 153 lm/W

Beam Distribution: Medium or wide beam (direct)

Colour Temperatures: 2700 K to 6500 K

CRI: >80 or >90 (830, 840, 930, 940, 827, 8TW)

Driver Options: ON/OFF, DALI, 1–10V

Diffuser Options: Opal, microprismatic (MPRM), parabolic (PAR), and variations

UGR: 15–22

Protection Rating: IP20 or IP30

Impact Resistance: IK03 / IK04

Class of Protection: Class I

MacAdam Step: SDCM 3

Finish Options: Grey (standard), white, black, anthracite, or custom RAL

Certifications: CE, HACCP+, EAC

Lifespan: 100,000 h (L80B10), 64,000 h (L90B10)


Why Specify LS1021?

Because lighting should adapt to your design — not the other way around. LS1021 brings scalable inline installation, ultra-low glare optics, and smart energy-saving options into one unified, linear form.


DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.
WATTAGE llm/W LENGTH (L) WIDTH (W) HEIGHT (H)
13

1,480 llm

 545 57 78
25

2,955 llm

 1,085 57 78
36

4,425 llm

 1,625 57 78
48

5,900 llm

 2,170 57 78
