LS1024

LS1024

LIGHTING SYSTEMS

The latest LED lighting system has been expertly designed for inline installation, offering an elegant and efficient solution for illuminating offices, conference rooms, reception areas, and various other workspaces. This luminaire combines sleek aesthetics with high performance, ensuring that each environment is well-lit and inviting while maintaining energy efficiency. Ideal for modern professional settings, it seamlessly integrates into any design, enhancing both functionality and style.

  • Materials: Electrostatically painted aluminum profile (standard colors: white, grey, black), OPAL diffuser made of polycarbonate.
  • Installation:

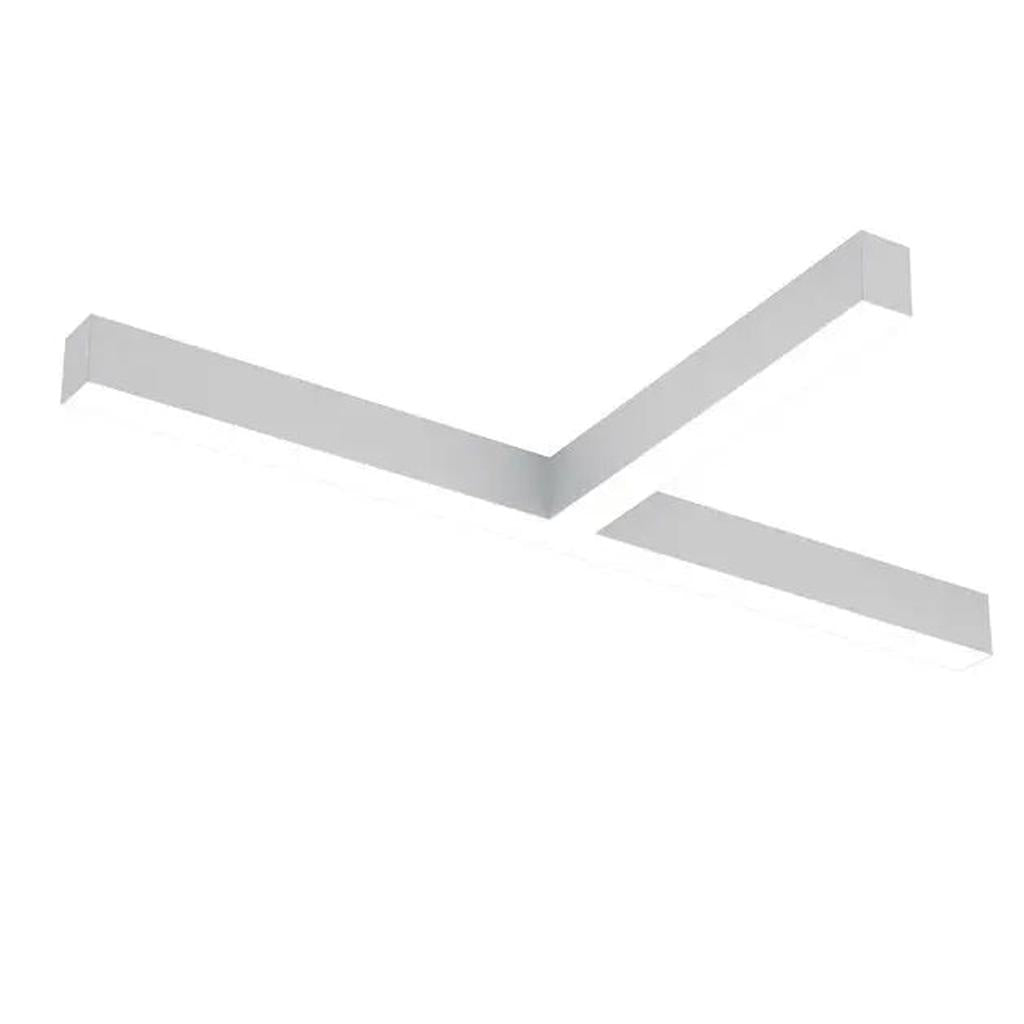

LS1024 | Suspended or Surface-Mounted T-Shape Linear LED Profile for Architectural Light-Line Installations

LS1024 is a T-junction linear LED luminaire engineered for inline lighting configurations within the Sigma II trimless system. It allows for seamless branching in suspended or surface-mounted lighting designs, maintaining visual continuity across ceiling-mounted light lines. With crisp opal or microprismatic optics, it's ideal for architectural spaces requiring both performance and design precision.

🔧 Key Features:

  • T-Junction Profile: Enables clean 90° linear intersections for suspended or surface-mounted installations
  • Trimless Design Language: Matches the Sigma II system aesthetic for uninterrupted architectural lines
  • High-Efficiency Performance: Up to 4,825 lm from just 36 W, with up to 134 lm/W efficacy
  • Driver Options: Choose between ON/OFF or DALI drivers for lighting control flexibility
  • Available Optics: Microprismatic (MPRM) for glare reduction or Opal for diffused uniformity
  • Colour Choices: White, grey, black as standard — any RAL colour available on request
  • Optional Add-Ons: Motion sensor, emergency module, and through wiring (TH5)

🏢 Ideal Applications:

Offices, conference rooms, classrooms, reception areas, commercial corridors — any space using modular ceiling lighting systems that require a clean T-shaped distribution point

📐 Technical Specifications:

  • Mounting Type: Suspended or surface-mounted
  • Power Consumption: 36 W
  • Luminous Flux: 3,515 – 4,825 lm
  • Luminous Efficacy: 98 – 134 lm/W
  • Diffuser Options: Opal or Microprismatic (MPRM)
  • Beam Distribution: Direct (DI)
  • Colour Temperature: 3000 K or 4000 K
  • CRI: >80 or >90 (830, 840, 930, 940)
  • MacAdam Step: SDCM 3
  • UGR: 15
  • Driver Options: ON/OFF, DALI
  • Through Wiring: TH5 compatible
  • Emergency Module: Optional
  • Motion Sensor: Optional
  • Housing Material: Powder-coated aluminium
  • Protection Rating: IP20
  • Impact Resistance: IK04
  • Class of Protection: Class I
  • Weight: 4.1 kg
  • Finish Options: White, grey, black, or any RAL
  • Lifespan: 100,000 h (L80B10), 64,000 h (L90B10)
  • Certifications: CE, HACCP+

Why Specify LS1024?

Because when your lighting design turns a corner, or splits into a T, you want to


DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE llm/W LENGTH (T) WIDTH (W) HEIGHT (H)
36

4,2825 llm

 1117x530 57 75
CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
