LIGHTING SYSTEMS

The latest LED lighting system has been expertly designed for inline installation, offering an elegant and efficient solution for illuminating offices, conference rooms, reception areas, and various other workspaces. This luminaire combines sleek aesthetics with high performance, ensuring that each environment is well-lit and inviting while maintaining energy efficiency. Ideal for modern professional settings, it seamlessly integrates into any design, enhancing both functionality and style.

  • Materials:
  • Installation:

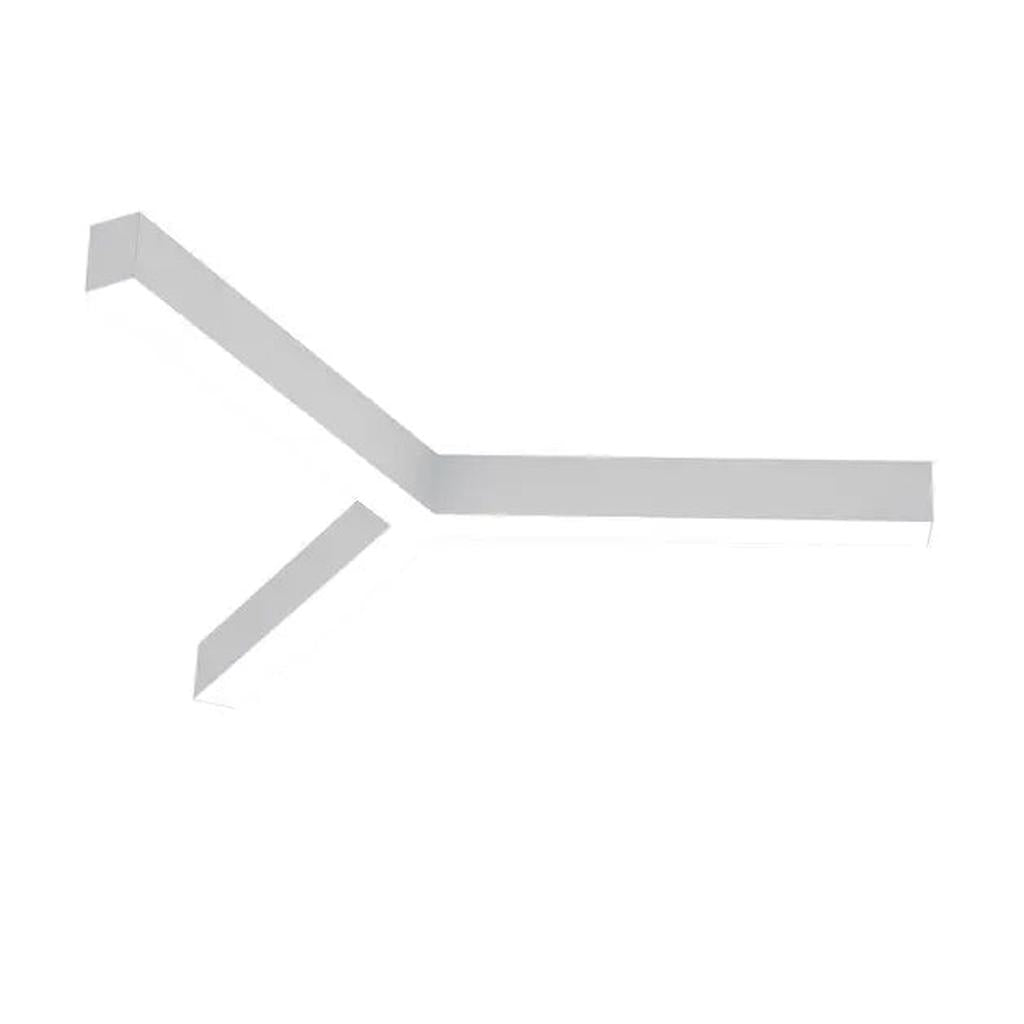

LS1026 | Y-Profile Surface-Mounted Linear LED Luminaire for Ceilings

The LS1026 is a surface-mounted ceiling luminaire with a distinctive Y-shaped housing that brings clean architectural definition to modern interiors. Designed for dry-zone environments, it provides soft, efficient downward lighting through a continuous opal diffuser.

🔧 Key Features:

  • Y-Profile Geometry: Visibly shaped housing adds structure and depth to ceiling-mounted linear lighting layouts.
  • Surface-Mounted Design: Fixed directly to ceiling surfaces — no recessing or trim integration required.
  • Continuous Opal Diffuser: Delivers soft, glare-free lighting for ambient or task-focused applications.
  • Efficient Performance: Up to 107 lm/W, balancing clean output with low energy consumption.
  • Control Options: Available with ON/OFF or DALI drivers.
  • Customisable Finish: Standard in white or black; custom RAL finishes available on request.

🏢 Ideal Applications:
Commercial offices, showrooms, creative studios, circulation areas, and other dry interior spaces needing clean ceiling-mounted linear light.

📐 Technical Specifications:

  • Power Consumption: 15 W, 20 W, 27 W
  • Luminous Flux: 1,570 lm, 2,100 lm, 2,890 lm
  • Luminous Efficacy: Up to 107 lm/W
  • Colour Temperature: 3000 K or 4000 K
  • CRI: >80
  • UGR: <19
  • Driver Options: ON/OFF, DALI
  • Mounting Type: Surface ceiling-mounted
  • Protection Rating: IP20
  • Impact Resistance: IK03
  • Class of Protection: Class I
  • Housing Material: Powder-coated aluminium
  • Diffuser: Opal
  • Dimensions (L x W x H): 600 mm, 900 mm, 1200 mm | W: 58 mm | H: 81 mm
  • Finish Options: White (RAL 9003), Black (RAL 9005), custom colours available on request

🔧 Why Choose LS1026?

It’s a linear ceiling luminaire with attitude — bold in shape, clean in light, and built to elevate standard ceiling lighting into something architectural.


DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE llm/W LENGTH (L) WIDTH (W) HEIGHT (H)
36

4,190 llm

 550(x3) 57 75
