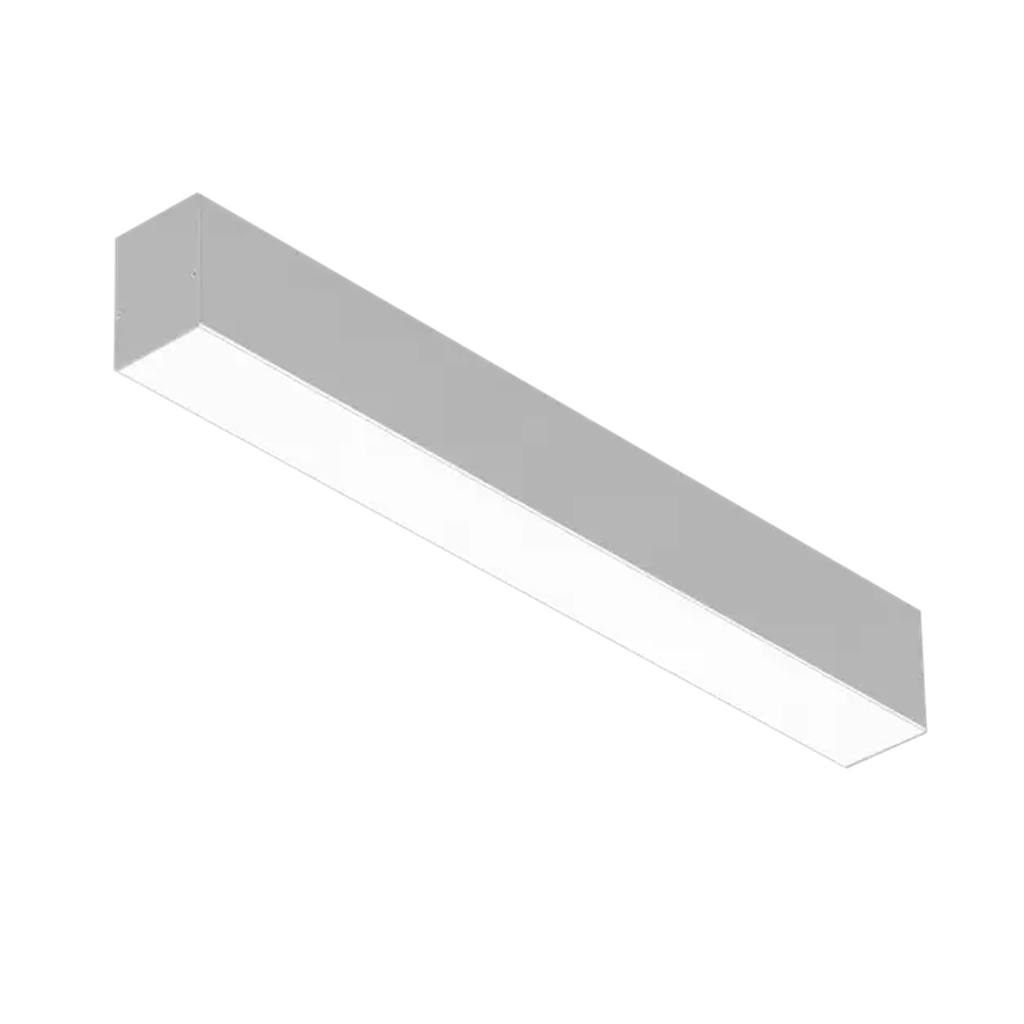

LS1027 | Suspended or Surface-Mounted Trimless Linear LED Profile for Continuous Light-Line Layouts

The LS1027 is a performance-driven trimless LED profile engineered for uninterrupted linear light integration. With a minimalist aesthetic, broad configuration range, and powerful output, it’s ideal for commercial interiors requiring a clean, architectural finish without visible mounting or joins.

🧩 Key Features:

• Trimless Linear Design: Designed for seamless integration in continuous light-line systems
• Length Versatility: Available in multiple pre-configured lengths, from 545 mm to 2230 mm
• Optical Options: Microprismatic (MPRM), multi-prismatic (MPOP), or opal diffuser for tailored lighting effects
• High Efficiency Output: Delivers up to 6,430 lm with efficacy reaching 136 lm/W
  Driver Options: Available with ON/OFF or DALI control
• Advanced Add-Ons: Optional emergency module, motion sensor, and through wiring (TH5) for scalable project flexibility
• Architectural Finishes: Supplied in white, grey, black, or any RAL colour to suit design intent
• System Compatibility: Fully compatible with Sigma II accessories including suspension and mounting kits


🏢 Ideal Applications:

Office interiors, reception areas, open-plan working environments, classrooms, conference rooms, and premium commercial spaces that demand architectural precision and consistent illumination.

📐 Technical Specifications:

• Mounting Type: Suspended or surface-mounted
• Form: Linear trimless LED profile
• Length Options: 545 mm, 625 mm, 1085 mm, 1165 mm, 1624 mm, 1705 mm, 1992 mm, 2170 mm, and more
• Power Range: 13 – 61 W
• Luminous Flux: 1,240 – 6,430 lm
• Luminous Efficacy: 95 – 136 lm/W
• UGR: 22
• Driver Options: ON/OFF, DALI
• Diffuser Options: OPAL, MPRM, MPOP
• CRI: >80 or >90 (830, 840, 930, 940, 9TW)
• Colour Temperature: 2700 K to 6500 K
• MacAdam Step: SDCM 3
• Housing Material: Powder-coated aluminium
• Finish Options: Anthracite (RAL7016), White, Grey, Black, or custom RAL
• Protection Rating: IP20
• Impact Resistance: IK04
• Class of Protection: Class I
• Net Weight: 1.8 – 5.4 kg
• Operating Temperature: +5 to +35°C
• Power Factor: 0.96
• Emergency Module: Optional
• Motion Sensor: Optional
• Through Wiring: TH5
• Flicker: ≤3%
• Lifespan: 100,000 h (L80B10), 64,000 h (L90B10)
• Certifications: CE, HACCP+


Why Specify LS1027?

Because in architectural lighting, clean lines and high performance shouldn’t be a trade-off — LS1027 delivers both, with invisible joins, broad compatibility, and a finish that’s as sleek as the light it delivers.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.
