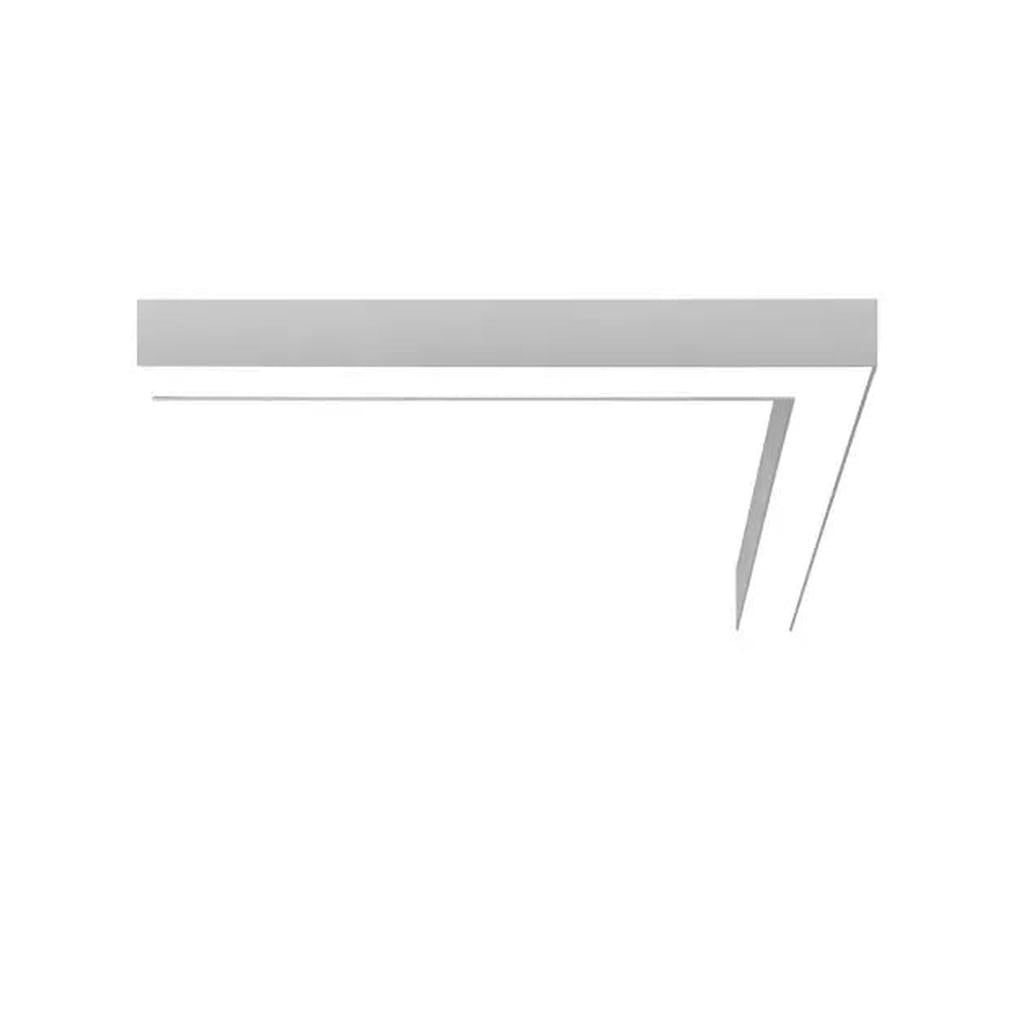

LS1030
LS1030
LIGHTING SYSTEMS
The LS1030 lighting system features luminaires made from high-quality aluminum, designed to deliver a direct (DI) lighting beam through an OPAL diffuser. These luminaires come with a variety of additional mounting accessories, making them easy to install and allowing for multiple universal configurations to meet diverse lighting needs. In its standard version, the LS1030 offers the option for gradual adjustments of the lighting beam, enabling tailored illumination for different environments.
- Materials: Powder painted aluminum profile (grey colour in standard). OPAL diffuser.
- Installation:
Link to this
LS1030 | Corner Section for the LS1035 to Create Continous Illumination
The LS1030 is a purpose-built internal corner profile designed to seamlessly connect linear luminaires in the VIP system at 90° junctions. It maintains continuous light flow, architectural symmetry, and visual cohesion, ideal for uninterrupted linear runs around room perimeters, alcoves, or bespoke design layouts.
🧩 Key Features:
- System Connector Profile: Designed specifically to join VIP luminaires at internal corners — clean, crisp transitions with no light gaps.
- Seamless Aesthetics: Maintains continuous illumination and architectural rhythm throughout linear installations.
- Space-Aware Design: Precision-cut for tight corner integrations in corridors, feature walls, or spatial outlines.
- IP44 Rated: Suitable for damp environments such as bathrooms, spas, and wellness areas.
- Match-Finish Options: Supplied in white or black to align perfectly with the VIP luminaire range — custom colours available on request.
- Easy Integration: Compatible with all VIP linear wall-mounted luminaires for consistent performance and installation simplicity.
🏨 Ideal Applications:
Linear wall systems in hotels, spas, high-end bathrooms, galleries, and bespoke interiors where uninterrupted light lines and tight architectural detailing are required.
📐 Technical Specifications:
- Type: Internal 90° corner luminaire (connector profile)
- Power Consumption: Matched to adjacent luminaires (9–27W range)
- Luminous Flux: Up to 3,020 lm
- Luminous Efficacy: Up to 112 lm/W
- Colour Temperature: 3000K or 4000K
- CRI: >80
- UGR: <19
- Driver Options: Matches connected luminaires (ON/OFF, DALI)
- Mounting Type: Surface, internal corner
- Protection Rating: IP44
- Impact Resistance: IK03
- Class of Protection: Class I
- Housing Material: Powder-coated aluminium
- Diffuser: Opal
- Dimensions: Tailored to system specs (L-shape form factor)
- Finish Options: White (RAL 9003), Black (RAL 9005), custom RAL on request
🛠 Why Use the LS1030?
Because light lines should flow — not stop at corners. The LS1030 ensures your VIP system wraps seamlessly around spaces, preserving design intent and delivering visual continuity in every direction.
DIMENSIONS
NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.
WATTAGE (W) | LUMEN | LENGTH (L) | WIDTH (W) | HEIGHT (H) |
---|---|---|---|---|
60 | 6000llm | 1870 | 208 | 145 |
