LS1031

LS1031

LIGHTING SYSTEMS

The LS1031 lighting system features luminaires made from high-quality aluminum, designed to deliver a direct (DI) lighting beam through an OPAL diffuser. These luminaires come with a variety of additional mounting accessories, making them easy to install and allowing for multiple universal configurations to meet diverse lighting needs. In its standard version, the LS1031 offers the option for gradual adjustments of the lighting beam, enabling tailored illumination for different environments.

  • Materials: Powder painted aluminum profile (grey colour in standard). OPAL diffuser.
  • Installation:

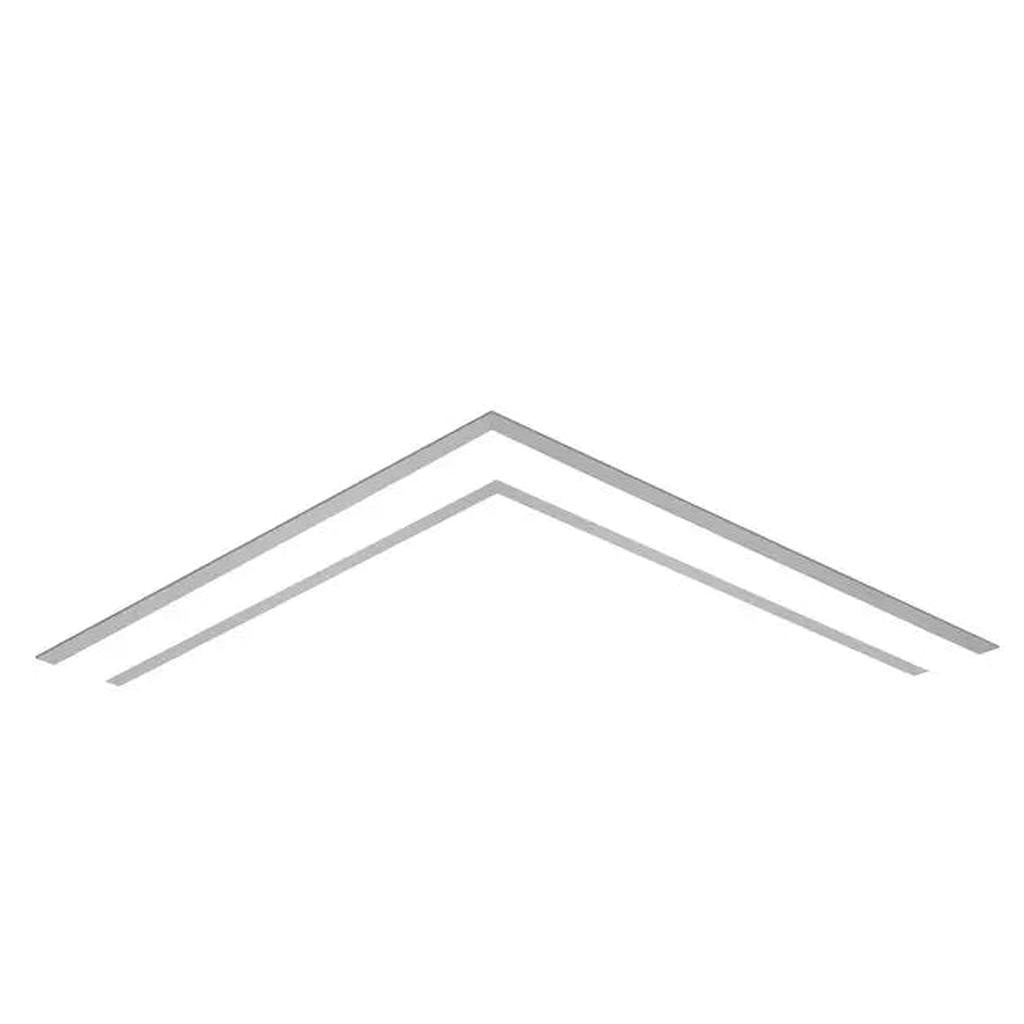

LS1031 | Architectural Corner-Mount LED Luminaire for Clean Linear Integration

The LS1031 VIP GK Corner LED is a cleverly engineered linear luminaire designed to mount seamlessly into 90° internal corners — blending architecture and light into one continuous design gesture. Ideal for corridors, alcoves, bathrooms and boutique interiors, it delivers soft, diffused light that elevates form and function without clutter.

📐 Key Features:

  • Corner-Specific Design: Engineered to fit snugly into 90° corners — providing clean, continuous wall-wash lighting with zero intrusion.
  • Architectural Minimalism: Blends into walls with elegant geometry and high-spec finishes.
  • Soft Diffused Output: Opal diffuser ensures ambient, glare-free illumination — ideal for mood-setting or guiding paths.
  • IP44 Rating: Splash-proof and moisture-resistant for use in damp zones including hotel en-suites, spas, and upscale bathrooms.
  • Customisable Aesthetic: Standard finishes in white or black; bespoke RAL colours available on request.
  • Smart Control Options: Available with ON/OFF and DALI drivers for integration into advanced lighting control systems.

🏨 Ideal Applications:

Boutique hotels, corridor lighting, wellness and spa environments, residential bathrooms, galleries, and any space where architecture deserves integrated illumination.

💡 Technical Specifications:

  • Power Consumption: 9–27W
  • Luminous Flux: 1,100–3,020 lm
  • Luminous Efficacy: Up to 112 lm/W
  • Colour Temperature: 3000K or 4000K
  • CRI: >80
  • UGR: <19
  • Driver Options: ON/OFF, DALI
  • Mounting Type: 90° internal corner, surface mounted
  • Protection Rating: IP44
  • Impact Resistance: IK03
  • Class of Protection: Class I
  • Housing Material: Powder-coated aluminium
  • Diffuser: Opal
  • Dimensions: L: 600 mm / 900 mm / 1200 mm | H: 45 mm | D: 68 mm
  • Finish Options: White (RAL 9003), Black (RAL 9005), custom RAL on request

📏 Why Specify the LS1031?

Because walls shouldn’t have all the fun. The LS1031 transforms dead corners into design features — bringing functional lighting, architectural sharpness, and high-spec performance together in one beautifully understated solution.



DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE (W) llm/W LENGTH (L) WIDTH (W) HEIGHT (H)
25

3,710 llm

 630(x2) 73 76
CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.

1 3
