The LS1031 lighting system features luminaires crafted from durable aluminum, designed to deliver a direct (DI) lighting beam through the use of an OPAL diffuser. This combination ensures effective light distribution while maintaining an aesthetically pleasing design, making it suitable for various applications in both residential and commercial spaces. The versatility of these luminaires allows for easy installation and integration into different environments, providing a modern and efficient lighting solution.

  • Materials: Powder painted aluminum profile (grey colour in standard). OPAL diffuser.
  • Installation:

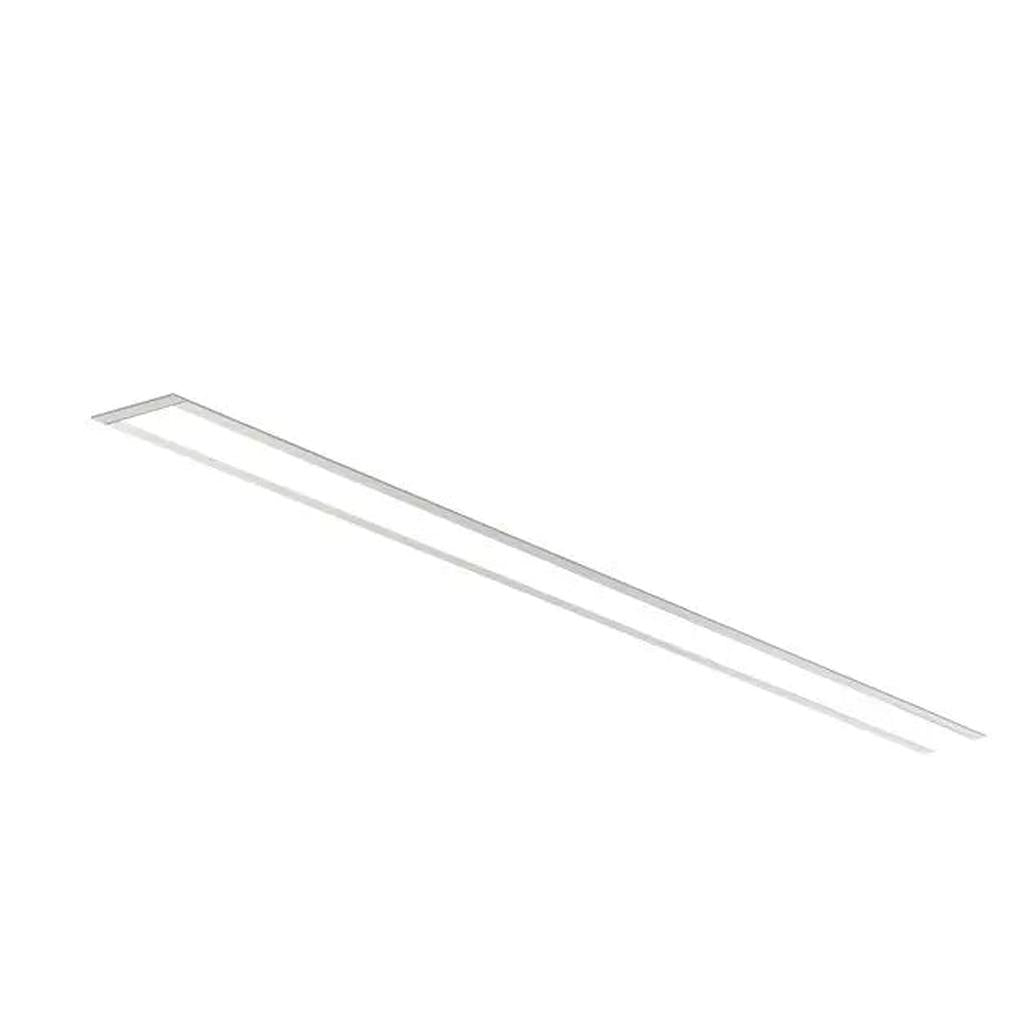

LS1033 | Minimalist Linear Wall LED Luminaire for Architectural Interiors

The LS1033 VIP GK LED is the design-forward choice for linear wall-mounted lighting in commercial, hospitality, and high-end residential spaces. Its clean geometry and soft, even light make it a staple for mirror lighting, corridor accents, and ambient enhancement — delivering premium performance with subtle flair.

💡 Key Features:

  • Architectural Form Factor: Minimalist linear design that integrates beautifully into modern interiors.
  • Uniform Illumination: Opal diffuser provides soft, glare-free lighting ideal for ambient or functional use.
  • Energy-Efficient Performance: Up to 112 lm/W — combining low energy use with consistent output.
  • Custom Finish Flexibility: Standard white or black powder coat; RAL colours available on request for full project alignment.
  • Smart Control Options: ON/OFF and DALI drivers available for both standard and intelligent lighting systems.
  • Versatile Mounting: Can be installed horizontally above mirrors or vertically as a design feature.

🏨 Ideal Applications:

Hotels, residential bathrooms, wellness centres, spas, mirror lighting, corridors, and feature walls in upscale interior schemes.

📐 Technical Specifications:

  • Power Consumption: 9–27W
  • Luminous Flux: 1,100–3,020 lm
  • Luminous Efficacy: Up to 112 lm/W
  • Colour Temperature: 3000K or 4000K
  • CRI: >80
  • UGR: <19
  • Driver Options: ON/OFF, DALI
  • Mounting Type: Surface wall-mounted (horizontal or vertical)
  • Protection Rating: IP20
  • Impact Resistance: IK03
  • Class of Protection: Class I
  • Housing Material: Powder-coated aluminium
  • Diffuser: Opal
  • Dimensions: L: 600 mm / 900 mm / 1200 mm | H: 45 mm | D: 68 mm
  • Finish Options: White (RAL 9003), Black (RAL 9005), custom colours available

🛠 Why Choose the LS1033?

Because simple doesn’t have to mean basic. The LS1033 is a refined architectural solution that adds visual balance, comfort, and performance — exactly what’s needed to elevate everyday environments with a touch of lighting intelligence.

DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE LUMEN LENGTH (L) WIDTH (W) HEIGHT (H)
13

1,855 llm

 585 73 86
19

2,775 llm

 875 73 86
25

3,710 llm

 1165 73 86
32

4,630 llm

 1455 73 86
37

5,550 llm

 1745 73 86
43

6,485 llm

 2035 73 86
CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
