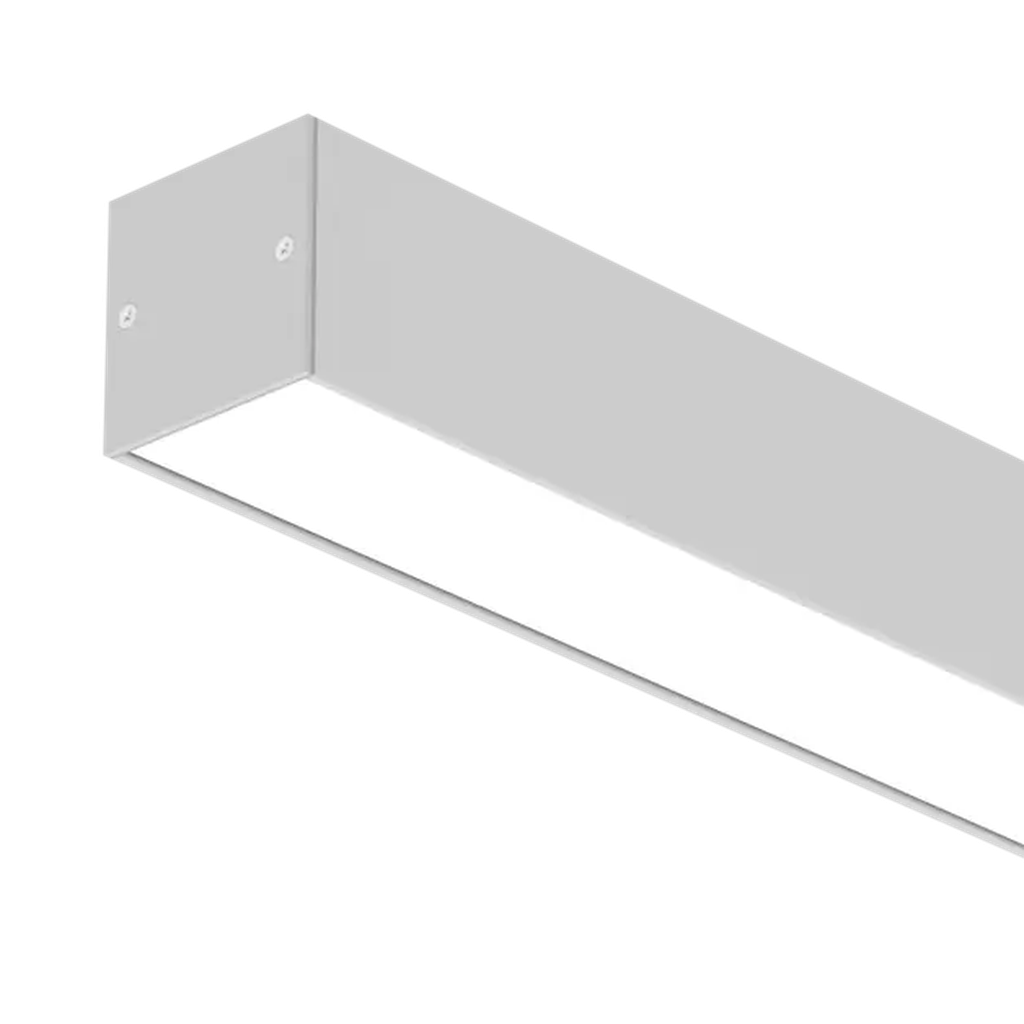

LS1034

LS1034

LIGHTING SYSTEMS

The LS1034 series lighting luminaire is designed for direct light distribution and enhanced tightness, making it ideal for a variety of demanding environments. Constructed from a high-durability aluminum profile, this luminaire is specifically suited for LED installations. It features an innovative design that allows for installation under ledges, roofs, in underpasses, bathrooms, and other areas requiring a higher degree of protection against moisture and dust. The luminaire comes with end caps included, and a unique linear joint enables seamless connection to a lighting line without the need to remove the end caps, ensuring both functionality and ease of installation.

  • Materials: Electrostatically painted aluminum profile (gray color as a standard). OPAL or MPRM diffuser. NOTE: the cable for connecting into a lighting line is not supplied with the luminaires. TH5 wiring blocks are located at both ends of the luminaire. Connecting the luminaires in a line should be done with an external cable led outside the adjacent luminaires.
  • Installation:

LS1034 | IP44-Rated Linear LED Wall Luminaire for Bathrooms & Hospitality

The LS1034 VIP IP44 LED is a minimalist, moisture-resistant wall luminaire that combines architectural finesse with functional resilience. With its slimline profile, uniform opal diffuser, and splashproof protection, it delivers elegant linear lighting for high-end interiors where humidity is a factor — and style is non-negotiable.

🚿 Key Features:

  • IP44 Certified: Designed for damp environments — ideal for hotel bathrooms, wellness spaces, and spa interiors.
  • Architectural Profile: Slim, linear housing adds a refined design edge to walls, mirrors, and corridors.
  • Soft, Uniform Illumination: Opal diffuser ensures even light distribution and glare-free comfort.
  • Energy Efficient: Achieves up to 112 lm/W for long-term energy savings without compromising performance.
  • Finish Flexibility: Supplied in white or black as standard — custom RAL finishes available on request.
  • Mounting Versatility: Can be installed horizontally above mirrors or vertically along architectural features.
  • Control Options: ON/OFF and DALI drivers available for modern lighting systems.

🏨 Ideal Applications:

Hotel en-suites, bathroom mirrors, spa areas, luxury residential wet zones, wellness centres, and boutique hospitality projects requiring both form and protection.


📐 Technical Specifications:

  • Power Consumption: 9–27W
  • Luminous Flux: 1,100–3,020 lm
  • Luminous Efficacy: Up to 112 lm/W
  • Colour Temperature: 3000K or 4000K
  • CRI: >80
  • UGR: <19
  • Driver Options: ON/OFF, DALI
  • Mounting Type: Surface wall-mounted (horizontal or vertical)
  • Protection Rating: IP44
  • Impact Resistance: IK03
  • Class of Protection: Class I
  • Housing Material: Powder-coated aluminium
  • Diffuser: Opal
  • Dimensions: L: 600 mm / 900 mm / 1200 mm | H: 45 mm | D: 68 mm
  • Finish Options: White (RAL 9003), Black (RAL 9005), custom colours available

🛠 Why Choose the LS1034?

Because premium lighting doesn’t stop at dry zones. The LS1034 is the architectural answer to lighting in humid environments — marrying moisture resistance with minimalist elegance in one sharp linear package.


DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE llm/W LENGTH (L) WIDTH (W) HEIGHT (H)
13

1,855 llm

 585 73 86
19

2,775 llm

 875 73 86
25

3,710 llm

 1165 73 86
32

4,630 llm

 1455 73 86
37

5,550 llm

 1745 73 86
43

6,485 llm

 2035 73 86
