LS1035

LS1035

LIGHTING SYSTEMS

Introducing a modern line of system luminaires crafted from a high-resistance aluminum profile, designed for durability and performance. These luminaires feature a direct (DI) lighting beam achieved through the use of either a microprismatic or OPAL diffuser, providing versatile lighting solutions for various applications. The series includes a range of additional mounting accessories that facilitate easy installation, allowing for numerous universal configurations to meet the specific needs of any space. Whether for commercial, industrial, or residential use, this luminaire line combines aesthetics and functionality seamlessly.

  • Materials: Powder painted aluminum proflie (grey, white, black colours in standard), OPAL or MPRM diffuser.
  • Installation:

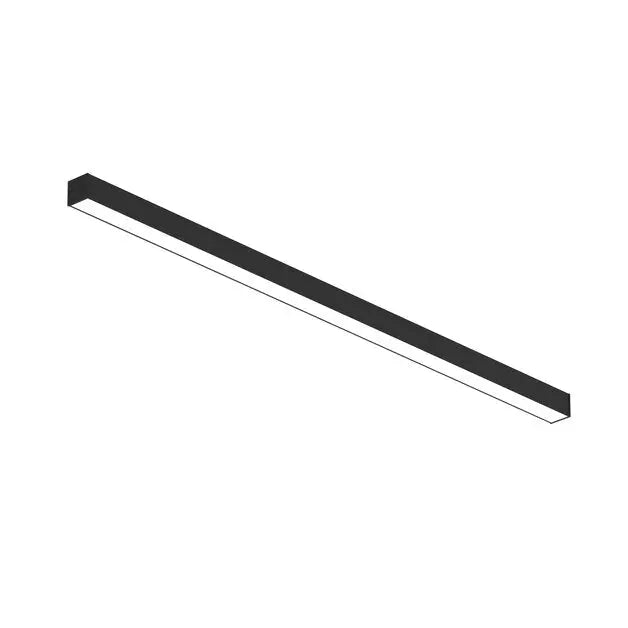

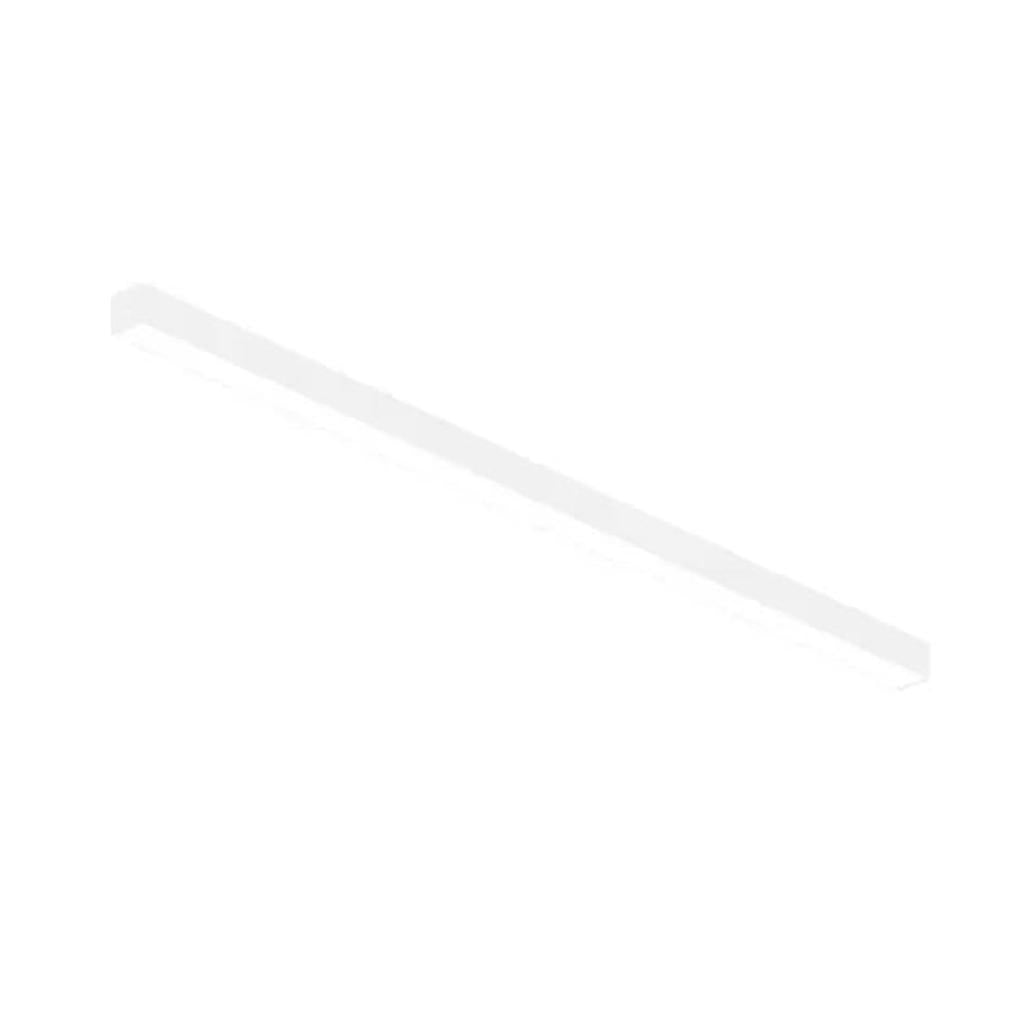

LS1035 | Surface-Mounted Linear LED Luminaire for Ceilings & Dry Zones

The LS1035 is a surface-mounted linear LED luminaire engineered for ceiling applications in dry indoor environments. With its clean lines, opal diffuser, and efficient output, it delivers elegant, uniform illumination, ideal for commercial spaces that favour architectural simplicity and reliable performance.

💡 Key Features:

  • Ceiling-Mounted Linear Form: Slim, surface-mounted design ideal for corridors, offices, and open-plan areas.
  • Clean Direct Lighting: Uniform downward illumination via opal diffuser for functional yet visually comfortable light.
  • Energy Efficient: High luminous efficacy — up to 112 lm/W — ensuring reduced energy costs with strong performance.
  • Design Flexibility: Available in white or black as standard; custom RAL colours available to match project palettes.
  • Control Compatibility: Supports ON/OFF and DALI drivers for integration into modern lighting control systems.

🏢 Ideal Applications:

Office ceilings, commercial corridors, education facilities, retail zones, reception areas, and any dry-zone interior requiring clean ceiling-mounted lighting.

📐 Technical Specifications:

  • Power Consumption: 9–27W
  • Luminous Flux: 1,100–3,020 lm
  • Luminous Efficacy: Up to 112 lm/W
  • Colour Temperature: 3000K or 4000K
  • CRI: >80
  • UGR: <19
  • Driver Options: ON/OFF, DALI
  • Mounting Type: Surface ceiling-mounted
  • Protection Rating: IP20
  • Impact Resistance: IK03
  • Class of Protection: Class I
  • Housing Material: Powder-coated aluminium
  • Diffuser: Opal
  • Dimensions: L: 600 mm / 900 mm / 1200 mm | H: 45 mm | D: 68 mm
  • Finish Options: White (RAL 9003), Black (RAL 9005), custom RAL on request

🔧 Why Choose the LS1035?

It’s a no-fuss ceiling solution built for visual consistency and long-term efficiency — the smart choice for dry-zone interiors that value clarity, reliability, and architectural clean lines.


DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE llm/W LENGTH (L) WIDTH (W) HEIGHT (H)
13

1,855 llm

 585 65 65
19

2,775 llm

 875 65 65
25

3,710 llm

 1165 65 65
32

4,630 llm

 1455 65 65
37

5,550 llm

 1745 65 65
43

6,485 llm

 2035 65 65
CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
