Introducing the LS1036, a new, subtle, and miniaturized lighting luminaire designed for versatility and elegance. Its body is crafted from high-quality aluminum profile, ensuring durability while providing a sleek appearance. The LS1036 features a direct (DI) lighting beam powered by energy-efficient LEDs, delivering bright and focused illumination. Additionally, the luminaire comes with various accessories that allow for multiple configurations, making it an ideal choice for diverse lighting applications in both residential and commercial settings. Its compact design and functionality make it perfect for those seeking a modern lighting solution that seamlessly integrates into any environment.

  • Materials: Powder painted aluminum profile (standard color: grey); OPAL diffuser.
  • Installation:

LS1036 | Mini Corner L Section LED Feature Luminaire

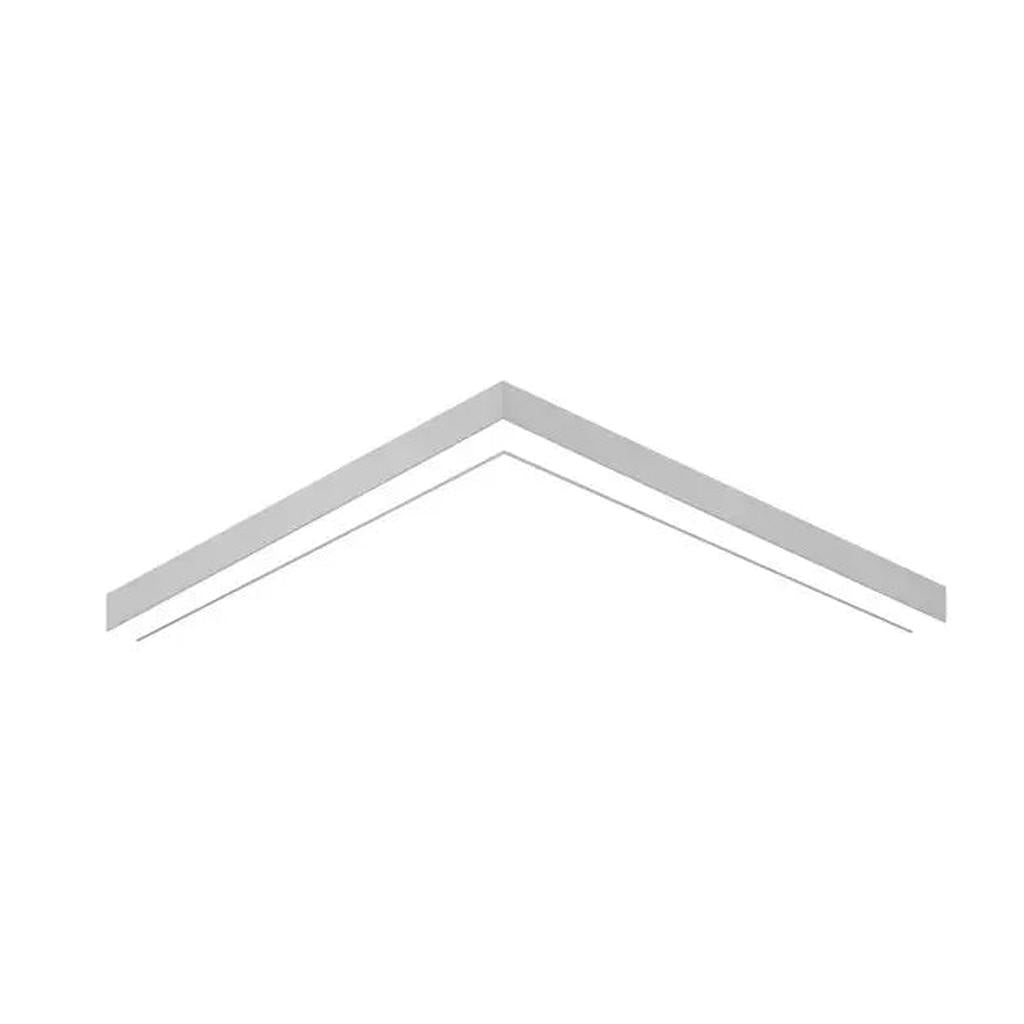

The LS1036 is a compact, surface-mounted linear LED luminaire designed for 90° internal corners.

Whether installed where two walls meet or along the wall-to-ceiling junction, it delivers a clean, continuous line of indirect light that subtly enhances the geometry of interior spaces.

📐 Key Features:

  • Corner-Specific Mounting: Designed for internal 90° junctions, perfect for transitions between walls or wall-to-ceiling planes
  • Subtle, Indirect Glow: Opal diffuser emits soft ambient light, ideal for perimeter accents or spatial definition
  • Compact Architectural Form: Part of the Mini range, ideal for design-led interiors with minimalist detailing
  • Flexible Control Options: Available with ON/OFF or DALI drivers
  • Customisable Aesthetic: White or black finish as standard, with custom RAL colours available on request

🏨 Ideal Applications:

Boutique hotel corridors, residential feature lighting, galleries, high-end office interiors, and creative architectural projects where integrated corner lighting enhances the spatial experience

📐 LS1036 Technical Specifications:

  • Power Consumption: 9 W, 13 W, 18 W
  • Luminous Flux: 1,110 lm, 1,500 lm, 2,080 lm
  • Luminous Efficacy: Up to 115 lm/W
  • Colour Temperature: 3000 K or 4000 K
  • CRI: >80
  • UGR: <19
  • Driver Options: ON/OFF, DALI
  • Mounting Type: Surface-mounted, internal 90° corner
  • Protection Rating: IP20
  • Impact Resistance: IK03
  • Class of Protection: Class I
  • Housing Material: Powder-coated aluminium
  • Diffuser: Opal
  • Dimensions (L x W x H): 600 mm, 900 mm, 1200 mm | W: 45 mm | H: 68 mm
  • Finish Options: White (RAL 9003), Black (RAL 9005), custom colours available on request

Why Choose LS1036?

It’s where architecture and lighting intersect, literally. LS1036 adds subtle illumination and strong design intent to corners that usually get ignored, turning them into part of the visual rhythm of a space.


DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE llm/W LENGTH (L) WIDTH (W) HEIGHT (H)
31

3,454 llm

 611(x2) 65 65
