LS1037

LS1037

LIGHTING SYSTEMS

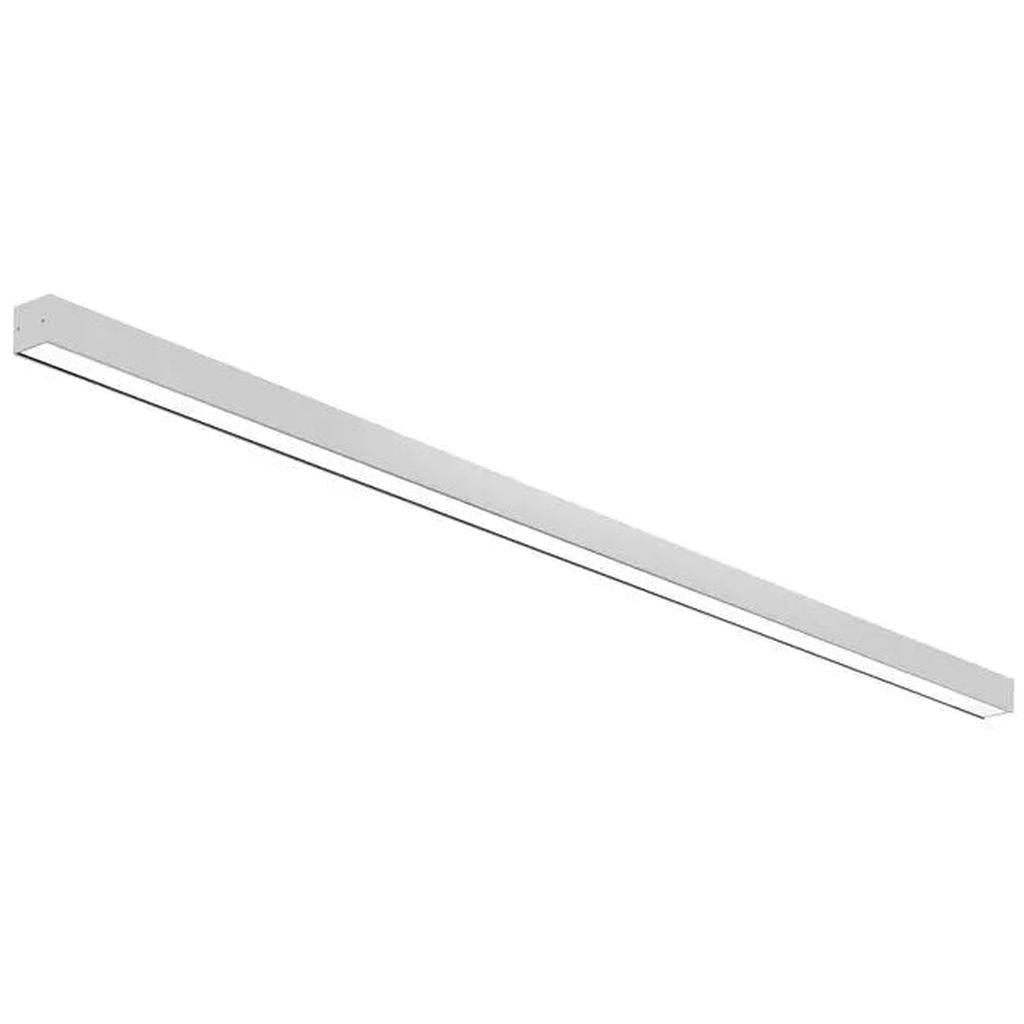

Introducing the LS1037, a new, subtle, and miniaturized lighting luminaire designed for flexibility and style. The body is constructed from high-quality aluminum profile, offering both durability and a sleek look. The LS1037 provides both direct (DI) and indirect (IN) lighting beams, powered by energy-efficient LEDs, allowing for versatile illumination options. With additional accessories available, this luminaire can be configured in various ways to suit different lighting needs, making it an excellent choice for enhancing both residential and commercial spaces. Its compact design and multifunctionality make it an ideal solution for modern lighting applications.

  • Materials: Powder painted aluminum profile (standard color: grey); microprismatic diffuser (MPRM).
  • Installation:

LS1037 | Compact Surface-Mounted Linear LED Luminaire for Ceilings or Walls

The LS1037 is a minimalist, surface-mounted LED luminaire that delivers clean, downward light through a soft opal diffuser. Designed for wall or ceiling applications, it brings subtle architectural definition to dry interior spaces where visual clarity and compact form are key.

📐 Key Features:

  • Flexible Mounting: Suitable for both wall and ceiling installations — horizontally or vertically
  • Architectural Mini Format: Slim profile makes it ideal for discreet yet effective linear lighting
  • Uniform Light Output: Opal diffuser delivers consistent, glare-free downward illumination
  • Smart Control Options: Choose between ON/OFF and DALI driver configurations
  • Finish Customisation: White and black as standard, with bespoke RAL colours available on request

🏢 Ideal Applications:

Corridors, hotel rooms, stairwells, office interiors, residential spaces, and display environments where soft, direct lighting and minimal visual bulk are desired

📐 Technical Specifications:

  • Power Consumption: 9 W, 13 W, 18 W
  • Luminous Flux: 1,110 lm, 1,500 lm, 2,080 lm
  • Luminous Efficacy: Up to 115 lm/W
  • Colour Temperature: 3000 K or 4000 K
  • CRI: >80
  • UGR: <19
  • Driver Options: ON/OFF, DALI
  • Mounting Type: Surface-mounted (wall or ceiling)
  • Protection Rating: IP20
  • Impact Resistance: IK03
  • Class of Protection: Class I
  • Housing Material: Powder-coated aluminium
  • Diffuser: Opal
  • Dimensions (L x W x H): 600 mm, 900 mm, 1200 mm | W: 45 mm | H: 68 mm
  • Finish Options: White (RAL 9003), Black (RAL 9005), custom colours on request

Why Choose LS1037?

Because sometimes the best lighting disappears into the design — quietly doing its job while elevating the space. LS1037 is compact, clean, and built to blend in while shining out.


DIMENSIONS

NOTE: All dimensions are measured in millimeters (mm). Lumens are delivered and based on 4000K. Changing some options may affect the lumen value - please contact sales if you are unsure.

WATTAGE llm/W LENGTH (L) WIDTH (W) HEIGHT (H)
17

1,855 llm

 585 65 65
24

2,775 llm

 875 65 65
31

3,710 llm

 1165 65 65
38

4,630 llm

 1455 65 65
44

5,550 llm

 1745 65 65
CONTINUE TO CUSTOMISE

KEY HIGHLIGHTS

  • Energy Efficiency

    We are commited to utilising the most energy-efficient lighting solutions on the market. Sustainable choices for your business or private use.

  • Long Life Electronics

    Recent advancements make the switch to LED a long-lasting investment. Embrace the durability and energy-saving features for an eco-friendly choice.

  • Certified Quality System

    Manufactured and audited to ISO9001:2015 by TÜV SÜD Rheinland.
