LS1053 | Scalable Linear LED System with Multiple Diffuser Options, Mounting Styles and High-Efficiency Output
LS1053 is a professional-grade linear lighting system engineered for flexibility, performance, and clean architectural integration. Offered in six lengths and multiple wattages, it's designed for surface or pendant installation - and can be installed individually or as part of a continuous light line.
With a broad range of diffuser types, CRI options, and colour temperatures, LS1053 adapts to any environment demanding glare control, uniformity, and a high-spec finish.
🧩 Key Features:
Scalable Format: Available in 560mm, 840mm, 1120mm, 1400mm, 1680mm, 1960mm, and 2240mm lengths
Wide Power Range: 15W to 55W - tailored for varying ceiling heights and light levels
Modular Light-Line Compatibility: Designed to form seamless continuous lines or operate as standalone units
High Luminous Output: Up to 9420 lumens per unit; luminous efficacy of 90-172 lm/W
Multiple Optic Options: Choose from parabolic louvers (PRS-B, PRS-W, PRS-M), microprismatic (MPRM), opal (OPAL), or microprism opal (MPOP) for fine-tuned visual comfort
Surface or Pendant Installation: Mount directly to the ceiling or suspend with simple or electric suspension kits
Customisable Light Quality: CRI 80 or 90; Colour temps 3000K / 4000K; Beam angles 65° or 80°
Smart Controls: DALI or ON/OFF driver options; Emergency module and motion sensor available
Body Finishes: Black, grey, or white in electrostatically painted aluminium
Low Glare Design: UGR as low as 16; designed for visual comfort in task-heavy environments

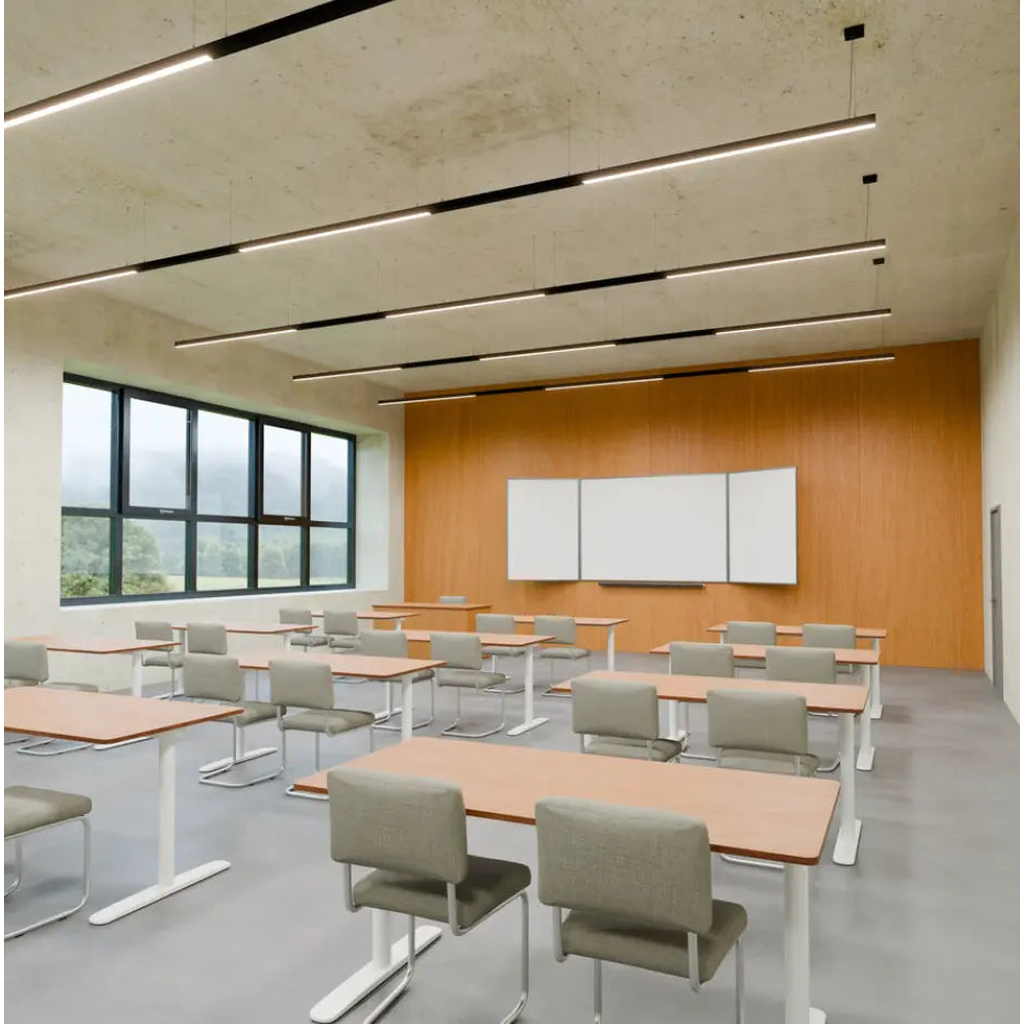

🏢 Ideal Applications: Offices, conference rooms, classrooms, corridors, reception areas, retail environments, and anywhere requiring seamless architectural lighting with optional glare control and high output performance.
✅ Why Specify LS1053? Because flexibility is nothing without performance. LS1053 delivers architectural grade lighting that scales - from breakout zones to boardrooms - with high lumen packages, clean form factors, multiple glare control options, and a build quality ready for serious commercial fit-outs.
